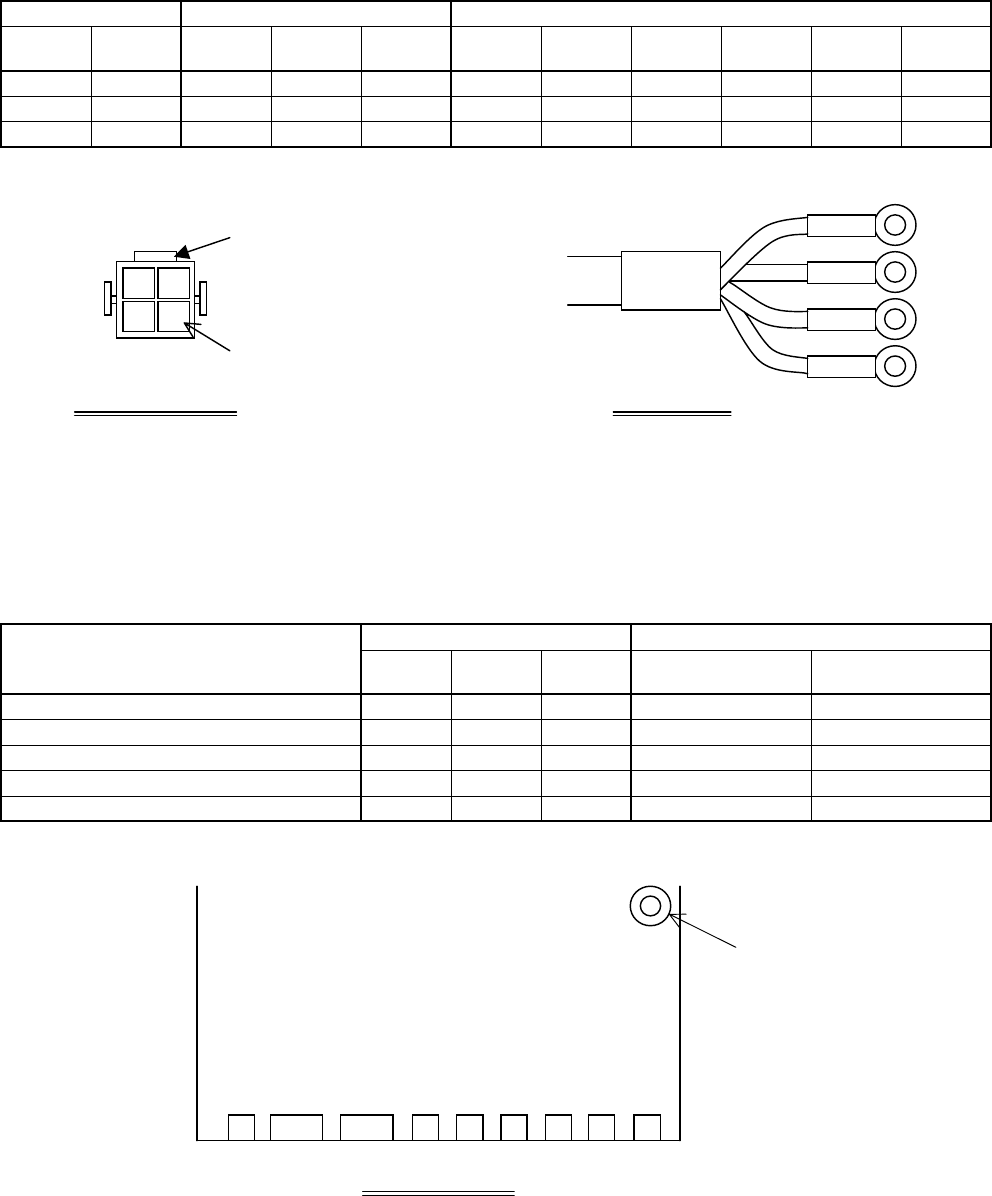

ABSODEX CHECK SHEET FOR RESISTANCE VALUE (For AX2006G, AX2012G, AX2018G, AX4150G, AX4300G, AX4500G) Please measure each resistance value of the direct drive motor according to the chart below. (Each resistance value is a reference value.) 1.Motor coil side Pin number Main body side Driver side Main body side Driver side Judgement AX2006G AX2012G AX2018G AX4150G AX4300G AX4500G 1-2 U-V 58.0+α 22.8+α 17.5+α 7.8+α 4.7+α 4.7+α 1-3 U-W 58.0+α 22.8+α 17.5+α 7.8+α 4.7+α 4.7+α 2-3 V-W 58.0+α 22.8+α 17.5+α 7.8+α 4.7+α 4.7+α Pin array ※ Please measure the resistance value for U、V、W and FG as well (If the resistance value is ∞, it is normal). 2. An angle detection device side Main body side Driver side Judgement Location of the motor circuit board terminal ※ Please measure the continuity between the pin above and FG or the actuator as well (if continuity doesn't occure, it is normal). OSC0-OSC1 Value of Resistance(Ω)Measured value of resistance(Ω) Measured value of resistance(Ω) Motor circuit board terminal name Value of Resistance(Ω) AX2006G, AX2012G, AX2018G AX4150G, AX4300G, AX4500G 6.4+α 6.4+α OSC0-x1sin,OSC0-x1cos OSC0-x132sin,OSC0-x132cos OSC1-x1sin,OSC1-x1cos OSC1-x132sin,OSC1-x132cos 8.3+α 8.3+α 8.3+α 8.3+α 8.3+α 8.3+α 8.3+α 8.3+α Please make sure that the cable is connected to the main body. Driver side U V W FG 1 2 3 4 FG Protrusion Main body side Connector side O S C 0 O S C 1 x1 3 2 si n x1 si n x1 c o s x1 3 2 c o s F G FG N C N C Ver.1/Jul.07.2006 ABSODEX CHECK SHEET FOR RESISTANCE VALUE (For AX4022G, AX4045G, AX4075G) Please measure each resistance value of the direct drive motor according to the chart below. (Each resistance value is a reference value.) 1.Motor coil side Pin number Main body side Driver side Main body side Driver side Judgement AX4022G AX4045G AX4075G 1-6 U-V 23.8+α 14.7+α 14.2+α 1-11 U-W 23.8+α 14.7+α 14.2+α 6-11 V-W 23.8+α 14.7+α 14.2+α Pin array ※ Please measure the resistance value for U、V、W and FG as well (If the resistance value is ∞, it is normal). 2. An angle detection device side Main body side Driver side Judgement AX4075G 6.4+α 8.3+α 8.3+α 8.3+α 8.3+α Location of the motor circuit board terminal ※ Please measure the continuity between the pin above and FG or the actuator as well (if continuity doesn't occure, it is normal). Measured value of resistance(Ω) Value of Resistance(Ω) OSC0-OSC1 OSC1-x1sin,OSC1-x1cos OSC0-x1sin,OSC0-x1cos OSC0-x132sin,OSC0-x132cos Measured value of resistance(Ω) Value of Resistance(Ω) 8.2+α 8.8+α 8.2+α 8.8+α AX4022G, AX4045G 6.8+α OSC1-x132sin,OSC1-x132cos Motor circuit board terminal name Connector side O S C 0 O S C 1 x1 3 2 si n x1 si n x1 c o s x1 3 2 c o s F G FG N C N C Please make sure that the cable is connected to the main body. Driver side U V W FG Main body side ⑤ ⑩⑨ ⑭ ⑦ ⑫ ③ ⑧ ① ⑥ 11 42 13 15 Protrusion FG Ver.1/Jul.07.2006 ABSODEX CHECK SHEET FOR RESISTANCE VALUE (For AX1,AX5, AX8 series) Please measure each resistance value of the direct drive motor according to the chart below. (Each resistance value is a reference value.) 1. Motor coil side Pin number Value of Resistance(Ω) Main body side Driver side Main body side Driver side Judgement AX1022 AX5022 AX1045 AX5045 AX8045 AX1075 AX5075 AX8070 AX1150 AX5150 AX1210 AX5210 A-B U-V 20.0+α 14.2+α 14.2+α 4.7+α 3.7+α A-C U-W 20.0+α 14.2+α 14.2+α 4.7+α 3.7+α B-C V-W 20.0+α 14.2+α 14.2+α 4.7+α 3.7+α Pin array ※ Please measure the resistance value for U、V、W and FG as well (If the resistance value is ∞, it is normal). 2. An angle detection device side Pin number Value of Resistance(Ω) Main body side Driver side Main body side Driver side Judgement AX1022, AX1045, AX5022, AX5045, AX8045 AX1075, AX1150, AX1210, AX5075, AX5150, AX5210, AX8070 B-D 2-4 12.9+α 6.8+α B-F,B-G 2-6,2-8 34.3+α 8.2+α B-J,B-L 2-10,2-12 10.6+α 8.8+α D-F,D-G 4-6,4-8 34.3+α 8.2+α D-J,D-L 4-10,4-12 10.6+α 8.8+α Pin array ※ Please measure the continuity between the pin above and FG or the actuator as well (if continuity doesn't occure, it is normal). Measured value of resistance(Ω) Measured value of resistance(Ω) Please make sure that the cable is connected to the main body. Driver side U V W FG BK+ BK-Main body side Set mark A B CD E F G FG Driver side Set mark Please make sure that the cable is connected to the main body. FG ⑦ ⑭ ① ⑧ ⑬ ⑳ Set mark N P RS T A B C E FH J L M K D G FG Main body side Ver.1/Jul.07.2006 ABSODEX CHECK SHEET FOR RESISTANCE VALUE (For AX2006, AX2012, AX3 series, AX4009, AX4045, AX4075) Please measure each resistance value of the direct drive motor according to the chart below. (Each resistance value is a reference value.) 1.Motor coil side Pin number Value of Resistance(Ω) Main body side Driver side Main body side Driver side Judgement AX2006 AX2012 AX3022 AX4022 AX4009 AX3045 AX3075 AX4075 AX4045 1-6 U-V 52.3+α 23.8+α 20.0+α 23.8+α 17.5+α 14.2+α 14.7+α 1-11 U-W 52.3+α 23.8+α 20.0+α 23.8+α 17.5+α 14.2+α 14.7+α 6-11 V-W 52.3+α 23.8+α 20.0+α 23.8+α 17.5+α 14.2+α 14.7+α Pin array ※ Please measure the resistance value for U、V、W and FG as well (If the resistance value is ∞, it is normal). 2. An angle detection device side Pin number Value of Resistance(Ω) Main body side Driver side Main body side Driver side Judgement AX2006, AX2012 AX4075 4-5 2-4 10.5+α 6.4+α 2-4,3-4 2-6,2-8 22.5+α 8.3+α 4-8,4-9 2-10,2-12 9.0+α 8.3+α 4-7,4-12 2-14,2-16 22.5+α 2-5,3-5 4-6,4-8 22.5+α 8.3+α 5-8,5-9 4-10,4-12 9.0+α 8.3+α 5-7,5-12 4-14,4-16 22.5+α Pin array ※ Please measure the continuity between the pin above and FG or the actuator as well (if continuity doesn't occure, it is normal). 8.2+α 8.8+α 8.2+α 8.8+α AX3022, AX3045, AX3075 AX4009, AX4022, AX4045 Measured value of resistance(Ω) Measured value of resistance(Ω) 6.8+α Driver side Set mark Please make sure that the cable is connected to the main body. FG ⑦ ⑭ ① ⑧ ⑬ ⑳ Please make sure that the cable is connected to the main body. Driver side U V W FG Main body side ⑤ ⑩⑨ ⑭ ⑦ ⑫ ③ ⑧ ① ⑥ 11 42 13 15 Protrusion FG Main body side ⑤ ⑩⑨ ⑭ ⑦ ⑫ ③ ⑧ ① ⑥ 11 42 13 15 Protrusion FG Ver.1/Jul.07.2006 ABSODEX CHECK SHEET FOR RESISTANCE VALUE (For AX4150, AX4300, AX4500) Please measure each resistance value of the direct drive motor according to the chart below. (Each resistance value is a reference value.) 1.Motor coil side Pin number Main body side Driver side Main body side Driver side Judgement AX4150 AX4300 AX4500 1-2 U-V 7.8+α 4.7+α 4.7+α 1-3 U-W 7.8+α 4.7+α 4.7+α 2-3 V-W 7.8+α 4.7+α 4.7+α Pin array ※ Please measure the resistance value for U、V、W and FG as well (If the resistance value is ∞, it is normal). 2. An angle detection device side Pin number Main body side Driver side Main body side Driver side Judgement AX4150, AX4300, AX4500 1-2 2-4 1-3,1-6 2-6,2-8 1-4,1-7 2-10,2-12 2-3,2-6 4-6,4-8 2-4,2-7 4-10,4-12 Pin array ※ Please measure the continuity between the pin above and FG or the actuator as well (if continuity doesn't occure, it is normal). Measured value of resistance(Ω) Measured value of resistance(Ω) 8.3+α Value of Resistance(Ω) 6.4+α 8.3+α Value of Resistance(Ω) 8.3+α 8.3+α Driver side Set mark Please make sure that the cable is connected to the main body. FG ⑦ ⑭ ① ⑧ ⑬ ⑳ Please make sure that the cable is connected to the main body. Driver side U V W FG 1 2 3 4 FG Protrusion Main body side ⑤ ⑧ ③ ⑥④ 7 2 9 Protrusion FG ① Main body side Ver.1/Jul.07.2006 ABSODEX CHECK SHEET FOR RESISTANCE VALUE (For AX2021, AX2042) Please measure each resistance value of the direct drive motor according to the chart below. (Each resistance value is a reference value.) 1.Motor coil side Pin number Main body side Driver side Main body side Driver side Judgement AX2021 AX2042 1-2 U-V 20.0+α 14.2+α 1-3 U-W 20.0+α 14.2+α2-3 V-W 20.0+α 14.2+α Pin array ※ Please measure the resistance value for U、V、W and FG as well (If the resistance value is ∞, it is normal). 2. An angle detection device side Pin number Main body side Driver side Main body side Driver side Judgement AX2021, AX2042 1-2 2-4 10.5+α 1-3,1-4 2-6,2-8 22.5+α 1-5,1-6 2-10,2-12 9.0+α 1-7,1-8 2-14,2-16 22.5+α 2-3,2-4 4-6,4-8 22.5+α 2-5,2-6 4-10,4-12 9.0+α 2-7,2-8 4-14,4-16 22.5+α Pin array ※ Please measure the continuity between the pin above and FG or the actuator as well (if continuity doesn't occure, it is normal). Measured value of resistance(Ω) Measured value of resistance(Ω) Value of Resistance(Ω) Value of Resistance(Ω) Driver side Set mark Please make sure that the cable is connected to the main body. FG ⑦ ⑭ ① ⑧ ⑬ ⑳ Driver side Please make sure that the cable is connected to the main body. U V W FG Main body side Set mark FG 1 2 3 4 Main body side Set mark FG 21 3 4 5 6 7 8 109 Ver.1/Jul.07.2006 ABSODEX CHECK SHEET FOR RESISTANCE VALUE (For AX2021-K, AX2042-K) Please measure each resistance value of the direct drive motor according to the chart below. (Each resistance value is a reference value.) 1.Motor coil side Pin number Main body side Driver side Main body side Driver side Judgement AX2021-K AX2042-K 1-6 U-V 20.0+α 14.2+α 1-11 U-W 20.0+α 14.2+α 6-11 V-W 20.0+α 14.2+α Pin array ※ Please measure the resistance value for U、V、W and FG as well (If the resistance value is ∞, it is normal). 2. An angle detection device side Pin number Main body side Driver side Main body side Driver side Judgement AX2021-K, AX2042-K 4-5 2-4 10.5+α 2-4,3-4 2-6,2-8 22.5+α 4-8,4-9 2-10,2-12 9.0+α 4-7,4-12 2-14,2-16 22.5+α 2-5,3-5 4-6,4-8 22.5+α 5-8,5-9 4-10,4-12 9.0+α 5-7,5-12 4-14,4-16 22.5+α Pin array ※ Please measure the continuity between the pin above and FG or the actuator as well (if continuity doesn't occure, it is normal). Measured value of resistance(Ω) Measured value of resistance(Ω) Value of Resistance(Ω) Value of Resistance(Ω) Driver side Set mark Please make sure that the cable is connected to the main body. FG ⑦ ⑭ ① ⑧ ⑬ ⑳ Please make sure that the cable is connected to the main body. Driver side U V W FG Main body side ⑤ ⑩⑨ ⑭ ⑦ ⑫ ③ ⑧ ① ⑥ 11 42 13 15 Protrusion FG Main body side ⑤ ⑩⑨ ⑭ ⑦ ⑫ ③ ⑧ ① ⑥ 11 42 13 15 Protrusion FG Ver.1/Jul.07.2006 AX2006G, AX2012G, AX2018G AX4150G, AX4300G, AX4500G AX4022G, AX4045G, AX4075G AX1000,AX5000, AX8000 series AX2006, AX2012 AX3000 series AX4009, AX4045, AX4075 AX4150, AX4300, AX4500 AX2021, AX2042 AX2021-K, AX2042-K > /ColorImageDict > /JPEG2000ColorACSImageDict > /JPEG2000ColorImageDict > /AntiAliasGrayImages false /DownsampleGrayImages true /GrayImageDownsampleType /Bicubic /GrayImageResolution 300 /GrayImageDepth -1 /GrayImageDownsampleThreshold 1.50000 /EncodeGrayImages true /GrayImageFilter /DCTEncode /AutoFilterGrayImages true /GrayImageAutoFilterStrategy /JPEG /GrayACSImageDict > /GrayImageDict > /JPEG2000GrayACSImageDict > /JPEG2000GrayImageDict > /AntiAliasMonoImages false /DownsampleMonoImages true /MonoImageDownsampleType /Bicubic /MonoImageResolution 1200 /MonoImageDepth -1 /MonoImageDownsampleThreshold 1.50000 /EncodeMonoImages true /MonoImageFilter /CCITTFaxEncode /MonoImageDict > /AllowPSXObjects false /PDFX1aCheck false /PDFX3Check false /PDFXCompliantPDFOnly false /PDFXNoTrimBoxError true /PDFXTrimBoxToMediaBoxOffset [ 0.00000 0.00000 0.00000 0.00000 ] /PDFXSetBleedBoxToMediaBox true /PDFXBleedBoxToTrimBoxOffset [ 0.00000 0.00000 0.00000 0.00000 ] /PDFXOutputIntentProfile () /PDFXOutputCondition () /PDFXRegistryName (http://www.color.org) /PDFXTrapped /Unknown /Description /FRA /DEU/PTB /DAN /NLD /ESP /SUO /ITA /NOR /SVE/KOR /CHS /CHT >> >> setdistillerparams > setpagedevice
