934 CHAPTER 22

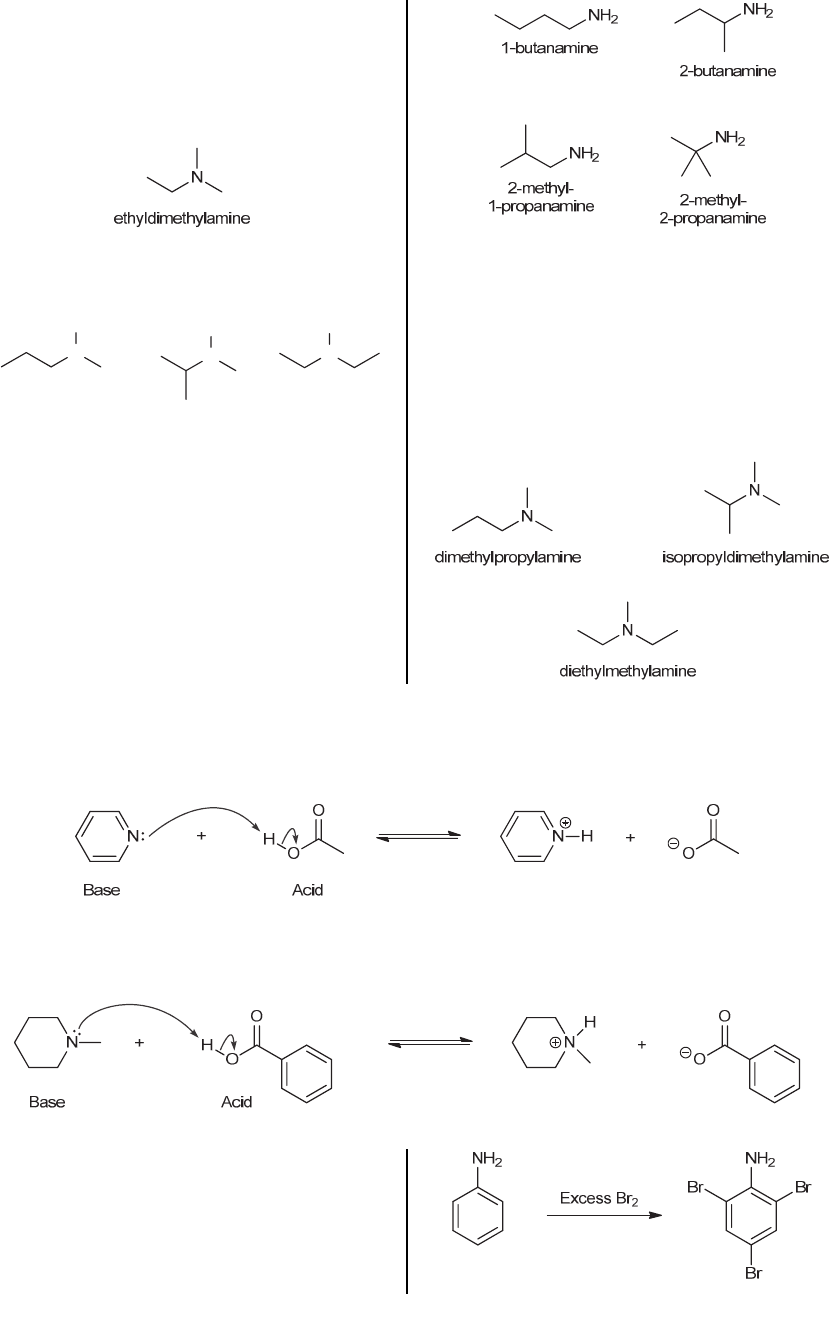

22.41. The molecular formula (C4H11N) indicates no
degrees of unsaturation (see Section 14.16), so all of the
isomers must be acyclic amines. We will methodically
consider all possible primary, secondary, and tertiary
amines. Let’s begin our analysis with tertiary amines.
There is only one isomer that is a tertiary amine:



And there are three isomers that are all secondary
amines:

N
H
diethylamine
N
H
methylpropylamine
N
H
isopropylmethylamine

And finally, there are four isomers that are all primary
amines:



In total, there are eight constitutional isomers with the
molecular formula C4H11N.


22.42. The molecular formula (C5H13N) indicates no
degrees of unsaturation (see Section 14.16), so all of the
isomers must be acyclic amines. The following three
isomers are all tertiary amines (acyclic and fully
saturated), and none of them have a chiral center:



22.43.
(a) The lone pair on pyridine functions as a base and deprotonates acetic acid, giving a pyridinium ion and an acetate
ion, as shown. Two curved arrows must be drawn. The first curved arrow shows the base attacking the proton, and the
second curved arrow shows heterolytic cleavage of the O-H bond:



(b) The tertiary amine functions as a base and deprotonates the carboxylic acid (benzoic acid), giving an ammonium
ion and a benzoate ion, as shown. Two curved arrows must be drawn. The first curved arrow shows the base attacking
the proton, and the second curved arrow shows heterolytic cleavage of the O-H bond:




22.44.
(a) The amino group of aniline is an ortho-para director
and it strongly activates the ring toward electrophilic
aromatic substitution. When treated with excess Br2, we
expect bromination to occur in the two ortho positions
and the para position, giving 2,4,6-tribromoaniline:
