CHAPTER 4 109

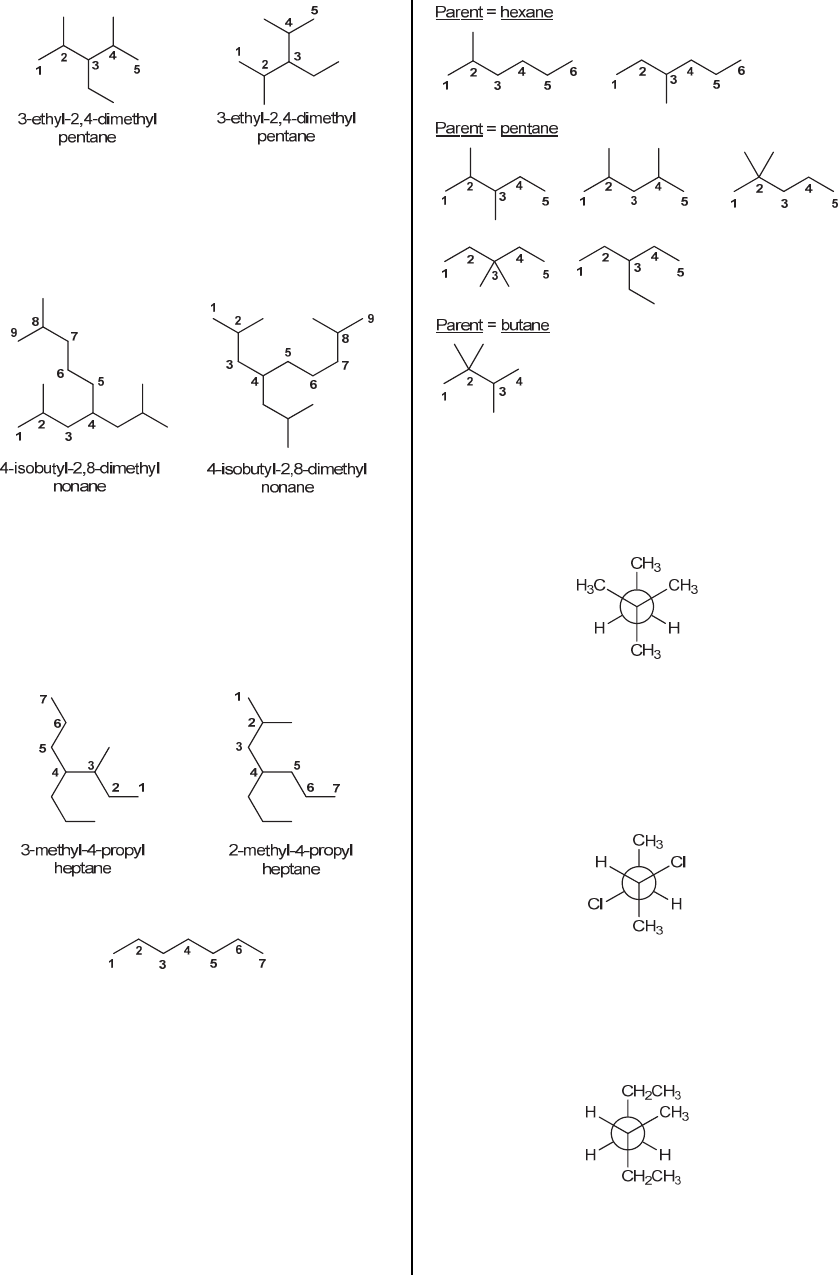

(c) If we assign a systematic name for each of these
structures, we find that they share the same name (4-
isobutyl-2,8-dimethylnonane). Therefore, these
drawings are simply different representations of the same
compound.



(d) We assign a systematic name to each structure, and
find that they have different names (shown below).
Therefore, they must differ in their constitution
(connectivity of atoms). These compounds are therefore
different from each other, but they share the same
molecular formula (C11H24), so they are constitutional
isomers.


4.15. We must draw all of the constitutional isomers of
heptane:


To accomplish the goal, we will follow the same
methodical approach that we used in Problem 4.3. We
begin by drawing all possible substituted hexanes with
the molecular formula C7H16. There are only two
possibilities - the methyl group can be placed at either
C2 or C3. Then, we move on to the pentanes, and finally
any possible butanes. This methodical analysis gives the
following constitutional isomers:



4.16.
(a) When looking from the perspective of the observer
(as shown in the problem statement), the front carbon is
connected to three methyl groups and the back carbon is
connected to one methyl group pointing up.



(b) When looking from the perspective of the observer
(as shown in the problem statement), the front carbon is
connected to a chlorine atom pointing up and to the right,
as well as a methyl group pointing down. The back
carbon atom is connected to a chlorine atom pointing
down and to the left, as well as a methyl group pointing
up.


(c) When looking from the perspective of the observer
(as shown in the problem statement), the front carbon is
connected to a methyl group pointing up and to the right,
as well as an ethyl group pointing down. The back
carbon atom is connected to an ethyl group pointing up.



(d) When looking from the perspective of the observer
(as shown in the problem statement), the front carbon is
connected to a methyl group pointing up. The back
