Specifications
8712/8732/570TM
3º Edition Rev.0
Feb./2009570TM - Flowtube
8712ES - Remote Mounting Transmitter
8732ES - Integral/Remote Field-Style Transmitter

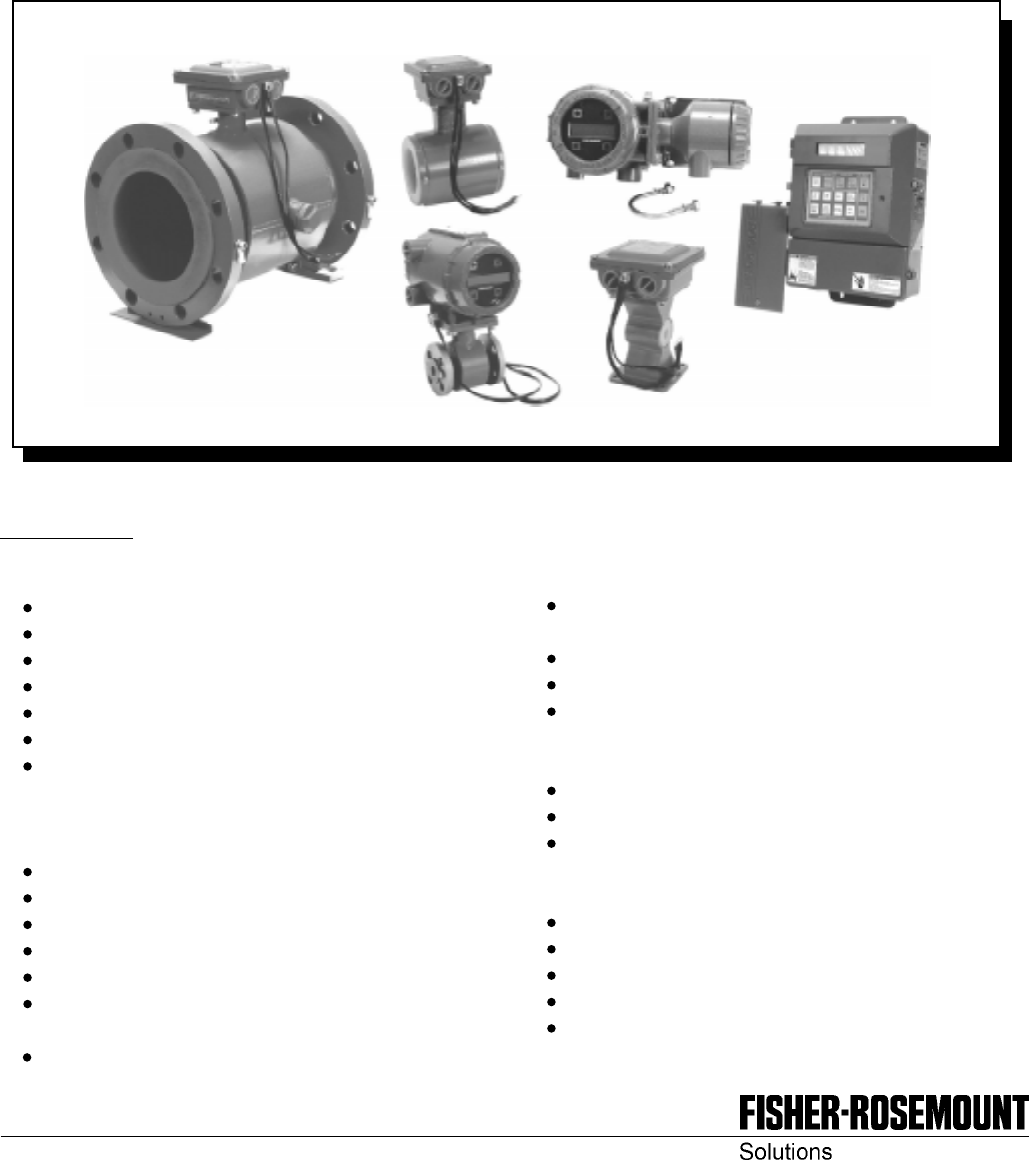

Electromagnetic Flowmeter System
FEATURES
PERFORMANCE
Microprocessor based electronics.
Pulsed-DC excitation.
Accuracy.
User configurable digital filtering.
 Self-Diagnostic.
 Fail alarm.
30Hz excitation frequency for slurries.
FLEXIBILITY
4 a 20 mA output.
Pulse output.
Optional local operator interface.
Backlit LCD display.
Hart communication protocol.
 Configuration by local keyboard or hart
communication.
MAINTENANCE
Dual-compartment (Terminal block and
electronics).
Remote diagnostic.
Non-volatile program memory.
Single-shield twisted cables.
8712 ES ELETRONIC CONSTRUCTION
Remote mounting only.
Non-incendive.
Membrane key local operator interface.
8732ES ELECTRONIC CONSTRUCTION
Local or remote mounting.
Field-style threaded cover.
Explosion-proof.
Optical-type local operator interface.
High thermal stability (characterized).
Optional DIN, JIS Size (32mm, 65mm,125mm)
FUNCTIONAL SPECIFICATIONS
FLOW RATE RANGE
Capable of processing signals from fluids that are
traveling between 0.04 and 30 ft/s (0.01 to 10 m/s) for both
forward and reverse flow in all flowtube sizes. Full scale
continuously adjustable between -30 and 30 ft/s (-10 to 10
m/s).
FLUID CONDUCTIVITY
Fluid must have conductivity of at least 5 microsiemens/
cm (5 micromhos/cm).
POWER SUPPLY
8732: 90-250 Vca (Automatic), or 18-30 Vcc.
8712: 115 or 230 Vca ±10%, or 18-30 Vcc.
POWER CONSUMPTION
8732: 10 Watts
8712: 20 Watts
AMBIENT TEMPERATURE LIMITS (OPERATING).
8732: -40 to 165ºF (-40 a 74ºC)
8712: -20 to 140ºF (-29 to 60ºC) with local operator
interface.
-30 to 150ºF (-34 to 66ºC) without local operator
interface.
AMBIENT TEMPERATURE LIMITS (STORAGE).
-40 to 176ºF (-40 a 80ºC)
LOCAL INDICATION
Rate: Percentage or engineering units.
Total: 8 digits.
KEYBOARD
8712: Set of 15 membrane keys, cover protected.
8732: Set of 4 optical key, activated externally to the
cover glass.
SPECIFICATIONS FOR MAGNETIC FLOW TRANSMITTERS 8712/8732
System Description
2
DISPLAY (BACKLIT LCD)
8732: 2 Lines by characters.
8712: 2 Lines by characters.
OUTPUT SIGNALS
4-20 mA, jumper-selectable as internally or externally
powered; 0 to 1000 ohm load.
Scalable frequency output, 0 to 1000 Hz; transistor switch
closure up to 5.75 W, externally powered, 5 to 24 Vdc.
HART Communications, digital flow signal, superimposed
on 4-20 mA signal, available for control system interface.
SOFTWARE LOCK
A jumper can be selected to prevent changes via keyboard
or hart communicator.
AUTO-DIAGNOSE FUNCTIONS
Parameters are checked and fail/erros are generated.
in events like:
"Electronic fail", "Open coil", "Empty tube", "Out of range"
among others.
AUXILIARY OUTPUT FUNCTION
Transistor switch closure up to 3 W, externally powered,
5 to 24 Vdc, to indicate either:
Reverse Flow - Activates switch closure output when
reverse flow is detected. The reverse flow rate is
displayed.
Zero Flow - Activates switch closure output when flow
goes to 0 ft/s.
POSITIVE ZERO RETURN
Forces the outputs of the transmitter to the zero flow rate
signal level. Activated by applying a contact closure at
terminals 9 and 10.
A Fisher-Rosemount Magnetic Flowmeter System
measures volumetric flow rate by detecting the
velocity of a conductive liquid that passes though a
magnetic field. The system consists of two major
assemblies: 570 TM Magnetic Flowmeter Flowtubes
combined with the Model 8712 or the Model 8732
Magnetic Flowmeter Transmitters.
The flowtube is installed in-line with process piping
- either vertically or horizontally.
Coils located on opposite sides of the flowtube
create the necessary magnetic field. A condutive
liquid moving trough the magnetic field generates a
voltage that is detected by two electrodes.
The transmitter drives the coils to generate the
magnetic field and electronically conditiions the
voltage detected by the electrodes. The transmitter
then produces analog and frequency output signals
proportional to the liquid velocity.
OUTPUT TESTING
Current Source: Transmitter may be commanded to
supply a specified current between 3.75 and 23.25 mA.
Frequency Source: Transmitter may be commanded to
supply a specified frequency between 1 and 1000 Hz.
LOW FLOW CUTOFF
Adjustable between 0.04 and 1 ft/s (0.01 and 0.3 m/s).
Below selected value, output is driven to the zero flow rate
signal level.
HUMIDITY LIMITS
8712: 0-100% RH at 120 ºF (49 ºC), decreases linearly to
10% RH at 130 ºF (54 ºC).
DAMPING
Adjustable between 0.2 and 256 seconds.
OVERRANGE CAPABILITY
Signal output continues to 110% of upper range value
setting, then remains constant. Out of range message
displayed on LOI and the HART Communicator.
STANDARD HAZARDOUS LOCATIONS
CERTIFICATIONS
8712/8732-Factory Mutual (FM) Approval: Approved for
Class I, Division 2, Groups A, B, C and D; Class II,
Division 1, Groups E, F, and G; Class III hazardous
locations. NEMA 4X.
8712/8732-Canadian Standards Association (CSA)
Approval:
Approved for Class I Division 2, Groups A, B, C, and D;
Class II, Division 1, Groups E, F, and G; Class III
hazardous locations, CSA enclosure 4X.
PERFORMANCE SPECIFICATIONS
Accuracy (combined with 570TM)
Pulse output:
3
Analog output : Same pulse output accuracy plus 0,1% of
the calibrate span.
REPEATABILITY
±0,1% of rate.
STABILITY
±0,1% of rate over six months.
AMBIENT TEMPERATURE EFFECT
8732: ±0.25% over operating temperature range.
8712: ±0.1% per 100 ºF(37,8 ºC).
RFI/EMC EFFECT
8732: Complies with the increased requirements from the
NAMUR Recommendations: May 1993, Part 1.
8712: Class 1, A, B, C : ±0.5% of span at 3 V/m per SAMA
PMC 33.1.
SUPPLY VOLTAGE EFFECT
Transmitter meets supply voltage effect requirements of
SAMA PMC 31.1, Section 5.10.1 through 5.10.5.
Transmitter withstands surges in supply voltage as
specified in IEEE 472, 1974.
VIBRATION EFFECT
8732: Meets IEC 770
8712: Meets SAMA PMC 31.1, Nível 2.
PHYSICAL SPECIFICATIONS
ELECTRICAL CONNECTIONS
 ¾ × 14 NPT connections provided on the base of the
transmitter.
MOUNTING
 Transmitter may be either mounted integrally with the
flowtube or remotely up to 1,000ft (305m)from the flowtube.
TRANSMITTER-TO-FLOWTUBE WIRING
 Single conduit carries two shielded twisted pairs:
Coli Drive- 14AWG, Belden 8720, Alpha 2442, or equivalent.
Signal- 20 AWG, Belden 8762, Alpha 2411, or equivalent.
Combination Cable- Meets specifications of signal and
coil drive cables.
LINE POWER FUSES
8712: 1A@115VCA, 0.5A@230VCA and 3A@10-30Vcc.
MATERIALS OF CONSTRUCTION
Housing: Low-copper aluminum, NEMA 4X and IEC 529
IP65.
Paint: Polyurethane.
Weight (with/without LOI)
8732: 3.7kg / 3.2kg.
8712: 4.5kg / 4.0kg.
eziS
)ni(mm
seiticoleV
)s/m
ycaruccA
)etarfo%(
0.8~5.2
)"3.0~1.0(
01a5.0 5.0±
5.0a10.0 )s/m(V/52.0±
006~51
)"42~2/1(
01a3.0 5.0±
3.0a10.0 )s/m(V/51.0±
007≥
)″82(
01a5.0 1±
5.0a10.0 )s/m(V/5.0±
TRANSMITTER DIMENSION
DRAWINGS - 8712 ES (mm)
TRANSMITTER DIMENSION
DRAWINGS - 8732 ES (mm)
TRANSMITTER 8732 ES REMOTE MOUNTING
4
HAZARDOUS LOCATIONS CERTIFICATIONS
Standard: IEC Ex d IIC T6 and IP65.
Optional: IEC EX d IIC T6 and IP68.
FINISHING
IP65 - Standard (weather proof): Epoxy / Polyamide.
IP68 - Submersible / Buried: Coal tar.
NON-WETTED MATERIALS:
LINE SIZES: 0,1"(2,5mm) to 1/2"(15mm)
Inner pipe: Stainless steel 304
Housing: Stainless steel 430F
LINE SIZES: 1"(25mm) to 8"(200mm)
Inner pipe: Stainless steel 304.
Housing: Carbon steel.
LINE SIZES: 10"(250mm) to 80"(2000mm)
Inner pipe: Stainless steel 304.
Housing: Carbon steel.
Flanges: Carbon or stainless steel.
Terminal box and cover: Aluminum alloy.
PROCESS-WETTED MATERIALS:
LINER: Teflon PFA DN £ 350mm.
Teflon PTFE DN ³ 250mm.
Polyurethane DN ³ 40mm.
Neoprene DN ³ 250mm.
ELECTRODE: 316 SS, Hastelloy B or C, Titanium, Zirco-
nium, Tantalum, Stellite6 and Platinum.
(Optional removable electrodes for DN £
200mm)
PROTECTION / GROUDING RING: (Option).
SS (AISI304 or 316), Hastelloy (B or C) and
Titanium.
ELECTRODE INSERTION: External or internal for PFA,
polyurethane and neoprene.
Internal for PTFE.
COIL DRIVE: Via transmitter.
GROUNDING: class 3 ( £ 100 ohms).
REMOTE TRANSMITTER CABLE
ELECTRODES: 2 × 20 AWG (shielded).
COILS: 2 × 14 AWG (shielded).
MAX LENGTH: 300m - 6 Hz (frequency).
100m - 30Hz (frequency).
MAGNETIC FLOW TRANSMITTER SPECIFICATIONS
5
FLOW VS.VELOCITY TABLE
PRESSURE AND TEMPERATURE LIMITS
The diagram "Pressure Vs Temperature" shows limitations of standard flowtubes. Pressure higher than 20 Kgf/cm2 under
consult.
muminiM
wolferusaeM
)h/³m(
)h/³m(egnaRwolF
muminiM mumixaM tinU
.coleV
)mm(nI
2210,0
s/m
8403,0
s/m
441,9
s/m
0.1
s/m
)51("2/1 16800,0 512,0 454,6 107,0
)52("1 5420,0 16,0 63,81 10,2
)04("2/11 6750,0 44,1 42,34 37,4
)05("2 1590,0 83,2 72,17 97,7
)08("3 902,0 2,5 751 2,71
)001("4 163,0 0,9 4,072 5,92
)051("6 818,0 4,02 6,316 1,76
)002("8 714,1 53 3601 611
)052("01 332,2 65 5761 381
)003("21 202,3 08 2042 262
)053("41 238,3 69 4782 413
)004("61 400,5 521 3573 014
)054("81 433,6 851 1574 915
)005("02 378,7 791 5095 546
)006("42 83,11 582 0458 339
)007("82 17,51 093 03811 0921
)057("03 22,81 064 07631 4941
)008("23 28,02 025 05651 0171
)009("63 66,62 076 00002 7812
)0001("04 50,33 038 09842 0272
)0011("24 83,73 039 04082 6603
)0021("84 31,94 0321 05863 9204
)0531("45 81,26 0551 04664 0015
)0041("65 07,66 761 01005 0745
)0051("06 77,67 0291 08575 7926
)0061("46 55,78 0912 09656 0817
)0081("27 53,111 0872 00538 0319
)0002("08 38,731 0043 005301 00311
.retemwolf"2arof:elpmaxE
h/l59:elbarusaemmuminiM
h/³m83,2:egnarmuminiM
h/³m97,7:egnars/m1
h/³m4,32:)s/m3(egnarlacipyT
80-075IBh/³m72,17:egnarmumixaM
seiticolevlamroN-ediugnoitceleS
)s/tF( )s/m(
lamroN 02-2 1.6-6.0
evisarbA 51-5 6.4-5.1
range
liquid
muminiM
elbarusaem
)h/l(wolf
)h/l(egnaRwolF
muminiM mumixaM tinU
.coleV
)mm(nI
2210,0
s/m
8403,0
s/m
441,9
s/m
0.1
s/m
)5,2("01,0 222,0 65,5 7,661 2.81
)0,4("51,0 994,0 5,21 2,573 0.14
)0,8("03,0 99,1 9,94 0,0051 0,461
 FLOWTUBES DIMENSIONAL DRAWINGS
6
Wafer flowtube Flanged flowtube
Sanitary Flowtube (ISO 2853)Sanitary Flowtube (ISO 2852)
7
TERMINAL BLOCK FOR
TRANSMITTER MODEL 8712 ES
WIRING BETWEEN FLOWTUBLE 570TM (REMOTE) AND TRANSMITTER 8732 ES (REMOTE)
NOTES:
1 - Flowtubes between 0.1" and 0.5" mounts between a 0.5" flange.
Flowtubes between 0.1" and 0.5" allow mounting between flanges ANSI B16.5 classes 150#, 300#, 400# and
600#.
2 - Flowtubes between 1" and 8" can be mounted between flanges ANSI B16.5 classes 150#, 300#, 400# and 600#
exept for 2" wich allows only class 150#.
3 - Drilling dimensions for AWWA classe D (175-150#) and ANSI B16.5 class 150# are the same up to 24".
4 - Drilling dimensions for DIN 2501 PN10 and NBR7675 PN10, are the same as ISO 2531 PN10.
5 - Dimension "A" doesn't include protection / grounding rings.
6 - Tolerances not indicated ± 1%.
TERMINAL BLOCK FOR
TRANSMITTER MODEL 8732 ES (INTEGRAL)
MAGNÉTIC FLOWTUBE
DIAMETRO NOMINAL (mm)
2,5; 4; 8; 15; 25; 32; 40; 50; 65; 80; 100; 125; 150; 200;
250; 300; 350; 400; 450; 500; 600; 750, 900; 1100;
1200; 1350; 1500. Others diameters= XXX
DESIGN LEVEL
ELECTRODE MATERIAL
SS 316 --------------------------------- (SS) Hastelloy B ------------------------- (HB)
Hastelloy C ---------------------------- (HC) Titanium ----------------------------- (TI )
Zirconium ------------------------------ (ZI ) Tantalum ---------------------------- (TA)
Platinum -------------------------------- (PT) Stellite -------------------------------- (ST)
Othres ---------------------------------- (XX)
PROCESS CONNECTION
Wafer (s/flange,DN£200) -------- (W) Flanged ------------------------------ (F)
Sanitary -------------------------------- (S) Othres ------------------------------- (X)
PRESSURE CLASS
ANSI 150 --------------------------- (2) AWWA note3 page7 ----------- (6)
 300 --------------------------- (3) Tri-Clamp (ISO2852) ------------ (7)
 DIN PN10 ------------------------- (4) IDF (ISO2853) --------------------- (8)
(ISO) PN16 ------------------------- (5) JIS 10K ----------------------------- (X)
FLOWTUBE FLANGE MATERIAL
Carbon steel (³ 250 mm) ------- (A) SS 304 (³ 250 mm) ------------ (B)
SS 316 (³ 250 mm) --------------- (C) Wafer (£ 200 mm) -------------- (S)
Others ---------------------------------- (X)
GROUNDING / PROTECTION RINGS
No ring --------------------------------- (1) SS 304 ------------------------------ (2)
Hastelloy B ---------------------------- (3) Hastelloy C ------------------------- (4)
Titanium -------------------------------- (5) SS 316 ------------------------------ (6)
Others ---------------------------------- (X)
Fisher-Rosemount do Brasil Indústria e Comércio Ltda
Av.Hollingsworth, 325 Iporanga - Sorocaba - S.P - Brazil
CEP.18087-000 Fone: 55+15+238.3788 Fax: 55+15+228.3300
ELECTROMAGNETIC TRANSMITTER
M O D E L 87 12ES 87 32ES
M o un ting
R em ote m o un t
In tegra l m ount
N on-vo latile Tota lize DA1
Lo cal O pe ra to r In terfa ce M 4
Transient P rotection C ircuit
Outputs
11 5 Vac
O ptio ns
90 -2 50 Vac
18 a 30 Vdc
T1
 03
 A1
 24
 E7
 R1
P ow e r
S up ply
The Fisher-Rosemount of Brazil has right to do modifies without previous notice
OPTIONS
·Aditional grounding electrode ----------------------------------------------------------------------------------------------- (A)
·Bullet nose electrodes tips (DN ³ 25) ---------------------------------------------------------------------------------- (S)
·Removable electrode (DN ³ 40mm) -------------------------------------------------------------------------------------- (P)
·Submersion / buried application (IP 68) -------------------------------------------------------------------------------- (M)
CModel: 570TM
LINER
Neoprene (DN ³ 250mm) -------- (4) Polyurethane (DN ³ 40mm) -- (5)
Teflon PFA ( DN £ 350mm) ------- (6) Teflon PTFE (DN ³ 250mm) -- (7)
Others ---------------------------------- (X)
{
{
