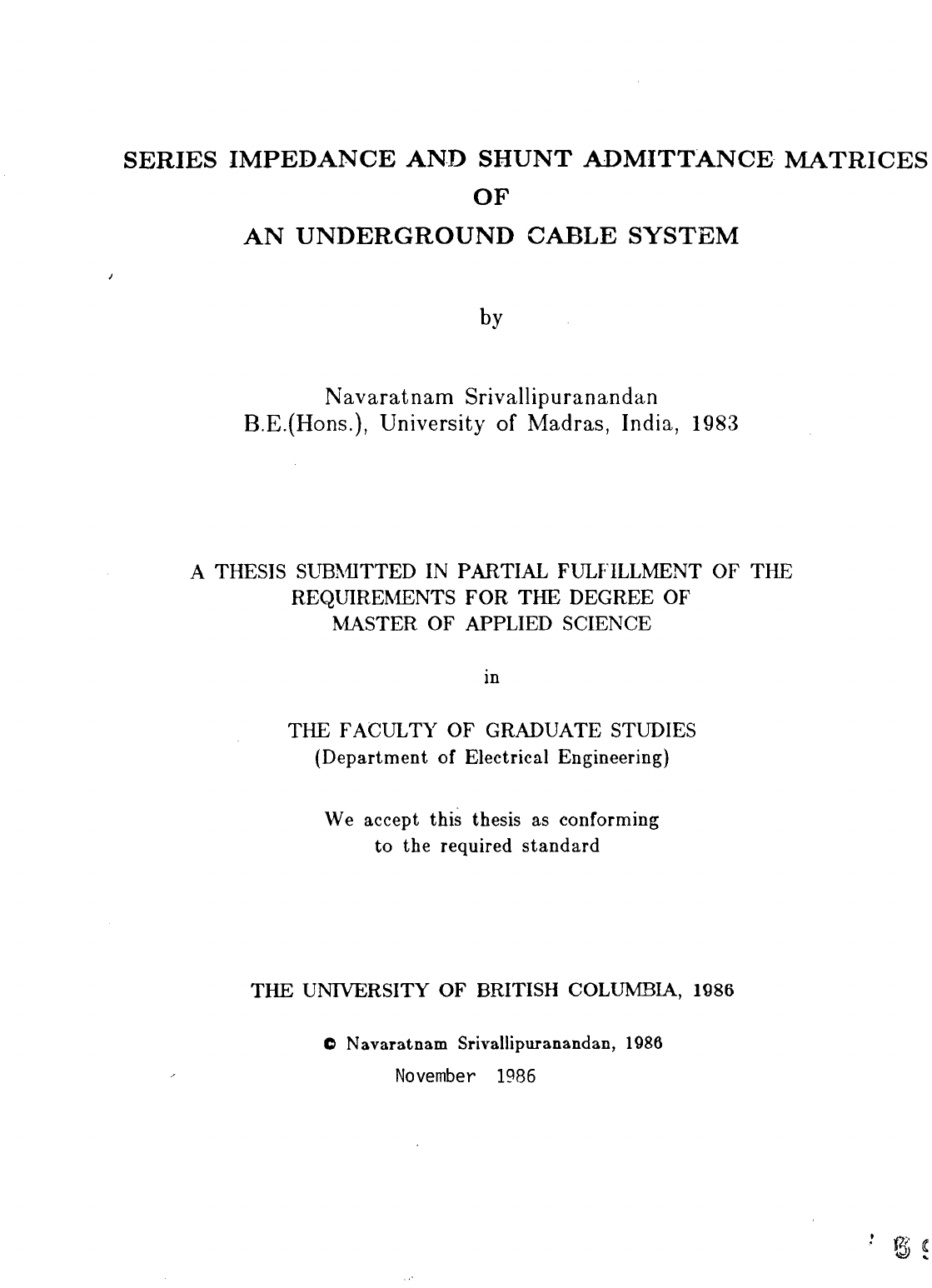

SERIES IMPEDANCE AND SHUNT A D M I T T A N C E MATRICES
OF
A N UNDERGROUND C A B L E SYSTEM
by
Navaratnam Srivallipuranandan
B.E.(Hons.), University of Madras, India, 1983
A THESIS SUBMITTED IN P A R T I A L F U L F I L L M E N T OF T H E
R E Q U I R E M E N T S F O R T H E D E G R E E O F
M A S T E R OF APPLIED S C I E N C E
in
T H E F A C U L T Y O F G R A D U A T E STUDIES
(Department of Electrical Engineering)
We accept this thesis as conforming
to the required standard
T H E UNIVERSITY O F BRITISH COLUMBIA, 1986
C Navaratnam Srivallipuranandan, 1986
November 1986
In presenting t h i s thesis i n p a r t i a l f u l f i l m e n t of the
requirements for an advanced degree at the University
of B r i t i s h Columbia, I agree that the Library s h a l l make
i t f r e e l y available for reference and study. I further
agree that permission for extensive copying of t h i s thesis
for scholarly purposes may be granted by the head of my
department or by h i s or her representatives. I t i s
understood that copying or publication of t h i s thesis
for f i n a n c i a l gain s h a l l not be allowed without my written
permission.
Department of
The University of B r i t i s h Columbia
1956 Main Mall
Vancouver, Canada
V6T 1Y3
Date
6 n /8'i}
SERIES I M P E D A N C E A N D S H U N T A D M I T T A N C E M A T R I C E S
O F A N U N D E R G R O U N D C A B L E
ABSTRACT
This thesis describes numerical methods for the: evaluation of the series
impedance matrix and shunt admittance matrix of underground cable
systems. In the series impedance matrix, the terms most difficult to
compute are the internal impedances of tubular conductors and the
earth return impedance. The various form u hit- for the interim!'
impedance of tubular conductors and for th.: earth return impedance
are, therefore, investigated in detail. Also, a more accurate way of
evaluating the elements of the admittance matrix with frequency
dependence of the complex permittivity is proposed.
Various formulae have been developed for the earth return
impedance of buried cables. Using the Polhiczek's formulae as the
standard for comparison, the formula of Ametani and approximations
proposed by other authors are studied. Mutual impedance between an
underground cable and an overhead conductor is studied as well. The
internal impedance of a laminated tubular conductor is different from
that of a homogeneous tubular conductor. Equations have been
derived to evaluate the internal impedances of such laminated tubular
conductors.
( i i )
Table of Contents
Abstract — - - - l i
Table of Contents - i i j
List of Table - •• - V
List of Figures - -:— VI
List of Symbols - V i i i
Acknowledgement , - •- i x
1. I N T R O D U C T I O N .—.: . 1
2. SERIES I M P E D A N C E A N D S H U N T A D M I T T A N C E M A T R I C E S
2.1 Basic Assumptions 6
2.2 Series Impedance matrix [Z] for N Cables in Parallel 7
2.2.1 Submatrix [Z„] 9
2.2.2 Skin Effect 13
2.2.3 Internal Impedance of Solid and Tubular Conductors 14
2.2.4 Submatrix [Z,-yJ - •• 15
2.2.4.1 Proximity Effect 16
2.2.4.2 Proximity Effect of a Single-Phase Circuit of Two Identical
Conductors 17
2.2.4.3 Shielding Effect of the Sheath 17
2.2.4.4 Elements of Submatrix [Z„] 19
2.3 Shunt Admittance Matrix [K]; for N Cables in Parallel 22
2.3.1 Leakage Conductance and Capacitive Suceptance 22
2.3.2 Frequency Dependence of the Complex Permittivity 23
2.3.3 Submatrix 27
2.4 Conclusion 29
3. C O M P A R I S O N O F I N T E R N A L I M P E D A N C E F O R M U L A E
3.1 Exact Formulae for Tubular Conductors -•- 30
3.2 Internal Impedance of a Solid Conductor ..— 31
3.3 Internal impedance of a Tubular Conductor ; 36
3.4 Conclusion — -•- 47
( i i i )
4. E A R T H R E T U R N I M P E D A N C E
4.1 Earth Return Impedance of Insulated Conductor 50
4.2 Earth Return Impedance in a Homogeneous Infinite Earth 50
4.3 Earth Return Impedance in a Homogeneous Semi-Infinite Earth 52
4.4 Formulae used by Ametani, Wedepohl and Semlyen 57
4.5 Effect of Displacement Current Term and Numerical Results 61
4.6 Cable Buried at Depth Greater than Depth of Penetration 64
4.7 Mutual Impedance between a Cable Buried in the Earth and an Over-
head Line or vice versa 67
4.8 Conclusion - 69
5. L A M I N A T E D T U B U L A R C O N D U C T O R S
5.1 Internal Impedance of a Laminated Tubular Conductor 70
5.1:1 Internal Impedance with External Return 70
5.1.2 Internal Impedance with Internal Return 72
5.2 Application to Gas-Insulated Substations 73
5.2.1 Case i: Core and Sheath not Coated 74
5.2.2 Case ii: Only Sheath Coated 74
5.2.3 Case iii: Only Core Coated 76
5.2.4 Case iv: Both Core and Sheath Coated 77
5.2.5 Stainless Steel Coating 79
5.2.6 Supermalloy Coating 82
5.2.7 Comparison between Stainless Steel and Supermalloy Coatings
82
5.3 Conclusion 85
6. T E S T C A S E S
6.1 Single-Core Cable 86
6.2 Three-Phase Cable 91
6.3 Shunt Admittance Matrix 93
7. C O N C L U S I O N 94
A P P E N D I X A 96
A P P E N D I X B : 98
A P P E N D I X C 103
A P P E N D I X D 106
R E F E R E N C E S : 114
(Iv);
List of Tables
3.1 Internal Impedance of a Solid Conductor 33
3.2 Internal Impedance Za of a Tubular Conductor 38
3.3 Mutual Impedance (Za(,) of a Tubular Conductor with Current Return-
ing Inside 43
3.4 Internal Impedance Zy of a Tubular Conductor with Current Returning
Outside -. , 44
4.1 Solution of PoIIaczek's Equation by Numerical Integration and Using
Infinite Series 58
4.2 Earth Return Self Impedance with and without Displacement Current
Term .' 1 61
4.3 Earth Return Self Impedance as a Function of Frequency 64 '•
5.1 Resistivity and Relative Permeability of Coating Materials 79
5.2 Skin Depth of Stainless Steel 79
5.3 Skin Depth of Supermalloy 82
6.1 Impedances of Single Core Underground Cable 87
6.2 Mutual Impedance between Two Cables with Burial Depth of 0.75m
and Separation of 0.30m 91
(V)
List of Figures
1.1 Potential Difference V, between Core and Sheath and F 2 between
Sheath and Earth 3
2.1 Basic Single Core Cable Construction 7
2.2 Loop Currents in a Single Core Cable 9
2.3 Potential Difference between Two Concentric Conductors 10
2.4 Three Conductor Representation of a Single Core Cable : 10
2.5 Sheath with Loop Currents Ix and I2 ... •- 15
2.6 Two Cable System , -. 16
2.~! Circuit Arrangement of Primary, Secondary and Shielding Conductors,
with Shielding Conductor Grounded at Both Ends".. 18
2.8 Transmission System Consisting of a Single Conductor and a Cable
; 21
2.9 Cross-Section of a Coaxial Cable 23
2.10 (a),(b) - Measurements of e'(<o) and ("(<*) of an OiMmpregnated Test
Cable at 20°cC 24
2.11 Values of e'(o>) and «"((•)) Obtained from the Empirical Formula
26
2.12 Polarization-Time Curve of a Dielectric Material 27
3.0 Loop Currents in a Tubular Conductor 30
3.1 (a),(b) - Impedance of a Solid Conductor as a Function of Frequency
3.2 (a),(b) - Errors in Wedepohl's and Semlyen's Formulae for a Solid
Conductor 35
3.3 Cross-Section of a Tubular Conductor 30
3.4 (a),(b) - Impedance Za of a Tubular Conductor (with Internal Return):
as a Function of Freqency 39
3.5 Errors in Wedepohl's, Schelkunoff's and Bianchi's Formulae for Za
40
3.6 Errors in Wedepohl's and Schelkunoff's Formulae for Zab 42
3.7 (a),(b) - Impedance Zb of Tubular Conductor (with External Return)
as a Function of Frequency ..' 45
3.8 Errors in Wedepohl's, Schelkunoff's and Bianchi's Formulae for Zb
:.. „ , 46
4.1 Electric Field Strength at Point P 51
4.2 Error in Replacing a Conductor of Finite Radius by a Filament Con-
ductor —-- 53
4.3 Solution of Real and Imaginary Part of Equation (4.9),for a
Freqency of 1MHz. > - - «... 56
4.4 Relative Error in the Evaluation of Carson's Formulae with an
Asymptotic Expansion 59
(vi)
4.5 Error in the Earth Return Self-Impedance if the Displacement
Current is Ignored 62
4.6 (a),(b) - Earth Return Self Impedance as a Function of Freqency
, 65
4.7 Errors in Earth Return Self Impedance 60
4.8 Differences in Resistance Values of Semi-Infinite and Infinite Earth
Return Formulae : 68
5.1 (a),(b) - Numbering of Conductor Layers to Find the Internal
Impedances of a Laminated Tubular Conductor 71
5.2 Representation of the nt th Layer 71
5.3 Core and Sheath not coated 74
5.4 Inner Surface of the Sheath only, Coated 75
5.5 Core Alone Coated 76
5.6 Core as well as Inner Surface of the Sheath Coated 77
5.7 Dimensions of the Bus Duct in a Gas-Insulated Substation <• 78
5.8 (a),(b) - Variation of Resistance; and Inductance with Frequency for
the Four Cases; Stainless Steel Coating, Thickness, 0.1mm 80
5.9 (a),(b) - Variation of Resistance and Inductance with Freqency for the
Four Cases; Stainless Steel Coating, Thickness 0.5mm 81
5.10 (a),(b) - Variation of Resistance and Inductance with Freqency for
the Four Cases; Supermalloy Coating, Thickness 0.01mm 83
5.11 (a),(b) - Variation of Resistance and Inductance with Frequency for
the Four Cases; Supermalloy Coating, Thickness 0.05mm 84
6.1 Errors in Ametani's and Wedepohl's Approximations in Zcc 88
6.2 Errors in Ametani's and Wedepohl's Approximations in Zgc 89
6.3 Errors in Ametani's and Wedepohl's Approximations in Zef 90
6.4 Errors in Ametani's and Wedepohl's Approximations in the Mutual
Impedance between Two Cables 92
A.l Three-Phase Cable Set-up for the Study 96
A. 2 Basic Construction of Each Single Core Cable 96
B. l The Relative Directions of the Field Components in a Coaxial
Transmission Line 98
B. 2 Loop Currents in a Tubular Conductor 101
C. 1 Representation of a Buried Conductor in an Infinite Earth 104
D. l Current Carrying Filament in the Air 106
D.2 Current Carrying Filament Buried in the Earth I l l
( V i i )
L I S T O F SYMBOLS
E — electric field strength,
H = magnetic field strength
/ = frequency,
IT = 3.1415926
(o = 27rX /, angular frequency
— 1, complex operator
fi0 = 4JTX 10 - 7, absolute permeability of free space
/xr, — relative permeability of the medium i
t*i ~ / io x / i r i> total permeability of the medium «
7 = Euler's constant
p, = resistivity of a particular medium t
€,((o) = €, — complex dielectric constant or permittivity of a particular
medium »
<j> = flux density
/ = current
J — current density
c,exp = exponential
In = natural logarithm
( joy/ty 1
m, — |:- — o> fi^t- | , known as intrinsic propagation constant of a particu-
lar medium t. If the displacement currents are ignored, then the
( joi / i , I
value of m is equal to I I . Displacement currents are ignored unless li Pi J
otherwise specified
/„ = modified Bessel function of the 1st kind and of the nth order
Kn — modified Bessel function of the 2nd kind and of the nth order
K — characteristic impedance
F = propagation constant
T = relaxation time of a dielectric
R = resistance per unit length
L = inductance per unit length
G = conductance per unit length
C — capacitance per unit length
Y = shunt admittance matrix
Z = series impedance matrix
(viii)
Acknowledgements
I would like to acknowledge my appreciation to Dr. H. W. Dommel for his
encouragement and supervision throughout the course of this research.
I would also like to thank Mrs. Guangqi Li, Mr. Luis Marti and Mr. C. E.
Sudhakar for their many valuable suggestions.
Thanks are due to Mrs. Nancy Simpson for typesetting the manuscript.
The financial support of Bonneville Power Administration, Portland, Oregon,
U.S.A., and from my brother "Anna" is gratefully acknowledged.
(ix)
-1-
1 . INTRODUCTION
Underground cables are used extensively for the transmission and distribution of electric
power. Although expensive when compared with overhead transmission, laying cables under-
ground is often the only choice in urban areas. As the urban areas expand, the cable circuits
tend to increase in length. At present, cable circuits are being employed which have lengths of
the order of 100km. With an increase in system lengths and higher system voltages, the
induction effects on nearby communication circuits are becoming more important. Also, for
the power system itself, the steady-state and transient behaviour of underground cables must
be known. For interference studies as well as for power system studies, methods for finding
cable parameters over a range of frequencies are, therefore, needed.
The transmission characteristics of an underground cable circuit or submarine cable cir-
cuit are determined by their propagation constant T, and characteristic impedance /<", which
may be calculated for an angular frequency w from the following equations
F = V(K + j<aL)(G + juC) (1.1a)
K = V{R + joiL)/(G + j<aC) (1.1b)
Where R,L,G and C are the four fundamental line parameters, i.e., resistance, inductance,
conductance and capacitance per unit length. These cable parameters are therefore the basic
data for all interference and power system studies.
Cables are principally classified based on
i) their location, i.e., aerial, submarine and underground
ii) their protective finish, i.e., metallic (lead, aluminium) or non-metallic (braid)
iii) the type of insulation, i.e., oil-impregnated paper, cross linked polyethylene (XLPE) etc.
iv) the number of conductors, i.e., single conductor, two conductors, three conductors and so
on.
In this thesis, a single conductor aluminium cable with a concentric lead sheath and with
insulation of either oil impregnated paper or XLPE is studied in detail (refer to Appendix A).
The series impedance and shunt admittance matrices of a cable system made up of N
cables, can be written as
- 2 -
Z =
(Z 2 1 | ( zd • • • 1*8*1
a n d
Y =
(nil p y
" l*/w]
1*2*1
PAWI
(1.2a)
(1.2b)
S u b m a t r i x [Z„\ a l o n g the d i a g o n a l o f m a t r i x [Z\ is t h e se l f i m p e d a n c e o f c a b l e i w h i c h c a n
be w r i t t e n as
Z„ =
Zw Zc.s.
zsic{ zs.s.
(1.3)
w h e r e
Zc.c = se l f i m p e d a n c e o f the c o r e o f c a b l e i"
Zc.s. = Zs;c.= m u t u a l i m p e d a n c e b e t w e e n t h e c o r e a n d the s h e a t h o f c a b l e »
.7j s = se l f i m p e d a n c e o f the s h e a t h o f c a b l e i
T h e o f f - d i a g o n a l s u b m a t r i x 2,; is t h e m u t u a l i m p e d a n c e b e t w e e n t h e c a b l e i a n d c a b l e j w h i c h
c a n be w r i t t e n as
(1.4)
w h e r e
Zee = m u t u a l i m p e d a n c e b e t w e e n t h e c o r e o f t h e c a b l e i a n d c o r e o f t h e c a b l e j
Zci - m u t u a l i m p e d a n c e b e t w e e n t h e c o r e o f t h e c a b l e i a n d t h e s h e a t h o f t h e c a b l e j
z..t. = m u t u a l i m p e d a n c e b e t w e e n t h e s h e a t h o f c a b l e i a n d t h e c o r e o f t h e c a b l e j
ZSi = m u t u a l i m p e d a n c e b e t w e e n t h e s h e a t h o f t h e c a b l e t a n d t h e s h e a t h o f the c a b l e j
E v a l u a t i o n o f a l l t h e s e e l e m e n t s ; o f s u b m a t r i c e s [Z„\ a n d \Ztj\ i s , i n g e n e r a l , n o t e a s y . T h e
b e s t a p p r o a c h s e e m s t o be t h e o n e p r o p o s e d b y W e d e p o h l [22] b a s e d o n t h e e a r l i e r w o r k d o n e
b y S c h e l k u n o f f [6]. B o t h a u t h o r s f i n d t h e s e i m p e d a n c e s f r o m t h e l o n g i t u d i n a l v o l t a g e d r o p s in
t h e c o r e a n d s h e a t h , [Z = V/J). T h e s e l o n g i t ud i n a l v o l t a g e d r o p s c a n be o b t a i n e d f r o m t h e
p o t e n t i a l d i f f e r e n c e V , - b e t w e e n t h e c o r e a n d t h e s h e a t h a n d t h e p o t e n t i a l d i f f e r e n c e
- 3 -
between the sheath and the earth, as shown in Figure 1.1.
The potential differences V1 and V 2 can be expressed as a function of the loop currents /j
and J 2 with the help of Schelkunoff's theorems. (Appendix B)
For finding the elements of the shunt admittance matrix, it is a usual practice (22,23,27]
to assume the permittivity of the insulation to be a real constant. In reality, the value of the
permittivity is a frequency-dependent complex value, the real part of which accounts for the
susceptance term and the imaginary part accounts for the conductance term. Therefore, it is
necessary to find a general expression for the permittivity as a function of frequency.
Chapter 2 discusses, in detail, the following topics:
i) Formation of series impedance and shunt admittance matrices,
ii) Wedepohl's approach for finding the elements of the series impedance matrix,
iii) Frequency-dependence of the permittivity constant
iv) Proximity effect and shielding effect in the evaluation of the mutual impedance subma-
trix Z,r
As explained in Appendix B, the potential differences V, and V2 can be evaluated in terms
of loop currents /, and I2 using SchelkunofTs theorem. For example, the potential difference Vl
can be written as
- 4 -
V, = (Zctt + ZtHl + Z , A , ) / , - Z s i k m 7 2 (1.5)
where
Z c r f = internal impedance of the core with current return outside,
Z,ns — impedance of the insulation between the core and sheath
Ztkl = internal impedance of the sheath with current return inside
ZsKm — mutual impedance between the loops 1 and 2.
The formulae developed by Schelkunbff to evaluate these internal impedances, Zcrt,Zsh,
and mutual impedance, ZtKm, which take the skin effect into account, are exact and given in
terms of modified Bessel functions. These exact expressions are not suitable for hand calcula-
tion purposes. There have been several attempts to obtain approximations to these classical
formulae in order to make them suitable for hand calculations, (22, 23, 24].
Some of these approximate formulae are compared wjjth the exact formulae of (6] in
Chapter 3, in terms of accuracy and computer time. The errors which are caused by neglecting
the displacement current are discussed in Chapter 3 as well.
Generally, the earth acts as a return path for part of the current in the underground or
submarine cable system. The cable parameters are very much influenced by the earth return
impedance. These impedances are obtained from the axial electric field strength in the earth
due to the return current in the ground.
In Chapter 4 the following topics are discussed:
(i) Earth return impedances of cables buried in an infinite earth, where the depth of penetra-
tion of the return current in the ground is smaller than the depth of burial, or in iother
words, where the distribution of return current in the ground is circularly symmetrical.
(ii) Earth return impedances of cables buried in a semi-infinite earth, where the depth of
penetration of the return current in the ground is larger than the depth of burial.
(iii) Error introduced in the answers if the displacement current is neglected in the computa-
tion.
(iv) Approximations proposed by Wedepohl and Semlyen and a comparison of their equations
with the classical formula of Pollaczek [lj in terms of accuracy and computer time.
"I (v) Ametani's (27] cable constant routine in the E M T P program.
(vi) Mutual impedances between a buried conductor and an overhead conductor.
In Chapter 5, we turn our attention from cables made up of homogeneous conductors to
cables whose core and sheath are made up of laminated conductors of different materials. A
practical application of this type of conductor is proposed by Harrington [32]. He suggested
- 5 -
that transient sheath voltages in gas-insulated substations can be reduced by coating the con-
ductor and sheath surfaces with high-permeability and high-resistivity materials. Formulae for
the internal impedances of such laminated conductors are derived and used to show the damp-
ing effect as a function of frequency.
Chapter 6 concludes this thesis by comparing the values of the cable parameters obtained
for a particular three-phase cable system shown in Appendix A, by using the exact formulae of
Schelkunoff [6] and Pollaczek [l], as well as Ametani's approach [27] and Wedepohl's approxi-
mation [22].
- 6 -
2. SERIES IMPEDANCE AND SHUNT A D M I T T A N C E MATRICES
2.1 Basic Assumptions
The transmission characteristics of a conducting system such as an underground cable cir-
cuit or a submarine cable circuit are determined by its propagation constant T and characteris-
tic impedance K, which can be calculated for the angular frequency a) from the formula
T = V(R + {juiL)(G + jcoC)
K =; V(/? + jo>L)/(G + jmC) (2.1)
where R,L,G and C are the four fundamental line parameters - resistance, inductance, conduc-
tance and capacitance, all per unit length. Determination of these parameters in a cable is not
easy, but involves rather difficult analysis. Pioneering work in the calculation of underground
cable parameters has been done by Wedepohl and Wilcox (22], based on the earlier work of
Schelkunoff (6).
The first step in defining the electrical parameters of an underground or submarine cable
system is to set up the equations which describe the electric and magnetic fields. A complete
set of such equations would constitute a perfect mathematical model. If these equations could
be solved without any approximations then the response of the model would be indistinguish-
able from that of the real system, which it represents. In practice, however, this ideal situation
cannot be realized. For example, it is not possible to perfectly represent the electrical proper-
ties such as resistivity, permeability and permittivity of the earth which form the return path
for the currents flowing in the cable. Rigorous representation of such factors would lead to a
set of very complex equations which may be very difficult to solve. In practice, therefore, some
simplifying assumptions are made. The assumptions made in this thesis are:
1. The cables are of circularly symmetric type. The longitudinal axes of cables which form
the transmission system are mutually parallel and also parallel to the surface of the
earth. It is implied in this assumption, that the cable has longtitudinal homogeneity. In
other words, the electrical constants do not vary along the longtitudinal axes.
2. The change in electric field strength along the bngitodinal axes of the cables are negligi-
ble compared to the change in radial electric field strength. This assumption permits the
solution of the field equations in two dimensions only.
3 The electric field strength at any point in the earth due to the carrents flowing in a cable
is not significantly different from the field that would result if the net current were con-
centrated in an insulated filament placed at the centre of the cable and the volume of the
cable were replaced by the soil.
- 7 -
4. Displacement currents in the air, conductor and earth can be ignored.
Assumptions 3 and 4 are justified up to high frequencies (1MHz], as will be demonstrated
later in Chapter 3 and Chapter 4.
2.2 Series Impedance Matrix [Z\ for N Cables in Parallel
Let us assume that the transmission system consists of N cables. Each cable has a cross
section of the type shown in Figure 2.1, representative of a typical high voltage (H.V.) under-
ground cable.
Figure2.1 Basic Single Core Cable Construction
The core consists of a tubular conductor C with the duct being filled with oil. In the case
of solid conductors, the inner radius r 0 would be zero. The insulation between the core and the
sheath is usually oil-impregnated paper, surrounded by a metallic tubular sheath 5, and insula-
tion around the sheath.
In such systems, there are n = 2N metallic conductors. The soil in which the cables arc ;
buried constitutes the ( n - f l)th conductor which is chosen as the reference for the conductor
voltages. Such a transmission system can be described by the two matrix equations
4^= -ZI (2.2a)
dx
(2.2b)
- 8 -
d]_
dx
= -IV
where'V and / are n-dimensional vectors of voltages and currents, respectively, at a distance z
along the longitudinal axis of the cable system. A l l voltages and currents are phasor values at
a particular angular frequency a>. The series impedance matrix Z is given by
Z =
\Zn\
l*«l 1*2=1
(*IN1
\ZW\
\ZNN]
(2.3)
Each submatrix, \ZU\ assembled along the leading diagonal is a square matrix of dimension 2
representing the self impedances of cable i , by itself,
*c,c, *£.s; (2.4)
where
Zc.c. = self impedance of the core of cable 1
Z,.s. = Zt.e. = mutual impedance between core and sheath of cable »
Zs.St = self impedance of the sheath of cable »
The off-diagonal submatrix |Z1;] represents the mutual impedances between cable »" and cable j.
This submatrix is also a square matrix of dimensions 2,
l*,l
Zr - r . Z' c - ? •
Z' r -c. Z * .s.
(2.5)
inhere
Z£.c. = mutual impedance between core of cable t and core of cable j
ZCiij — mutual impedance between core of cable 1 and sheath of cable j
Z,.t. = mutual impedance between sheath of cable 1 and core of cable j
Zt.$i = mutual impedance between sheath of cable 1 and sheath of cable j
Similarly, the shunt admittance matrix Y"can be defined as:
- 9 -
Y = (2.6)
•where the submatrices jV„j and |Y"y) can be defined in a similar way, as described in section 2.3.
2.2.1 S u b m a t r i x |Z„J
The elements of the submatrix \Z„] can be determined by considering a single cable whose
longitudinal cross section is as shown in Figure 2.2. The longitudinal voltage drops in such a
cable are best described by two loop equations, with loop 1 formed by the core and sheath (as
return) and loop 2 formed by the sheath and earth (as return).
insulation 2
sheath
insulation 1
core
Figure 2.2 Loop Currents in a Single Core Cable.
It has been shown by Carson [4] that the change in the potential difference between j and
(/ + 1) of a concentric cylindrical system as shown in Figure 2.3 is given by
——• + E} — Ej + x —ju>n4>, (27)
where
Ej = longitudinal electric field strength of the outer surface of the conductor j
E ; * j = longitudinal electric field strength of the inner surface of conductor (j'+l)
- 10 -
Axis
Conductor j
Conductor (j+l)
Figure 2.S Potential Difference between Two Concentric Conductors.
V. - potential difference between the j and the (j+l) conductor
<t>, = magnetic flux through the area described by the contour ABCD.
Since part of the current in the cable can return through the earth, the cable must be
represented by 3 conductors (core, sheath, earth), as shown in Figure 2.4.
Axis
Sheaih
Insulation 2
Earth
Figure 2.4 Three Conductor Representation of a Single Core Cable.
- 11 -
The values of longitudinal electric field strengths Ecre,Esk,,Eihe (i.e., on the external sur-
face of the core, internal surface of the sheaih and the external surface of the sheath respec-
tively) can be expressed as
Ecre = Z[rt /„ (2.8a)
Eikt = -*,»./, + ZskmI2 i(2.8b)
Eikc = Zikc I2 - Ztkm /, (2.8c)
The electric field strength along the surface of the earth can be written as
Ec = -ZeiI2 (2.9)
where
Zcrc = internal impedance per unit length of the core's external surface with current return-
ing through a conductor outside the core.
Zskt = internal impedance per unit length of the sheath's internal surface with current
returning through a conductor inside the tubular sheath.
Zskm = mutual impedance per unit length of the sheath which gives the voltage drop on the
external surface of the sheath, when current passes through the internal surface or
vice versa.
Zike — internal impedance per unit length of the sheath's external surface with current
returning through a conductor outside the tubular sheath.
Zes = self impedance of the earth's return path.
Equation (2.7) can be then be written for the contours ABGD and EFGH a i follows:
dx
d\r2
~dx
= Eik, - Ec,c - joL„h (2.10a)
= Et - Eikt - jo>L„/ 2 (2.10b)
In equation (2.10a), the total magnetic flux through the area described by the contour ABCD is
Lcs /j where
L» = itl*(r^) (211)
and r 0 and r, being the outer and inner radii of the insulation. The term L„ can be defined
similarly. The parameters jtaLc, and j i * L l t are the impedances Znl and Zn2 of the respective
insulations.
- 12 -
Substituting the values for the electric field strengths from equation (2.8) and (2.9) into
equation (2.10), we have
dz
dV~
dx
~ Zikm Ztht + Zm2 + Zti (2-12)
The matrix equation (2.12) relating the potential differences between the concentric
cylindrical conductors and the loop currents can also be obtained from Figure 2.2. directly, i.e..
d\\
dx zx Zm '/.'
d\'2 Zm Z2 (2.13)
dx
where the self impedance of loop 1 consists of 3 parts
Z\ = Zcre + Z i n l + Zitix,
and similarly for loop 2
Z2 ~ Zsh. 4- Z,n2 + Zti,
while the mutual impedance between loop 1 and loop 2 is
Zm = ZShm
Equations (2.12) or (2.13) are not yet in the usual form in which the voltages and currents
of the core and the sheath are related to each other. They can be brought ijjto such a form by.
considering the appropriate terminal conditions namely
v2 = Vtk I2 = Iik + /„ (2-14)
where
Vcr = voltage from the core to the local ground,
Vsll = voltage from the sheath to the local ground,
IC1 = total current flowing in the core,
Isk = total current flowing in the sheath.
Substituting the values for voltages V,,V2 and currents 7,,/2 from equation (2.14) into equation
(2.12), and adding rows 1 and 2, we obtain
- 13 -
dV„ ' ZCre + Z,nl + Zsh, + Ztkc + Icr
dx Z,n2 Zes — 1Zlkm Ze$ ~~ ztkm
dx Zskt ^««2 ^ « — ' ^«i fn -
(2-15)
The impedance matrix given in equation (2.15) is the self impedance submatrix [Z„\ for cable t.
It can be seen that the elements of the impedance submatrix \Z„] are obtained from the
internal impedances of tubular conductors • and from the earth return impedance. These
impedances are frequency dependent because of the skin effect, which is discussed in the next
section.
2.2.2 Skin Effect
In the derivation of formulae for resistance and inductance of conductors, it is often
assumed that the current density is constant over the cross section of the conductor. This
assumption is justified only if
(i) the resistivity is uniform over the cable cross section, and if
(ii) the conductor radius is small compared to the depth of penetration
However, as the size or permeability of the conductor increases or as the frequency increases
(resistivity still being uniform), the current density varies with the distance from the axis of the
conductor, current density being maximum at the surface of the conductor and minimum at
the centre.
The reason for skin effect is as follows:
In a long conductor of uniform resistivity the direction of current is everywhere parallel to
the axis, and the voltage drop per unit length is the same for all the parallel filaments
into which the conductor may be imagined to be subdivided,since these filaments are
electrically in parallel. The voltage drop in each filament consists of a resistive com-
ponent proportional to and in phase with the current density in the filament, and an
inductive component, equal to joi times the magnetic flux linking the filament. There is
more flux linking the central filament of a round conductor than linking the filaments at
the surface, because the latter are surrounded only by the external flux, whereas the
former is surrounded also by all the internal flux. The greater the flux linkage and the
inductive drop, the smaller must be the current density and the resistive drop in order for
the total drop per unit length to be the same. Hence, the current density is least at the
centre of the conductor and greatest at the surface [7].
- 14 -
The ac resistance, which is defined as the power lost as heat, divided by the square of the
current, is increased by the skin effect, because the increase in loss caused by the increase in
current in the outer parts of the conductor is greater than the decrease in loss caused by the
decrease in current in the inner parts. The inductance, defined as flux linkage divided by
current, is decreased by skin effect because of the decrease in internal flux.
2.2.3 Internal Impedance of Solid and Tubular Conductors
As mentioned in the previous section, the voltage drop per unit length is the same in all
the parallel filaments into which the conductor can be subdivided because all filaments are
electrically in parallel. The ratio between this voltage drop and the sum of al! filament
currents is the internal impedance. For a solid conductor of radius a and resistivity p. the
internal impedance is given by [7]
pm I0{ma)
2ira/,(m(i)
where
/„./, = modified Bessel functions of the first kind and of zero and first order, respectively.
m = the intrinsic propagation constant of the conductor of equation (2.16).
The derivation of the internal impedance formula for tubular conductors is more complex
due to the boundary conditions. For example, if we consider the sheath in Figure 2.2. the loop
current /,. passes through the inner surface of the sheath and returns internally and the loop
current I2 passes through the outer surface of the sheath and returns externally. This is illus-
trated in Figure 2.5.
Therefore, we have to consider the magnetic field strengths on both surfaces (which are
then the boundary conditions) while solving the Maxwell's field equations to determine the for-
mulae for the internal impedances. A detailed analysis of this problem had been done by Schel-
kunoff [6]: his formulae which are relevant to this thesis are summarized in Appendix B.
As shown in Figure 2.5, the return path for the current flowing in a tubular conductor
may be provided either inside or outside the tube, or partly inside and partly outside. We
designate Z„ as the internal impedance of the inner surface of the tube with internal return,
and Zb as the internal impedance of the outer surface of the tube with external return, and Zab
as the mutual impedance between one surface of the conductor to the other. The values of
Za,Zb and Zai are given as follows:
Za = ^•[/ 0(ma)K,(mJ) + AT0(ma )/,(*.&)]
- 15 -
Figure 2.5 • Sheath with Loop Currents /, and /j.
Z = P
st 2xabD
(2.17:.,b,c)
w h e r e
D = /j(m6)A',. (ma) - / , ( m a ) AT,(m6),
p = r e s i s t i v i t y o f t h e c o n d u c t o r ,
m = i n t r i n s i c p r o p a g a t i o n c o n s t a n t o f t h e c o n d u c t o r o f e q u a t i o n (2.17),
/<>,/, «= m o d i f i e d B e s s e l f u n c t i o n s o f t h e f i r s t k i n d a n d o f z e r o a n d f i r s t o r d e r , r e s p e c t i v e l y .
/ f 0 ,W, = t h e m o d i f i e d B e s s e l f u n c t i o n s o f t h e s e c o n d k i n d a n d o f r e r o a n d first o rd f - r .
r e s p e c t i v e l y .
U s i n g t h e s e f o r m v . ' a e t h e e l e m e n t s o f t h e s u b m a t r i x [Z.,\ c a n b e f o u n d .
2.2.4 S u b m a t r i x | Z J
T h e o f f - d i a g o n a l s u b m a t r i x [ZtJ\ w h i c h r e p r e s e n t s t h e m u t u a l i m p e d a n c e s b e t w e e n c a b l e i
a n d c a b l e j c a n be b e s t e x p l a i n e d i f w e c o n s i d e r a t r a n s m i s s i o n s y s t e m c o n s i s t i n g o f o n l y t w o
c a b l e s « a n d j as s h o w n i n F i g u r e 2.6. B e f o r e w e a n a l y z e t h e e l e m e n t s o f the s u b m a t r i x , we
- 16 -
Earth
Cable j
Figure 2.6 Tvuo Cable System
will briefly discuss the influence of proximity effects and shielding effects on these elements.
2.2.4.1 Proximity Effect
Skin effect is caused by the non-uniformity of current density in a conductor. This
current, density is a function of distance from the axis, but not of direction from the axis.
However, in parallel conductor transmission, in addition to the self-magnetic field (field gen-
erated by the current flowing through the conductor), there will be magnetic fields generalcd
by currents iD adjacent conductors. These fields interact and result in distortion in the ovr;:.l!
symmetric field distribution. The effects of the distortion of symmetry are known -j\ |>r«.^ ii:ii: \
effects, which in most cases affect the distributed parameters of the transmission system {3.3].
A.H.M. Arnold [13], has given a comprehensive treatment on proximity effect resistance
ratios for single-phase and three-phase circuits. He has given equations and tubulated func-
tions of i (defined below) for determining the proximity effect resistance ratios R'zr' in a
single-phase circuit of two identical tubular conductors, with solid conductors being a special
case. The ratio R'/R' is defined as the ratio of the effective ac resistance with proximity effect
taken into account to the effective oc resistance wbcu the conductors are far apart, such that
the proximity efTect is negligible. Further, factors to be applied to the ratio /?'//?'while consid-
ering a three-phase circuit with symmetrical triangular spacing or with flat spacing arc also
given in the same reference.
- 1 7 -
2.2.4.2 Proximity Effect of a Single-Phase Circuit of Two Identical Conductors
The ratio R'/R', defined earlier, for a tubular conductor with the solid conductor being a
special case, depends upon three variables, i.e., t/d,d/a and x defined as
t/d = ratio of thickness t of the tube to its outside diameter d.(t/d = 0.5 for solid conductor).
d/s = ratio of outside diameter d of a conductor to distance s between the axes of the conduc-
tors.
x = 2nV2ft{d-t)/p
x can be further simplified to [13],
x —
1.52-\/f/Rdc where
= the dc resistance of the conductor in Dim.
The proximity effect resistance ratio is then given by
/?'//?'=- (2.18)
where A. B and C are functions of x and t/d which can be determined from tables given in [13].
Similarly, proximity effect inductance ratios of a single-phase cable can be obtained as well.
Also, both proximity resistance and inductance ratios for a 3-phase system can be obtained
from the single-phase proximity resistance and inductance ratios.
For the example chosen in this thesis d/s is less than 0.35. For such a value, the proxim-
ity effect can be ignored up to frequencies of 1MHz, [13, 33]. Hence, proximity effects are
ignored here.
2.2.4.3 Shielding Effect of the Sheath
Another factor of importance in determining the mutual impedance, is the shielding effect
of the cable sheath, which is normally grounded at both ends. Consider a primary circuit 0. a
parallel exposed secondary circuit x and a shielding conductor * whose ends arc grounded as
d\-'°
shown in Figure 2.7- Let be the induced voltage in the exposed circuit duc to the mag-
dx
netic coupling without any shielding conductor and let — —be the induced voltage in the
dx
dV? i
shielding circuit. The current in the ground shielding conductor is then — , where Z.,
dx Zss
is the self impedance of the shielding conductor with earth return, Now, voltage induced in the
exposed circuit by the current in the shielding conductor is — , where Z.z is the mutual
Figure 2.7 • Circuit Arrangement of Primary, Secondary
and Shielding Conductors, with Shielding Conductor Grounded at Both Ends
impedance between the shielding and the exposed circuit. Therefore, the net voltage induced in
the exposed circuit is
d\rx dV? dVf Z;J
dx dx dx Z S 5
(2.19)
dVf d\r?
If the voltages — — and — — are expressed in terms of the current in the primary circuit as
dx dx
dV? d\r°
= I0Z0s
 a n cl ~.— = IoZoi> then equation (2.19) simplifies to
dx dx
£ 1
dx
1 - Os z»z Zn ZQJ ZQZIQ (2.20)
and the shielding factor of the grounded shielding conductor is then given by
Z,i Z0i
n = l z„z
(2.21)
ss Ox
If the shielding and the secondary conductor are exposed to the same field, which is the case
for a shielding wire very close to a telephone line, and for the cable sheath around the core con-
ductor, then
dX rO
dx dx '
Therefore Z0l = Z0s, which makes the shielding factor to be equal
to
(2.22)
- 19 -
2.2.4.4 E l e m e n t s o f S u b m a t r i x ( Z t ; ) .
K e e p i n g in m i n d t h e s h i e l d i n g e f f e c t d e s c r i b e d a b o v e , w e w i l l n o w d e r i v e t h e e l e m e n t s o f
t h e s u b m a t r i x \Z,}]. A g a i n , l o o p c u r r r e n t s a r e u s e d , as h a s b e e n d o n e b e f o r e f o r d e t e r m i n i n g
t h e e l e m e n t s d f t h e s u b m a t r i x j Z „ j . C o n s i d e r i n g t h e c a b l e s y s t e m s h o w n i n F i g u r e 2 .3 , we c a n
d e f i n e t h e f o l l o w i n g l o o p c u r r e n t s f o r t h e i t h c a b l e
i) l o o p c u r r e n t / ' , , w h o s e p a t h c o n s i s t s o f t h e c o r e ' s e x t e r n a l s u r f a c e a n d s h e a t h ' s i n t e r n a l
s u r f a c e
i i) l o o p c u r r e n t 7 3 , w h o s e p a t h c o n s i s t s o f t h e s h e a t h ' s e x t e r n a l s u r f a c e a n d e a r t h .
S i m i l a r l y , t h e l o o p c u r r e n t s l[ a n d I'2 c a n be d e f i n e d f o r c a b l e j .
If w e c o n s i d e r t h e l o o p c u r r e n t s F2 a n d I{, t h e r e wi l l be n o i n d u c e d v o l t a g e in l o o p 2 o f
c a b l e i d u e t o t h e l o o p c u r r e n t I\ as t h e n e t f i e l d p r o d u c e d b y t h e l o o p c u r r e n t 1\ is z e r o o u t -
s ide t h e c a b l e j [6], U s i n g the law o f r e c i p r o c i t y o f m u t u a l i m p e d a n c e s , i t c a n be d e d u c e d t h a t
t h e r e wi l l be no i n d u c e d v o l t a g e in t h e l o o p 1 o f c a b l e j d u e t o t h e l o o p c u r r e n t V2. H e n c e ,
r e l a t i n g the l o o p c u r r e n t s w i t h t h e p o t e n t i a l d i f f e r e n c e s b e t w e e n t h e c o n d u c t o r s we o b t a i n :
'dV\/dx z\ Z'm 0 0 r\
diydx zxm Z'2 0 Zsi ft
d\'\/dx 0 0 z\ Am n
d\"2/dj 0 Z S I Zin Zk
(2.23)
M o s t i m p e d a n c e t e r m s in e q u a t i o n (2 .23) , h a v e a l r e a d y b e e n d e f i n e d e x c e p t the t e r m
Zj. S y, w h i c h is t h e m u t u a l i m p e d a n c e b e t w e e n t h e e a r t h r e t u r n l o o p s 2 o f c a b l e s »' a n d j . If t h e
c a b l e s are b u r i e d in a n h o m o g e n e o u s i n f i n i t e e a r t h , w h e r e t h e p e n e t r a t i o n d e p t h o f t h e r e t u r n
c u r r e n t in t h e e a r t h is less t h a n t h e d e p t h o f b u r i a l , t h e n t h e v a l u e o f Z S i S > is g i v e n b y [9]:
pm"lK0(ms) ' -y _ \_ ' (2 24)
w h e r e
a = d i s t a n c e b e t w e e n t h e c e n t r e s o f t h e c a b l e s ,
r,,Tj = e x t e r n a l r a d i i o f the c a M c s i a n d j , a n d
m = i n t r i n s i c p r o p a g a t i o n c o n s t a n t o f t h e e a r t h .
F o r a h o m o g e n e o u s s e m i - i n f i n i t e e a r t h , w h e r e t h e p e n e t r a t i o n d e p t h i n t h e e a r t h is m o r e
t h a n t h e d e p t h o f b u r i a l , the m u t u a l i m p e d a n c e Zt.Sf is g i v e n b y (22]:
- 20 -
_ jap. K0(m/?) - /C0(mZ) + J
where
d,,d} = depth of burial of cables » and j ,
m = intrinsic propagation constant of the earth,
z = V « ' + (d, + d,y
s = horizontal separation between cables »' and j.
If we measure the voltages with respect to ground, then we can write
v2 = V\h
n = vu
and
V = /'
I\ =
/{ =
n =
I'
ih + Hr
(2.25)
(2.26)
Substituting the values given by equation (2.26), into equation (2.23), and adding rows 1,2 and
rows 3,4, we obtain the series impedance matrix for two cable system, as
(2.27)
From equation 2.27, the impedance submatrix [Z,}] defined earlier in equation (2.5) is
given by
dV\,/dx z\ + 2z; + r2 Z'm + Z'2 Zss Hr
dVJdx z'm + z\ z\ Zss Ilk
dV{,ldx Zss Zss
s,s}
Z{ .+ 2ZL + z>2 Zln + Z'2 Hr
dV{hldx Z s i Zss Z'2 + zi z2 7«*.
- 21 -
| 2,l =
It is i n t e r e s t i n g t o n o t e , t h a t t h e m u t u a l i m p e d a n c e b e t w e e n t h e c o r e o f c a b l e i a n d t h e
c o r e o f c a b l e j a n d t h e m u t u a l i m p e d a n c e b o t w e e n t h e c o r e o f c a b l e i a n d s h e a t h o f c a b l e j a r e
t h e s a m e . T h i s r a i s e s t h e q u e s t i o n w h e t h e r t h e s h i e l d i n g e f fec t is p r o p e r l y r e p r e s e n t e d in t h e
e q u a t i o n s . It is i n d e e d i m p l i c i t l y t a k e n c a r e o f i n t h e f o r m u l a t i o n w i t b l o o p c u r r e n t s . T h i s c a n
be i l l u s t r a t e d w i t h t h e h e l p o f a c o n d u c t o r w p l a c e d i n c lose p r o x i m i t y t o a c a b l e b u r i e d in t h e
e a r t h , as s h o w n in F i g u r e 2.8
Earth
(2 .28)
Conductor W
Figure 2.8 - Transmission System Consisting of a Single Conductor and a Cable.
F o v t h e s y s t e m s h o w n in F i g u r e 2 .8 , t h e v o l t a g e s a n d c u r r e n t s o i l the c a b l e c a n be w r i t t e n
as:
dx
dVsh
dx
— %cc Ic ZCSIS + ZCU,IVI
~ Zci Ic + Z,t /, + ZlV) /„
(2 .29a )
( 2 . 2 9 b )
w h e r e
Zet,Ztt
Zca..Zia.
— t h e s e l f i m p e d a n c e o f t h e c o r e a n d s h e a t h o f the c a b l e , r e s p e c t i v e l y ,
— t h e m u t u a l i m p e d a n c e b e t w e e n t h e c o r e a n d the s h e a t h , a n d .
= t h e m u t u a l i m p e d a n c e s b e t w e e n t h e c o r e a n d c o n d u c t o r w a n d b e t w e e n t h e s h e a t h
a n d c o n d u c t o r w, r e s p e c t i v e l y .
- 22 -
Suppose that the cable sheath is not grounded at the ends, but used as the return pa;b
for the current flowing in the core. Then there is no magnetic field outside the sheath, and no
voltage will therefore be induced in conductor u>. Since this induced voltage is Z^L. + Zs. /,..
with Isk — ~ / £ T . it follows that Z^ — Zsw must be true. On the other hand, if the sheath is
grounded at the ends, then there will be a circulating current through the sheath and earth,
and Vsk becomes zero. Hence, the value of 7$ can be found from equation (2.29b) as:
^ss
ZSUI (2.30)
Substituting the value of 7S into equation (2.29a) we obtain
dV,
dx
Z-^
z" z..
z„ - zSi
L +
1 -
Zc$' Zs.
~z~
Za ' Zsw
Zls ' Zcv,
IwZCu (2.31)
The term 1 - 7 7
Za Zcu,
is the shielding factor of the sheath for the field produced by conduc-
tor w. With Zcw = Zsw, it can be simplified to 1 -
Zss
which is the same as equation (2.22).
Hence, the shielding effect is implicitly taken careof in the equations.
2.3 Shunt A d m i t t a n c e M a t r i x Y for N Cables in Paral le l
In a manner similar to the series impedance matrix Z, the shunt admittance matrix Y can
be expressed in terms of two submatrices [Y„] and [Y,J. Since the soil acts as an electrostatic
shield between the cables, the off-diagonal submatrix [>',,] will be a null matrix. Hence, we only
have to derive the submatrix [Yj,|. Before we obtain the elements for the submatrix [}'„], the
admittance of insulation will be discussed first.
2.3.1 Leakage Conductance and Capaci t ive Susceptance
Figure 2.9 shows a cross-section of a coaxial cable, with insulation between core and
sheath, and between sheath and earth. Let us assume that the insulation has a relative permit-
tivity of
The admittance Y per unit length of the insulation is defined as
j<i)27reo€*
y = G + jB = —
In r2/r1
- 23 -
Figure 2.9 - Croaa-Section of a Coaxial Cable.
77^ 7 V ~ J
jti)27rf„(
(2.32)
In TJT , In rjr,
The first term in the left hand side of equation (2.32), is the leakage conductance of the
insulation. It is the result of the combined effects of leakage current through the insulation
and of the dielectric loss [7]. The second term is known as the capacitive susceptance of the
insulation between the two conductors (core and sheath, or sheath and earth).
2.3.2 Frequency Dependency of the Complex Permittivity
Generally, the dielectric constant i is assumed to be a real constant with the imaginary
part of t neglected due to its relatively small value, (of the order of 10" 4 compared to the real
value [7,13,22.27]). However, the complex dielectric constant i is not a constant as its name
implies. It depends on a number of factors such as the frequency of the applied field, the tem-
perature and the molecular structure of the dielectric substance [15].
Let us consider two commonly used, insulating materials for power cables, namely cross-
linked polyethylene (XLPE) and oil-impregnated paper. The values of i and i for XLPE are
approximately constant for at least up to frequencies of \00MHz [16]. Typically, they have
values of
i = 2.33
t*=4.66 1(r 4 (2.33)
- 24 -
Unfortunate!}', little is mentioned in the literature about the frequency dependency of the
permittivity in the case of oil-impregnated paper (18]. Recently Johanscn and Breien [17] pub-
lished the measured values of i and t for the oil-impregnated paper for a frequency range of
1Hz to 10Q.4/7/;. The value of i was found to vary by 20%, whereas, the value of ' varies by
200% for the same frequency range, at a temperature of 20°c.
Figure 2.10(a),(b) Measurements of t ( t o )
and t*(co)
j * on an Oil-Impregnated Test Cable at 2(f c.
Figure 2.10(a) and (b) show the experimental data obtained for I and t for the frequency range
10* to 108Hz only. Based on this experimental data, the authors [17] developed an empirical
formula for t'(oi).
- " + (, + y J x . o - T " 1 2 3 1 1
Figures 2.11 (a) and (b) show the plot for i and ('obtained from the empirical formula,
which closely match the experimental data of Figure 2.10(a) and (b).
- 26 -
Frequency [Hz]
Figure 2.11 Values of t\ui) a n d t"(o>)
Obtained from the Empirical Formula.
- 26 -
A general formula for tbe complex permittivity of any material as a function of frequency
is given by Bartnikas [15]. According to Bartnikas, when a dielectric is subjected to an ac field,
at low electric field gradients, its electrical response will depend upon a number of parameters
such as the frequency of the applied field, the temperature and the molecular structure of the
•dielectric substance. Under some conditions, no measurable phase difference between the
dielectric displacement; D, and voltage gradient E will occur, and consequently the ratio DIE
will be defined by a constant equal to the real value of the permittivity, c'. When a dc field E
is suddenly applied across a dielectric, tbe dielectric will almost instantaneously, or in a very
short time, attain a finite polarization value. This polarization value will be almost instantane-
ous, since it will be determined by the electronic and atomic polarizability effects. The limiting
value of the real dielectric constant <'for this polarization is defined as <«, so that the resulting
dielectric displacement is Dm or imE. The slower processes, due to the dipolc oriontatiou or
ionic migration, will give rise to a polarization which will attain its saturation value consider-
ably more gradually because of such effects as the inertia of the permanent dipoles. The static
dielectric displacement vector, Dit in this case is equal to isE, where t, is the static value of
the real dielectric constant, e.
Figure 2.12 - Polarization-Time Curve of a Dielectric Afaterial
In the idealized polarization time curve depicted in Figure 2.12, Pf is the achieved satura-
tion value of tbe polarization resulting from permanent dipoles or from any other displacement
of free charge carriers. Depending upon the temperature and the chemical and physical struc-
ture of the material, the saturation value, Pt may be achieved in a time that may vary any-
where from a few seconds to several days. If we denote the time-dependent portion of P% as
P(t), the equation of the curve in Figure 2.12 can be represented by a form characteristic of the
- 27 -
charging of a capacitor
P(t) = Ps [l - exp(-f/r)] (2.35)
where T is the time constant of the charging process. The time constant, T is a measure of the
time lag and is referred to as the relaxation time of the polarization process.
Now, the real and imaginary parts of the permittivity of an insulating material can be
expressed as a function of frequency in terms of tm.e, and T as
t = Rc(e') = £«, +
I = Im(£') =
1 + O ) 2 ^
(ts-e„)oiT
1 + o) 2 ^
(2.36a)
(2.36b)
In summary, frequency dependence of the permittivity t is complicated, although, for
some insulating materials, such as (XLPE), i is practically constant. The changes are very sig-
nificant, i.e., of the order of 102, for oil-impregnated paper. Typical values for the real and
imaginary parts of t for X L P E are given in equation (2.33). The real and imaginary values of
t for oil-impregnated paper can be obtained from equation (2.34), based on the reference [17].
A general formula for ''-he complex permittivity of any material is given by equation (2.37a).
2.3.3 Submatrix \YU\
We shall now determine the self admittances of the cable system shown in Figure 2.2.
The loop equations for the current changes along loops 1 and 2 will be:
di,
dx
dx 0
dl2 0 n v2 (2.37a)
?here
Yi = Gx + jBA — admittance of insulation between core and sheath,
Y 2 = G2 + jB2 — admittance of insulation between sheath and earth,
Vj = voltage between the core and sheath,
V2 — volt age between the sheath and earth.
Substituting the values for currents IltI2 and voltages VltV2 from equation (2.14) into
(2.36) and subtracting row 2 from row 1, we obtain:
- 28 -
dlc,
dx
dx
Yx -Yr
-Y, Yx + Y2 . v » * . (2.37b)
Hence, the submatrix \Y„] is given by:
Yt ~Yx
-Yx Yx + Y2 (2.38)
Recently, Dommel and Sawada [19,20] suggested that the admittance matrix should
include the effect of the grounding resistance as well if the insulation between the sheath and
earth is electrically poor, as in oil or gas pipelines. In such cases, the leakage current flows
through the series connection of the insulation resistance and the finite grounding resistance.
For conduction effects in pipelines they, therefore, use
1
' insulation R, earth
(2.39)
where the grounding resistance /?e i r th i 3 given by
R earth
Pearth
4;r
2J_+ fa V(2ff) g + (t/2)2 + 1/2
D lnV(2H)2 + (1/2)2 - 1/2
(2.40)
with
Pearth
 = earth resistivity,
H = depth at which the cable is buried,
/ — length of the cable.
Strictly speaking, G2 in equation (2.39) is no longer an evenly distributed parameter
because /? e i r t tin equation (2.40) is a function of length. In [20], it is shown that the change in
the value of C 2.with the length is practically negligible, and treating G2 as an evenly distri-
buted parameter is therefore a reasonable assumption.
2.4 Conclusion
First, the series impedance and shunt admittance matrices were defined. These matrices
are made up of self and mutual impedance (or admittance) submatrices. Elements of the self
impedance submatrices were obtained from the internal impedance formulae for tubular con-
ductor and from the earth return self impedance formula. The elements of (he mutual
impedance submatrices were obtained from the earth return mutual impedance formulae. The
shielding effect of the sheath and the proximity effects between the conductors were studied
next to assess their influence on the elements of the mutual impedance submatrix. Finally, the
- 29 -
self admittance submatrix and mutual admittance submatrix were defined. Since the earth
acts as an electrostatic shield, the elements of the mutual admittance submatrix are zero. The
permittivity c* of the insulation which is needed to evaluate the elements of the self admittance
submatrix, is frequency dependent and complex. An empirical formula for finding the real and
imaginary parts of the permittivity t * as a function of frequency was shown, which can then be
used to find the elements of the self admittance submatrix.
- 30 -
3. C O M P A R I S O N O F I N T E R N A L I M P E D A N C E F O R M U L A E
lu the previous-chapter the scries impedance matrix was assembled from the internal
impedances of tubular conductors and from the earth return self and mutual impedances of
tubular conductors. The formulae for the internal impedances and earth return impedances
are given in terms of modified BesscI functions, which can be expressed as an infinite scries for :
small arguments and as an asymptotic series for large arguments. Before computers became
available, exact calculations were almost impossible and approximate formulae were therefore
developed. Such approximations had been proposed by several authors (G,22,2'5',"2 l]. In this
chapter, approximate formulae for the internal impedances are compared with i lie exact for-
mulae in terms of cpu time and in terms of accuracy. The earth return formulae are discussed
in the next chanter.
3.1 Exact Formulae for Tubular Conductors
Axis
I
17/
Figure 3.0 - Ix>op Currents in a Tubular Conductor
The internal impedances of a tubular conductor as given in equation (2.17) are as follows:
Z. = f/otmoJK-.M) + KjmaVAmb)] (3.1a)
Zt = -^L. \ I o { r n b ) K l ( m a ) + K^mbVJma)] (3.1b)
Z.» = (3-lc)
2ncbD
where D - /j(ml»)K',(ina) - Il(ma)Kl{mb)
- 31 -
The argumeDts for the modified Bessel functions 7 0 , / i and K0,Ki of the first kind and
second kind are complex because the intrinsic propagation m of the conductor is ^/w/y/p) .
For more exact- calculations, m should be {j<a/i/p— <>>2/i<) , where the first term under the
square root accounts for the conduction current and the second term accounts for the displace-
ment current. The displacement current can be ignored in good conductors as it is negligible
compared to the conduction current up to frequencies of 10MHz. For example, copper conduc-
tors with p = 1.7 10~8/?m resistivity would have a displacement current at 10MHz which is 11
orders of magnitude smaller than the conduction current, and even smaller than that below
10MHz. However, in the earth, the displacement current has an influence on the impedance as
the earth's conductivity is of the cider IO - 1 0 smaller than the conductivity of a good conductor
such as copper. Displacement currents are therefore taken into account in the earth return
impedances discussed in the next chapter.
Subroutine TUBE originally developed by H. W. and I. I. Dommel [30] (and later modified
by L. Marti [29]) and Amctani's Cable Constants program implemented in BPA's EMTP,
assume that the displacement currents can be neglected. This fact enables us to express the
modified Bessel functions of the 1st and 2nd kind in terms of Kelvin functions. For example,
the complex functions K0{mr) and I0(mr) can be expressed as real and imaginary parts as fol-
lows:
A'„(mr)= K0(VJ\m]r) = Kj\m\r)+ jA' t l(|m|r) (3.2a)
7 0(mr)= /o(V7T^lT)= B„(\m\r)+ jB e i(|m|r) (3.2b)
where B„ and £?,, are Kelvin functions of the first kind, and K~¥ and Kcl are those of the second
kind. To evaluate the Kelvin functions, infinite series and asymptotic series can be used for
small real arguments and large real arguments, respectively. Subroutine TUBE and Ametani's
routine use such series with a sufficient number of terms to guarantee high accuracy,
3.2 Internal Impedance of a Solid Conductor
The exact, formula for the internal impedance of a solid conductor of radius r follows from
Zh of equation (3.1) by setting o = 0 and 6 = r:
^1^1 3
2 j i r / , (mr)
where
r = radius of the conductor
- 3 2 -
m = intrinsic propagation constant of the conductor
/ 0 , / 1 = modif ied Bessel functions of the first kind and of zero and first order, respectively.
Wedepohl [22] suggested an approximation to this exact formula, given by
z _ pmcoth(fcmr) + p(l-l/2k)
This approximation was developed by first considering the equation
= pmcoth(fnr) ( 3 5 )
27rr
This equation is known to exhibit similar properties as the exact equation given by Equation
(3.3). For example, at high frequencies, the impedance term Zx tends to be pm/2xr which is a
well known skin effect formula [22], while at lower frequencies it represents pure resistance
although not, in fact, equal to the required value p/xr2. Equation (3.5) can be improved to take
account of the dc resistance more precisely by writing
Z > = - ^ - c o t h ( W ) + ^ - f * ) (3.6)
2nr nr
where k is an arbitrary constant. The second term on the right hand side of this equation
corrects the impedance at direct current. The value of A; chosen to give the correct resistive
component is 0.777.
There is another interesting formula derived by Semlyen in the discussion of reference 24,
where the internal impedance of a solid conductor is given as
Zx = y/R? + Za (3.7)
where Rc is the dc resistance given by p/xr2 and, Za is the impedance at very high frequencies
given by pm/2-r. Table 3.1 shows the values of resistance Rx = Re{Zx} and inductance
Lx = — 7m{Z,} obtained from subroutine T U B E and from Wedepohl's and Semlyen's approxi-(i)
mation formulae.
Figure 3.1(a) and (b) show the resistance and inductance as a function of frequency. The
errors in the values of resistance and inductance in Wedepohl's formula and Semlyen's formula
are plotted in Figure 3.2(a) and (b).
From the table and figures we can see that Wedepohl's formula has an error of 1-3% in
the frequency range 100Hz to 1kHz for the resistive part, and 4% error up to frequency of
1kHz in the inductive part. Semlyen's formula has an error of 4-7% for the frequency range
60Hz to 20kHz, in the resistive part, and an error of 4-11% for the frequency range 20Hi to
300Hz in the inductive part.
- 33 -
T a b l e 3.1
Internal Impedance of a Solid Conductor
(p = 17 10~'Om and r = 0 . 0 2 3 4 m )
FREQUENCY
(Hz)
TUBE WEDEPOHL SEMLYEN
RESISTANC ;E (Q/km)
.01
. 1
1
10
100
1,000
10,000
100,000
1 ,000,000
10,000,000
0.0098825
0.0098825
0.0098858
0.0102067
0.02033800.0582719
0.1786977
0.5596756
1.7644840
5.5744390
0.0098775
0.0098776
0.0098809
0.0102034
0.0211463
i 0.0592378
0.1797193
0.5607150
1.7655290
5.5754860
0.0098825 ;
0.0098825
0.0098874
0.0103294
0.0190556
0.0561595
0. 1763397
0.5572406
1.7620250
5.5719720
INDUCTANC 3E (jiH/km)
.01
. 1
1
10
100
1,000
10,000
100,000
1,000,000
10,000,000
50.000000
49.999920
49.991580
49.181730
27.567070
8.853760
2.803902
0.886793
0.280432
0.088680
51.800000
51.799920
51.792250
! i 51.042710
i 28.354910
; 8.868063
2.804328
0.886806
0.280433
0.088680
50.000000
49.999750
49.974780
; 47.836480
25.930690
8.798590
2.802123
0.886736
0.280430
0.088680
The cpu times were found to be:
TUBE
Wedepohl
Semlyen
0.042 ms
0.038 ms
0.022 ms
- 34 -
figure 3.1(a) and (b) Impedance of a
Solid Conductor ae a Function of Frequency.
- 35 -
5-
2 '
U i
w -1-1
c
ro
*—«
CO
0)
cc -5-
-7-4
11
12
WEDEPOHL
SEMLYEN
-
f i x----.:
-
i / /
/ \ /
10~2 10_1 1 10' 10 2 10 5 10 4 10 s 10 6 10'
8
^ 4
o
L—
uj o
o
c
— 4
o
T3
-8
WEDEPOHL
SEMLYEN
1/
10~* 10" 1 1 10' 10 2 10 3 10 4 10 5 10 6 10 7
Frequency [Hz]
Figure 3.2(a) and (b) Errors in Wedepohl's and
Stmlycn'» Formulae for a Solid Conductor.
- 36 -
To verify that the displacement current is indeed negligible, a modified subroutine
TUBEC was written which takes displacement currents into account. Within the accuracy
given in Table 3.1. TUBE and TUBEC produced identical mults.
3.3 Internal Impedance of a Tubular Conductor;
Figure S.S • Cross Section of a Tubular Conductor
There are three impedances associated with a tubular conductor of the type shown in Fig-
ure 3.3:
1) Internal impedance Za, which gives the voltage drop on the inner surface, when a unit
current returns through a conductor inside the tube.
2) Internal impedance Zt, which gives the voltage drop on the outer surface when a unit
current returns through a conductor outside the tube.
3) Mutual impedance Zai of the tubular conductor which gives the voltage drop on the outer
surface when a unit current returns through a conductor inside the tube or vice versa.
The formulae for Z^,Zb and Z,t, originally developed by Schelkunoff, are given in equation (3.11.
These formulae are given in terms of modified Bessel functions, and are obviously not suitable
for hand calculations. Schelkunoff therefore approximated these exact formulae by replacing
the modified Bessel functions J0,IX,K0 and K", by their asymptotic expressions and performing
the necessary division as far as the second term.
Schelkunoff's approximations are as follows [6]:
Zt = -^cotb(m(6-o)) - -^—{^ + ( 3 8 a )
Z i = | ^ c o t h ( m ( 6 - a ) ) + ^ ( 3 / a + l/6} (3.8b)
- 37 -
Zah = ^|LcoBeft(m(6--c)) (3. 8 c)
Wedepohl and Wilcox, give a similar approximation [22] but with a different approarh.
The magnetic intensity H and the electric current density / in a tubular conductor can be
related by the equations:
f + f-:' <»;»»)
= m 2 / / (3.9b)
If the tube is thin compared with its mean radius, equation (3.9a) can be written as:
dH 2H ,
Equation (3.9b) and (3.10) lead to a second-order differential equation in H. Now, solving
for H from this second-order differential equation and following the same procedure as given in
Appendix A for the exact formulae, we obtain the following equations:
Z t = ^ c o i H m { b . a ) ) - - ^ ( 3 , l a )
Z t = ^ c o t H m ( b - a ) ) + ^ ^ { 3.1, b )
Z < » = -7~T C o s e A ( m(6 - a ) ) (3.11c)
7t(a + 0)
There is another approximation derived by Bianchi [23]. If the difference between the
radii b and a is very much less than either of the radius o and 6, or in other words, if
(6 — a)«a,b then the impedances can be expressed as
Z ° = Z> = / ™ coth(m(6-a)) (3.12a)
Z°> = - 7^«>seA(m(6-a)) • (3.12b)
The impedance Zti obtained by Bianchi in equation (3.12b) is the same as that obtained by
Wedepohl in equation (3.11c).
Using the exact formula (subroutine TUBE) Wedepohl's approximate formula,
Schelkunoff's approximate formula and Bianchi's approximate formula, the values of resistance
and inductance terms of the impedances ZtZt and Z 4 t were obtained for a typical tubular con-
ductor. Table 3.2 shows the resistance and inductance values as a function of frequency for the
internal impedance Za. Figures 3.4(a) and (b) show the resistance and inductance for the fre-
quency range 0.01 Hz to 10MHz. To highlight the differences in the results, the errors in the
- 38 -
Table S.2
Internal Impedance Zt of i Tubular Conductor with
Current Returning Inside (p = 2 . 1 \0~7Dm,a = 0 . 0 3 8 5 m , 6 = 0 . 0 4 1 3 m )
FREQUENCY TUBE WEDEPOHL SCHELKUNOFF BIANCHI
(Hz)
RES s I STANCE ($2/k .m)
.01 0. 299163 0.299163 0.288640 0.299163
. 1 0. 299163 0.299163 0.288640 f 0.299163
1 0. 299163 0.299163 0.288640: 0.299163
10 0. 299163 0.299163 0.2886401 0.299163
100 0. 299169 0.299169 0.288646 0.299169
1000 0. 299761 0.299762 0.289224 0.299741
10000 0. 354424 0.354480 0.343956 0.352539
100000 1. 18036 1.18068 1.17015 1 .14975
1000000 3. 75275 3.75312 3.74259 3.63192
10000000 11 .8915 11.8919 11.8813 11.4852
INI 5UCTANCE ( MH/ 'km)
.01 4. 84605 4.84848 4.84848 4.67836
. 1 4. 84605 4.84848 4.84848 4.67836
1 4. 84605 4.84848 4.84848 4.67836
10 4. 84605 4.84848 : 4.84848 4.67836
100 4. 84603 4.84846 4.84846 4.67834
1000 4. 84339 4.84581 4.84581 4.67578
10000 4. 60048 4.60256 1 4.60256 4.44106
100000 1 . 89284 1.89296 1.89296 1.82654
1000000 0. 59905 0.59906 0.59906 0.57804
10000000 0. 18944 0.18944 0.18944 0.18279
approximate formulae are plotted in Figure 3.5. From these figures and the table it can be
seen that
1. Wedepohrs formula has almost no error up to a frequency of 1MHz for both the resis-
tance and inductance.
2. Schelkunoff's approximation has an error of 2-4% up to a frequency of 10kHz in the resis-
tive part. The inductance value obtained by SchelkunofTs approximation is the same as
that obtained by Wedepohl's approximation.
- 39 -
10-
v o c _p
or
TUBE
WEpEPOHL
SCHELKUNOFF
BIANCHI
O . H
10"
10-
10" 10' 102 103 10' 105 10' 10
E
\ x j t
aj i -o c _o
"o
T> C
TUBE
WEDEPOHL
SCHELKUNOFF
BIANCHI
0.1+-
10" 10" 10' 10J 103
Frequency [Hz]
10* 10' 10'
Figure S.4(a),(b) • Impedance Z, of a Tubular Conductor
(with Internal Return) as a Function of Frequency.
10
- 40 -
^ 2
o
" 0
tt> o c
(0
c o
" t o
tu _->
cc z
WEDEPOHL
SCHELKUNOFF
B I A N C H I
\ . - ' "
\
\ / '
A
10~2 10"' 1 101 102 10J 104 10s 106 107
e£ 2
o k_
k_
U l 0 tv> o c
<0
u
"D
c - 2
WEDEPOHL
SCHELKUNOFF
B I A N C H I
I . M i l l , , IHj I 1,1,11V ! I l l l l l l , I . I I I I t T , I I I M i l l , I I l l l l l l , I I I I . I l l , I l l l l l l f
10"2 10"1 1 10' 102 105 10" 105 10s 107
Frequency [Hz]
Figure S.5 -Errors in Wedepohl'*, Sehelkunoff'e and Bianchi'a Formulae
forZt.
- 41 -
3. Bianchi's approximation formulae is good for frequencies less that 10 kHz in the case of
resistance, where the error is almost zero, but beyond that frequency the error increases.
In the inductance the error is around 3% for the whole frequency range.
The cpu time for the routines were found to be
TUBE 0.059 ms
Wedepohl 0.037 ms
Schelkunoff 0.036 ms
Bianchi 0.033 ms
Similar comparisons were made for the mutual impedance Zab and the impedance Zt.
Table 3.3 gives the values of resistance and inductance of the impedanceterm Z..^ obtained
from routine TUBE, from Wedepohl's approximation formula and from Schelkunoff's approxi-
mation formula at different frequencies. Since the approximations proposed by Wedepohl and
Bianchi are identical, only Wedepohl's approximation was considered.
The errors in the approximate formulae are shown in Figure 3.6. It can be seen from Fig-
ure 3.6 that the errors in both Wedepohl's and Schelkunoff's approximations are less than 0.5^
up to a frequency of 1MHz. Wedepohl's approximation is closer to the exact formula.
The cpu times were found to be:
TUBE 0.056 ms
Wedepohl/Bianchi 0.038 ms
Schelkunoff 0.037 ms
In a similar manner, the resistance and inductance components of Zt were calculated.
Table 3.4 shows the values of these parameters using the exact formula and various approxi-
mations at different frequencies.
Figures 3.7(a) and (b) show the resistance and inductance as a function of frequency for
the range 0.01 Hz to 10MHz. The errors in the approximations are plotted in Figure 3.8. We
note the following for the impedance Z 4
- 42 -
0.4
0.1-
ui
CP o c
CD
- - o . H
T J
C
— 0.3 f 111 (Mill I I I l l l l l ,
W E D E P O H L
S C H E L K U N O F F
\
TT!!I, 1 1 l l l T H t ' T 1 MTIir, I I 1 l l l l l l ' 1
\2 4/r>3
i i inn: - ' i i mill i linn
10~2 10" 1 10' 102 10 s 10" 10* 106 107
Frequency [Hz]
Figure S.6
Errors in Wedepohl's and Sehetkunoff'e Formulae for Ztl
- 43 -
Table S.S
Mutual Impedance (Z e 6, of a Tubular Conductor
(p = 2.1 10" 7/?m,o = 0.0385m ,6 = 0.0413m)
FREQUENCY
(Hz)
TUBE WEDEPOHL SCHELKUNOFF
RESISTANC :E (8/km)
.01
. 1
1
10
100
1 ,000
10,000
100,000
1,000,000
0.29916343
0.29916343
0.29916343
0.29916338
0.29915838
0.29865873
0.25299441
-0.06964902
0.00001930
0.29916343
0.29916343
0.29916343
0.29916338
0.29915838
0.29865846
0.25297170
-0.06962398
0.00001929
0.29934775
0.29934776
0.29934776
0.29934771
0.29934270
0.29884247
0.25312757
-0.06966688
0.00001930
INDUCTANC 3E (uH/km)
.01
. 1
1
10
100
1,000
10,000
100,000
1 ,000,000
-2.3386052
-2.3386052
-2.3386052
-2.3386052
-2.3385803
-2.3361094
-2.1095191
-0.0097380
0.0000082
-2.3391813
-2.3391813
-2.3391813
-2.3391810
-2.3391563
-2.3366832
-2.1099033
-0.0097146
0.0000082
-2.3406226
-2.3406226
-2.3406226
-2.3406223
-2.3405975
-2.3381230
-2.1112033
-0.0097206
0.0000082
T h e e r r o r s i n W e d e p o h l ' s a p p r o x i m a t i o n a re p r a c t i c a l l y n e g l i g i b l e f o r b o t h r e s i s t a n c e a n d
i n d u c t a n c e u p t o a f r e q u e n c y o f 10MHz.
T h e e r r o r s i n S c h e l k u n o f f ' s a p p r o x i m a t i o n a r e a r o u n d 3.5% u p t o a f r e q u e n c y o f 10kHz
a n d d e c r e a s e s f o r h i g h e r f r e q u e n c i e s . S c h e l k u n o f f ' s a p p r o x i m a t i o n g i v e s t h e s a m e v a l u e s
as W e d e p o h l ' s a p p r o x i m a t i o n f o r t h e i n d u c t a n c e t e r m .
T h e e r r o r s i n B i a n c h i ' s a p p r o x i m a t i o n a r e n e g l i g i b l e f o r f r e q u e n c i e s u p t o 1kHz bu t
i n c r e a s e t h e r e a f t e r f o r t h e r e s i s t a n c e t e r m . T h e e r r o r i n t h e i n d u c t a n c e is 3.8% f o r t h e
w h o l e f r e q u e n c y r a n g e .
- 44 -
Table S-4
Internal Impedance Zk of a Tubular Conductor
tvith Current Returning Ouleide
(p = 2.1 10~ 7/?m,a = 0.0385m ,6 = 0.0413m)
FREQUENCY TUBE WEDEPOHL SCHELKUNOFF BIANCHI
(Hr)
RE< 51 STANCE ( j B / J ;m)
.01 0. 299163 0.299163 0. 309686 0. 299163
.1 0. 299163 0.299163 0. 309686 0. 299163
1 0. 299163 j 0.299163 0. 309686 0. 299163
10 0. 299163 0.299163 0. 309686 0. 299163
100 0. 299169 0.299169 0. 309691 0. 299169
1000 0. 299720 0.299721 0. 310243 0. 299741
10000 0. 350679 0.350729 0. 361252 0. 352539
100000 1. 120643 1.120912 ; i . 131444
; T .
149755
1000000 3. 518632 3.518953 3. 529473 • 3. 631926
10000000 11 .10564 11 .10605 11 .11652 1 1 .48527
INI HJCTANCE (uH/ 'km)
.01 51759: 4.51977 i *• 51977 I 4. 67836
. 1 : 4 . 51759 j 4 . 5 1 9 7 7 i 4. 51977 i 4. 67836 1 4 . 51759 1 4 . 5 1 9 7 7 ! 4. 51977
! 4. 67836
10 4 . 51759 4 . 5 1 9 7 7 4 . 51977 4. 67836
100 4 . 51756 4 . 5 1 9 7 5 4. 51975 4. 67834
1000 4 . 51510 4.51728 4. 51728 4. 67578
10000 4 . 28865 4 . 2 9 0 5 2 4 . 29052 4. 441 06
100000 1 . 76453 1 .76463 1. 76463 1 . 82655
1000000 0. 55844 0.55844 0. 55844 0. 57804
10000000 0. 17660 0.17660 0. 17660 0. 18280
- 45 -
°icr2 io"' 1 io' 101 103 io 4 io 5 10s io 7
Frequency [Hz]
Figure S.7(a),(b) - Impedance Zb of a Tubular
Conductor (with External Return) as a Function of Frequency.
- 46 -
2-
O
k-
UJ 0
<o o c to
to _•>
s
/
V
/\
-
s
/
V
/\
WEDEPOHL
SCHELKUNOFF
B I A N C H I
o
fc— fc—
UJ
0
a>
u c -to
u
3
TJ c -2
10~ 2 1 0 " ' 1 10 ' 1 0 2 1 0 S 1 0 " 10* 10* 1 0 7
WEDEPOHL
SCHELKUNOFF
B I A N C H I
— A ] II. i i i . i II,i| i i i . nn, • J • i in., .i i . i . i i , i . , i mi, III nm, .MI mil i i 11 in
1 0 ~ 2 1 0 " 1 1 1 0 ' 1 0 2 1 0 S 1 0 4 1 0 S 10* 1 0 7
Frequency [Hz]
Figure S.8 - Errors in Wedepohl's Schelkunoff's
and Bianchi's Formulae for Zt
- 47 -
The cpu times were found to be:
TUBE 0.058 ms
Wedepohl 0.038 ms
Schelkunoff 0.037 ms
Bianchi 0.033 ms
3.4 Conclusion
The exact or classical formulae for finding the internal impedances for a tubular conduc-
tor were given by Schelkunoff. Since these formulae were not suitable for hand calculation pur-
poses, approximations for these classical formulae were developed by many authors, including
Schelkunoff himself. In this chapter, the accuracy and the cpu time taken by these approxima-
tions were compared with the classical formulae for the tubular conductor of a typical cable.
The displacement current term is neglected in subroutine TUBE and in Ametani's cable
constant routine, which use the exact formulae. Though not discussed in detail, a modified
subroutine TUBEC was developed which takes the displacement current into account. In all
cases, the results from TUBEC and TUBE were identical within the accuracy shown in the
tables.
Subroutines were then written for the approximate formulae of Wedepohl, Schelkunoff
and Bianchi, and the values obtained from these approximations were compared with the
values obtained from the classical formula. Wedepohl's approximation formulae were indeed
very good if the conductor thickness is small compared to its mean radius. The approximation
proposed by Schelkunoff is similar to that proposed by Wedepohl except for the 2nd term.
Schelkunoff approximated the modified Bessel functions in the exact formulae by the asymp-
totic series and retained only two terms, which produces reasonably accurate results as long as
the argument is larger than 8 [34]. In the example, the argument terms | ma | and | mb | did
not reach the value 8 up to frequencies of 2kHz. Hence, approximations based on the asymp-
totic series would obviously produce errors at low frequencies.
Bianchi's approximation is only good at low frequencies less than 1kHz, for the resistance
and has an acceptable error of 3-4% in the inductance up to frequencies of 10MHz. It should
also be noted that all the above approximations are valid only if the thickness of the conductor
is smaller than the mean radius of the tubular conductor.
- 4 8 -
The routines for Wedepohl's approximation - WEDAP, Semlyen's approximation -
SEMAP, Schelkunoff's approximation - SCHAP, Bianchi's approximation - BNCAP and TUBEC
were written bythe author. If these routines were written by a more experienced programmer,
they might consume less cpu time than shown earlier. Even then, the cpu time for the exact
formula (TUBE) would not be much more than that of the approximations. Therefore, the
exact formula with subroutine TUBE is recommended for computer solution. For hand calcula-
tion or for calculations with electronic calculators, Wedepohl's formulae are recommended.
- 49 -
4. EARTH RETURN IMPEDANCE
The self and mutual impedance of conductors with earth return are of importance in stu-
dies of inductive interference in communication circuits from nearby overhead lines or under-
ground cables. Also they are important in the calculation of voltages in power lines or com-
munication circuits due to lightning surges or other transients [14]. Generally, the earth acts
as a potential return path for currents in the underground, aerial or submarine cables. The
values of cable constants therefore depend on the earth return impedances. In practical situa-
tions, the earth's electrical characteristics such as resistivity, permeability and permittivity are
not constant. However, simulation results came reasonably close to fied test results if a homo-
geneous earth is assumed. The equations for self and mutual impedances are therefore
developed with that assumption.
The impedances are obtained from the axial electric field strength in the earth due to the
return current in the ground, which in turn, can be obtained from Maxwell's equations. If a
cable is assumed buried in an infinite earth, (where the depth of penetration of the return
current in the ground is smaller than the depth of burial, or, in other words, the distribution of
return current is circularly symmetrical) the electric field strength can be easily derived,
because only the earth medium must be considered in Maxwell's equations (Appendix C). On
the other hand, if the earth is treated as semi-infinite, (where the depth of penetration of the
return current is larger than the depth of burial so that the depth of penetration of the return
current is not circularly symmetrical) the problem of finding the axial electric field strength in
the earth is quite complex, because both air and earth media must be considered in Maxwell's
equations (Appendix D). The solutions for the electric field strengths, for both infinite and
semi-infinite earth are derived, assuming first that the conductor is a filament with negligible
radius. In the case where the return current in the ground is circularly symmetric, exact equa-
tions are still easy to derive for cables of finite radius. It is quite difficult, however, to extend
the equations for the filament conductor to a conductor of finite radius in the case where the
earth return current distribution is not circularly symmetric. In this chapter, we discuss the
conditions under which these equations derived for the filament conductor can be extended to a
conductor of finite radius. Furthermore, the effect of neglecting the displacement current term
is discussed as well.
Ametani's Cable Constant routine in EMTP uses different formulae for these impedances.
His approach, as well as the approximations proposed by Wedepohl and Semylen are discussed
and compared with the exact equations. Another impedance of interest is the mutual
impedance between a buried conductor and an overhead conductor. This topic is also covered
here.
- 50 -
4.1 Earth Return Impedance of Insulated Conductor
The simplest underground cable consists of a conductor laid at depth d below the surface
of the ground with insulation around it which forms a concentric dielectric cylinder of external
radius a. The earth then forms the return path. The ground return self impedance Zti is
defined as the ratio of the axial electric field strength at the external surface of the insulation
to the current flowing in the cable. The earth return mutual impedance between the loops of
two buried, insulated conductors is defined as the ratio of the axial electric field strength at
the external surface of the insulation to the current flowing in the other conductor and vice
versa.
As a preliminary step, the self and mutual impedances will be first found on the assump-
tion that the cables are buried in an earth which is homogeneous and infinite in extent.
Clearly, this situation does not arise in practical applications, although it is a reasonable
approximation if the cable is buried at great depth, or if it is at modest depth but the frequen-
cies are so high that the return current will flow very close to the cable. Furthermore, this
treatment will be found useful in justifying the simplifying assumption 2 in section 2.1 of
Chapter 2, and will also be helpful in interpreting the results for the more general case of earth
return impedance in a homogeneous semi-infinite earth.
4.2 E a r t h Return Impedance in a Homogeneous Infinite E a r t h
The calculation of earth return impedance in an infinite earth is relatively easy since
there is no surface discontinuity as in the semi-infinite case (earth and air).
With the assumptions mentioned]in Chapter 2 (except for assumption 3), it is shown in
Appendix C that the electric field strength at a radial distance r from a cable of insulation
outer radius a carrying current / which returns through the earth can be written as:
E = . _ pml Ko(mr) ( 4 ,)
ITXQ. A'j(mo)
where
p = resistivity of the earth
m = intrinsic propagation constant of the earth.
The earth return self impedance per unit length of the cable is obtained from equation
(4.1) by substituting r = a together with the general relation E = —ZI. It also follows from Zb
of equation (3.1b), if we regard the earth as a tubular conductor with inside radius a whose
outside radius b goes to infinity.
- 51 -
The mutual impedance between the cable and a filamentary insulated conductor at a
radial separation R is obtained by substituting r = R. The mutual impedance between two
cables with finite radii over their insulation is different from the case of a cable of finite radius
and a filament conductor. It can, however, be deduced from the mutual impedance between
the cable and a filamentary type conductor by invoking the law of reciprocity of mutual
impedance [9].
We have already shown in equation (4.1) that the mutual impedance between a cable of
radius o and a filament conductor separated radially by a distance R is given by:
Z --pm
K0(mR)
2na A'j(ma) (4.2)
Hence, from the law of reciprocity of mutual impedance, the electric field strength on the
surface of the cable due to a current / in the filament can be written as:
E = -
pmIK0(mR)
2za K t ( m a )
(1.3)
Now consider a cable of radius 6 carrying a current / as shown in Figure 4.1. The electric
field strength at a point P at a radial distance R is given by:
Earth
Figure 4-1 - Electric Field Strength al point P
pm I'K0(mR)
27rbKl(mb)
The same field strength will be experienced at point P, due to a filament conductor placed
along the axis of the cable and carrying a current f, but now the equation will be:
pmfK^mR)
2nb(\/mb)
(as 6 - 0 , Ki(mb)-\/mb)
- 52 -
From equations (4.4) and (4.5) we obtain the value of f to be equal to f/mb Kx(mb).
Therefore, the electric field strength in the soil outside a cable of radius b carrying current / is
indistinguishable from that of a current filament placed along the axis of the cable and carry-:
ing a current f/mbK^mb).
Hence, the electric field strength at the surface of the cable of radius o, which is at a
radial distance R from a cable of radius b is found from equation (4.3) by substituting for I the
value of f. Therefore, we obtain the field to be:
_ Pm*fK0(mR) .
27imaK1(ma)mbK1(mb) ' ' '
Hence, the mutual impedancebetween two cables of radii o and 6 respectively, buried in a
homogeneous infinite earth is given by:
pm2K0(mR) - • (''•") 27tma Ki(ma)mb K}(mb)
Now we can deduce an interesting result. The series expansion of A'j(r) shows that as
z-0, K1(x)~l/x. Therefore, for small values of \ma\ and |mi|, or in the limiting case of
o,6-0 (filament conductors), the self and mutual impedances obtained from equation (4.2) and
(4.7) will be given by:
Zs = -^Koima) ... (4.8a)
Zm = ^ ~K0(mR) (4.8b)
It is interesting to know the error if the cable of finite radius is replaced by a filament
conductor placed along its axis. For p = 10O— m (low earth resistivity), a = b — 7.5cm (large
radii), and a separation of 30 cm, values which perhaps represent a worst case, the errors in
the resistance and inductance from equation (4.8b), as compared with equation (4.7), is plotted
in Figure 4.2.
From Figure 4.2 we see that the approximate formulae have an error of less than 29o, up
to \ma\ =? |m6| = 0.1. This happens at a frequency of IMHz. For much lower values, the
error is practically negligible. This result is important as it will be used in justifying the exten-
sion of formulae for filament conductors to cables of finite radii.
4 . 3 E a r t h R e t u r n Impedance in a Homogeneous S e m i - I n f i n i t e E a r t h
The self and mutual impedances of cables buried in semi-infinite homogenous earth are
deduced from the electric field strength in the ground due to a buried filament conductor.
- 53 -
w H
0)
o
c
1 0 1
—I-
t o
t o c u az
-3
10
25
15
cu
o
c
CO
o
T 3 C
-15
/
' Y
/
10"s 10" 10~3
I I I! I I ! I 1 T T1!| •-' !
10"2 10"'
\
'1 - T TTTT i
10'
-25 -f 1 1 I 1 Mll| I 1 I I I M i l 1 U I I I I I H l | 1 1 I 1 I Ml| 1 1 l l l l l l ,
10" 10" 10" 10" 10" 10- 10'
ma
Figure 4-2 - Error in Replacing a Conductor of Finite Radius
by a Filament Conductor
- 54 -
The electric field strength in the ground due to a buried insulated filament carrying a
current which returns through the soil was first deduced by Pollaciek [l). In fact, he derived
formulae for four cases:
(1) The electric field strength in the air due to a current-carrying conductor in the air.
(2) The electric field strength in the earth due to a current-carrying conductor in the air.
(3) The electric field strength in the air due to a current-carrying conductor in the earth.
(4) The electric field strength in the earth due to a current-carrying conductor in the earth.
The mathematical derivation in all four cases become complicated by the plane of discon-
tinuity at the earth's surface. Pollaczek [l] does not discuss the derivations and only mentions
that they have been obtained through the reciprocity of Green's functions.
Recently Mullineux [10,11,12] obtained expressions for the fields produced in air and earth
due to an overhead conductor by using double integral transformation. This technique is
equally applicable to buried cable systems [22], and is used in Appendix D to obtain the four
types of fields.
Comparisons between filamentary type conductors and conductors of finite radii for the
infinite earth give every reason to expect that these formulae in Appendix D for filament con-
ductors will be accurate enough for cables of finite radii provided that the condition | ma | <0.1
is satisfied. Hence, for the case of a buried cable at depth h, the electric field strength in the
soil resulting from a net current I flowing in the cable is given by equation (D.32(c)) in Appen-
dix D as:
E__ — | e x p [ - ( o
g + m2)\h-y\] - e X P [ - ( ^ + m2)\h + y\\
2(p- + m~)
+ r exp(-|ftlfyl VV+ttr) exp(jd>x )d<t> (4.9)
where . ' ; " .
x = horizontal distance between the filament and the point at which the field is being deter-
mined,
y = depth at which the field is being determined,
p = resistivity of the earth, and
m = intrinsic propagation constant of the earth.
The first integral term is identified as Jfc:0(mr?) - rTo(mZ)j [1,22]; where R = Vi" + (h-yf
and Z = V i s + (/i + y)2. The second integral part can be numerically evaluated [28] or
- 55 -
expanded into an infinite series [22]. The series expansion is in the form of modified Bessel
functions. Therefore, equation (4.9) can be written in the series expansion form as follows:
= -^~\KdmR) - K0(mZ) -f —K^mZ) + ^ "*^Ki\mZ)
In \ Z mZ
- } (* •+ ml)P-mt ~ ^ F(mZ,\x |,/)) (4.10)
where
F(mZ,\x\,l)= f f c V l ^ T 2 ^==r\e-mZtdt (4.11)
1/2 I Vl-t2 J
Now the earth return self and mutual impedance terms may be extracted from equation (4.10)
or from numerically integrating equation (4.9). The self impedance term is obtained by choos-
ing the coordinates z and y to correspond to the location of the external surface of the cable
and the mutual impedance by simply inserting the coordinates of the second cable axis .
The numerical integration of equation (4.9) is quite difficult as the solution is highly oscil-
latory. For example. Figure 4.3 shows the solution for the resistance and inductance of the
earth return self impedance at a frequency of 1MHz, for the cable discussed in Appendix A.
For such cases, special numerical integration techniques have to be applied [28]. The numerical
integration routine available in the UBC system library DCADRE [26], which uses a cautious
adaptive Romberg extrapolation technique, has been used in obtaining the solution for the
equation (4.9). The solution converges fast for the case when the two cables are buried at d i f -
ferent depths below the earth, but in the case when the cables are at the same depth or in the
case of finding the earth return self impedance, the convergence is rather slow. To explain this
phenomena, consider the first integral part on the right hand side of equation ( 4 . 9 ) , i.e..
e x p [-(*2 + m 2 ) |A- j , | ] - exp[-(cA2 + m2)\h + y\]
?(c*2 + mz) expO^x )</<•> ( 4 . 1 2 )
If h = y then the first exponential term within the closed brackets { } will become 1 and the
integration now becomes
j l - e xp[-(cr+m 2 ) | / i+y | j (<p2+m2)\h+y\ Uxp{j<t>x)d<t>
- 56 -
10
6-
T
o> o c
JO
V) o>
- 2
-6
-10
10'
50
£
o o c o
30-
10
o ~ 1 0 D
- 3 0
- 5 0
10'
A
V
1 "' '^f 1 T I 1 1 I 1 1 1 1 |
10 2 10 3
I I I i l l
\
\
\ /
7— ••T-",,T "I m I I I 1 I I I I i
10* 1CV
Interval
104
i i i i i i
104
Figure 4-8 - Solution of Real and Imaginary Part of Equation (4-9),
for a Frequency of 1MHz .
- 57 -
Even though the exponential term within the closed brackets { } approaches zero very
fast, we are left with
which causes the slow convergence.
On the other hand, if h^y then both the first and second exponential terms within the
brackets { } of equation (4.12) will approach zero and hence the convergence is faster.
Due to the slower convergence, the cpu time taken to compute the self impedance or the
mutual impedance in case of two cables buried at the same depth is relatively high. For the self
impedance, the computer cost varied between $.50 and $1.00, for one particular frequency.
However, the results obtained by applying the DCADRE integration routine to equation (4.9)
and the results obtained from equation (4.10) are almost identical, as shown in Table 4.1 for
the mutual impedance between two cables with the following data:
depth of cable 1, y = 0.75m
depth of cable 2, h = 0.76m
radial distance between the two cables = 0.5m
earth resistivity peyAh = 100/7— m.
Hence, from Table 4.1 we can see that the equation (4.10), which is the series expansion
for the classical equation (4.9) is accurate enough for practical purposes. Therefore, equation
(4.10) is takenas the standard equation for finding the self and mutual impedances of buried
cables in a semi-infinite earth, and the results obtained by the other formulae proposed by
Semlyen [24], Ametani [27], and Wedepohl [22] are compared with respect to it.
4.4 Formulae Used by Ametani, Wedepohl and Semlyen.
Ametani's approach is implemented in BPA's Cable Constant routine of EMTP, and is
based on Carson's formulae for overhead conductors. The self and mutual impedances of over-
head conductors with earth return effects can be derived from equation ((D.32(b)) Appendix C)
together with the relation E — — ZI.
In the case of overhead conductor at a height h from the ground, the electric field
strength in air at a point (whose height is y and which is at horizontal distance x from the con-
ductor) due to current / flowing in the conductor is given by
- 58 -
Table 4.1
Solution of Pollaczek'o Equation by Numerical
Integration and Using In finite Series
FREQUENCY
(Hz)
NUMERICAL
INTEGRATION
EQUATION 4.10
RESISTANCE (8/kr n)
.01
. 1
1
10
100
1 ,000
10,000
100,000
1,000,000
10,000,000
0.00000986985
0.00009870394
0.00098721243
0.00987746990
0.09894307000
0.99462669000 -
10.0999510000
105.026550000
1119.21050000
10416.7130000
0.00000986986
0.00009870399
0.00098721145
0.00987752230
0.09894471000
0.99467682000
10.1014090000
105.062940000
1119.73660000
10410.0480000
REACTANCE (fi/km
.01
. 1
1
10
100
1 ,000
10,000
100,000
1,000,000
10,000,000
0.00014814024
0.00133672137
0.01192043120
0.10477298900
0.90245276590
7.57239400000
61.8788630000
461.037952000
3018.40132100
13049.3294800
0.00014814024
0.00133672130
0.01192028400
0.10472980000
I 0.90245110000
! 7.57234170000
. 61.8625200000
460.988500000
3017.08610000
13031.2620000
= —
2x
ln(Z/R) + J (4.15)
fhere
Z - V i 2 + (A+y ) z ,
- 59 -
m = intrinsic propagation constant of the earth.
The integral part of equation (4.15) can be further simplified to
o U | + \ U 2 +• m2
(4.16)
Equation (4.16) is widely known as Carson's formula. Strictly speaking, this formula is only
valid for the case of overhead conductors. Ametani used this correction term in finding the
earth return self and mutual impedances of buried conductors, instead of the second integral
term used in equation (4.9).
Carson's formula given by equation (4.16) can be numerically integrated [28] or can be
expanded into an infinite series [5], in terms of r = | mZ \. Ametani chooses the latter
approach. His procedure uses 2 different series, one when r S 5 and the other one when r>5.
Recently, Shirmohamadi of Ontario Hydro [28] and L. Marti at UBC discovered that the error
between the numerical evaluation and the asymptotic expansion is as high as 5-8% as shown in
Figure 4.4, for the values of r between 5-10, depending on the value of 8.
) 0 0 0 4 0 0 0
r«CQUCNCT ( H i )
Figure 4-4 - Relative Error in the Evaluation of Carson's Formula
with an Asymptotic Expansion.
- 60 -
Shirmohamdi avoids this error by using Gauss-Legendre quadrature technique for the direct
evaluation of equation (4.13) in this region of r, while L. Marti [24] avoids these errors by
extending both the asymptotic and infinite series, and by using a switchover criterion which
depends on the geometry of the line (ie. on the value of 0).
The use of Carson's formula for underground systems will be reasonably accurate at low
frequencies because the value of m 2 with the exponent term exp(—| h+y\ Vc4 2+m 2) in equation
(4.9) is very small compared to the value of 4>z at low frequencies, and, therefore, can be
ignored. At high frequencies, however, that term becomes quite significant and, therefore, can-
not be ignored. For this reason, the resistance and inductance obtained by Ametani's method
has an error in the order of 10% or more for frequencies above lKHz when compared with
Pollaczek's equation, i.e., equation (4.9).
Wedepohl and Wilcox [22], who proposed the infinite series expansion form of equation
(4.9) gave an approximation to the infinite series expansion (equation (4.10)) which is valid only
if the condition |mZ| <0.25 is satisfied. Their closed-form approximation for the self and
mutual earth return impedances are given by:
Z, =
pm
2n
pm
2ir
.lnhHEl + 0 5 _ ± m h
2 3
•In— L + 0.5 ml
2 3
(4.17a)
(1.17b)
where
7 = Euler's constant,
h = depth of burial of the conductor,
I = sum of the depths of burial of the conductors,
R = V i 2 + (h-yf and
m = intrinsic propagation constant of the earth.
Semlyen and Wedepohl [24] developed another interesting formula for the self impedance
of a cable of radius r in terms of complex depth which is nothing but 1/m, defined here as p.
Accordingly, the self impedance term is given by
Zs = " ^ M r + V'r) (4.18)
- 61 -
4.5 Effect of Displacement Current and Numerical Results
So far. the effect of displacement currents has been ignored. As shown in Chapter 2 .
there is no noticeable error in the internal impedances of tubular conductor if displacement
currents are ignored. Hut unlike in good conductors, the displacement currents in the earth
arc noticeable, at least at high frequencies. The displacement current term can be easily incor-
porated in equation (4-10) by snbsti :ing Vm"-t> J/i( for in. Table 4.2 shows the values of
resistance and inclu;'. :nce with and without the displacement currents.
Tabic 4.2
Earth Return Self Impedance with and without
Displacement Current Term
FREQUENCY
(Hz)
WITH
DISPLACEMENT
CURRENT
WITHOUT
DISPLACEMENT
CURRENT
RESISTANCE (8/ki
.01
. 1
1
10
1 00
1 000
10 000
100 000
1 oob ooo
10 000 000
0 . 0 0 0 0 0 9 8 6 9 8 5
0 . 0 0 0 0 9 8 7 0 3 9 3
0 . 0 0 0 9 8 7 2 0 9 8 6
0 . 0 0 9 8 7 7 4 7 6 7 1
0 . 0 9 8 9 4 3 7 1 2 3 0
0 . 9 9 4 6 8 7 0 0 0 0 4
1 0 . 1 0 5 6 6 3 3 5 0 4
1 0 5 . 5 7 2 6 4 6 5 6 8
1 1 7 2 . 7 4 9 2 5 5 8 8
1 5 1 7 0 . 9 6 0 5 5 3 9
0 . 0 0 0 0 0 9 8 6 9 8 6
0 . 0 0 0 0 9 8 7 0 3 9 3
0 . 0 0 0 9 8 7 2 0 9 8 2
0 . 0 0 9 8 7 7 4 7 3 4 0
0 . 0 9 8 9 4 3 3 9 5 9 5
0 . 9 9 4 6 5 5 3 7 1 8 7
1 0 . 1 0 2 4 6 0 2 9 2 6
1 0 5 . 2 3 9 9 0 9 5 6 4
1 1 3 6 . 3 5 1 8 0 5 4 6
1 1 5 9 3 . 2 5 6 9 4 5 0
INDUCTANCE ("H/ nm)
o

—

o
o
-
o
o
o
-
O
O
O
O
O
-
O
O
O
O
O
O
—

•
o

O
O
O
O
O
O
O
 —
 —

— 2 . 8 2 4 7 8 6 9 2 8 4 4
2 . 5 9 4 5 1 9 8 3 7 3 7
2 . 3 6 4 2 3 4 1 5 0 9 9
2 . 1 3 3 8 8 9 7 4 4 4 6
1 . 9 0 3 3 5 9 8 2 7 5 6
1 . 6 7 2 2 4 5 2 5 3 7 4
1 . 4 3 9 3 0 2 4 4 3 3 3
1 . 2 0 0 8 0 3 8 4 1 19
0 . 9 4 7 1 2 6 1 4 3 5 7
0 . 6 4 9 8 0 3 4 1 2 1 4
2 . 8 2 4 7 8 6 8 9 7 1 2
2 . 5 9 4 5 1 9 7 9 2 9 7
2 . 3 6 4 2 3 4 1 1 6 6 1
2 . 1 3 3 8 8 9 7 1 3 3 2
1 . 9 0 3 3 5 9 7 9 9 1 6
1 . 6 7 2 2 4 5 2 0 0 2 0
1 . 4 3 9 3 0 1 5 6 5 1 4
1 . 2 0 0 7 8 3 2 9 1 3 9
0 . 9 4 6 9 4 2 4 2 9 6 3
0 . 6 6 8 2 2 9 4 1 7 1 8
- 62 -
The errors in the answers obtained by neglecting the displacment current arc shown in
Figure 4.5. The error in the resistance is less than 3% up to a frequency of 1MHz and
increases to 209o in the frequency range 1MHz- lOMHr.
o i_ k.
UJ
CD
o c
to
CO
CD
CC
- 2 5
- 5 -
-15
i i i IIIMI— n i ] — i i i i n n , — i i i M i n i — i i i inn, 1 i i mii| nil 1 i i mill i i i mil!
10~ 2 1 0 " 1 10' 10 2 10 J 10 4 10 5 10 6 io 7
Frequency [Hz]
Figure 4-5 - Error in the Earth Return Self Impedance
if the Displacement Current is Ignored
- 63 -
Hence, we can neglect the effect of displacement current terms up to a frequency of 1MHz
which is well within the limitsof practical interest.
The earth return self impedance is compared next for the following approaches, with the
displacement current term neglected:
1. Pollaczck's original formula,
2. Wedepohl's approximations, -
3. Ametani's approach,
4. Semlyen's approximation.
The value of resistance and inductance at different frequencies are tabulated in Table 4.3.
Figures 4.6(a) and 4.6(b) illustrate the variation of resistance and inductance in the frequency
range 0.001 Hz to 10MHz. The errors are plotted in Figure 4.7 for the same frequency range.
Wedepohl's approximation gives an error of less than 1% up to a frequency of 100kHz, for the
resistive part, thereafter it increases steadily. It is around 2 5 % at a frequency 1MHz. The
error in the inductive part is almost zero up to a frequency of 1MHz. The reason for the
noticeable error in the resistance, beyond a frequency of 100kHz, is that the condition
| mZ | <0.25 is violated. Semlyen's approximation is good at low frequencies for the resistive
part but at high frequencies the error is higher. It has an error of around 4% in the case of
inductive part over the whole frequency range. As mentioned earlier, the error i i i Ametani's
procedure is not significant at low frequencies, but increases from 2 % to 20% iu (.-be frequency
range 10kHz to 1MHz as shown in Figure 4.7.
Three routines were developed for the calculation of earth return self and mutual
impedances with Pollaczek's original formula. The part which is .difficult to evaluate is the
integral term F(mZ,\x\,l) (equation (4.11)) in equation (4.10).. This part can either be
expanded into a series with a suitable number of terms and each term can then be integrated,
or a suitable library subroutine for numerical integration can be used. Routine SEARTH
developed by the author uses the first approach by considering 15 terms. Routine LEARTH
developed by Luis Marti uses the UBC library subroutine DCADRE for the evaluation of the
integral. One more routine, namely CEARTH was developed by the author, which can take the
displacement current into account. This routine also uses the UBC library subroutine DCA-
DRE to evaluate the function discussed earlier. Routines SEARTH and LEARTH give identical
answers but differ in the cpu time. The former one takes 3.4 ms while LEARTH takes 2.9 ms
for the evaluation of resistance and inductance at a particular frequency. Routine CEARTH
takes 23.0 ms for the same evaluation. The routine for Ametani's approach takes 5.30 ms,
while the routines for Wedepohl's and Semlyen's approximations take 0.30 ms and 0.24 ms of
cpu time, respectively.
Table 4.S
Earth Return Self Impedance
as a Function Frequency
F R E Q U E N C Y P O L L A C Z E K W E D E P O H L A M E T A N I S E M L Y E N
(Hz)
R E ; > I S T A N C E (£2/1 cm)
. 0 1 0 . 0 0 9 8 8 2 5 0 . 0 0 9 8 8 2 5 0 . 0 0 9 8 7 7 5 0 . 0 0 9 8 8 2 5
. 0 1 0 . 0 0 0 0 0 9 9 0 . 0 0 0 0 0 9 9 0 . 0 0 0 0 0 9 9 0 . 0 0 0 0 0 9 9
. 1 0 . 0 0 0 0 9 8 7 0 . 0 0 0 0 9 8 7 0 . 0 0 0 0 9 8 7 0 . 0 0 0 0 9 8 7
1 0 . 0 0 0 9 8 7 2 0 . 0 0 0 9 8 7 2 0 . 0 0 0 9 8 6 7 0 . 0 0 0 9 8 7 0
1 0 0 . 0 0 9 8 7 7 5 0 . 0 0 9 8 7 7 5 0 . 0 0 9 8 6 1 8 0 . 0 0 9 8 6 9 2
1 0 0 0 . 0 9 8 9 4 3 4 0 . 0 9 8 9 4 5 7 0 . 0 9 8 4 5 1 9 0 . 0 9 8 6 8 4 0
1 0 0 0 0 . 9 9 4 6 5 5 4 0 . 9 9 4 8 5 6 1 0 . 9 7 9 5 2 6 3 0 . 9 8 6 5 7 8 4
1 0 0 0 0 1 0 . 1 0 2 4 6 0 1 0 . 1 1 9 2 8 8 9 . 6 5 6 4 6 8 0 9 . 8 5 7 5 3 1 3
1 0 0 0 0 0 1 0 5 . 2 3 9 9 1 1 0 6 . 5 9 1 7 2 9 3 . 4 9 8 2 7 0 9 8 . 3 1 5 0 5 3
1 0 0 0 0 0 0 1 1 3 6 . 3 5 1 8 1 2 3 6 . 6 4 3 8 9 1 3 . 0 3 2 1 4 9 7 4 . 9 9 1 2 3
1 0 0 0 0 0 0 0 1 1 5 9 3 . 2 5 7 1 7 7 6 5 . 2 8 8 1 0 8 2 6 . 0 5 8 9 4 9 8 . 8 3 9 4
I N I X J C T A N C E (mHy 'km)
. 0 1 2 . 8 2 4 7 8 6 9 2 . 8 2 4 7 8 3 8 2 . 8 2 4 7 9 1 7 2 . 7 0 1 6 0 4 8
. 1 2 . 5 9 4 5 1 9 8 2 . 5 9 4 5 1 6 7 2 . 5 9 4 5 4 1 8 2 . 4 7 1 3 4 6 7
1 2 . 3 6 4 2 3 4 1 2 . 3 6 4 2 3 1 0 2 . 3 6 4 3 1 0 5 2 . 2 4 1 0 8 9 5
1 0 2 . 1 3 3 8 8 9 7 2 . 1 3 3 8 8 6 6 , 2 . 1 3 4 1 3 7 8 2 . 0 1 0 8 3 5 2
1 0 0 1 . 9 0 3 3 5 9 8 1 . 9 0 3 3 5 6 4 1 . 9 0 4 1 5 0 1 1 . 7 8 0 5 8 9 8
1 0 0 0 1 . 6 7 2 2 4 5 2 1 . 6 7 2 2 3 8 6 1 . 6 7 4 7 4 1 4 1 . 5 5 0 3 7 2 9
1 0 0 0 0 1 . 4 3 9 3 0 1 6 1 . 4 3 9 2 6 2 9 1 . 4 4 7 1 0 6 4 1 . 3 2 0 2 4 5 9
1 0 0 0 0 0 1 . 2 0 0 7 8 3 3 1 . 2 0 0 4 1 1 8 1 . 2 2 4 5 1 5 7 1 . 0 9 0 4 0 3 2
1 0 0 0 0 0 0 0 . 9 4 6 9 4 2 4 0 . 9 4 2 9 8 1 3 1 . 0 1 2 6 2 2 8 0 . 8 6 1 4 5 9 7
1 0 0 0 0 0 0 0 0 . 6 6 8 2 2 9 4 0 . 6 2 6 7 9 7 5 0 . 7 9 6 2 6 8 9 0 . 6 3 5 3 5 6 5
4.6 Cables Burled at Depth Greater than Depth of Penetration
If the depth of burial is greater than the earth return current's depth of penetration, or
other words, if the distribution of return current is circularly symmetrical, then the cable c
be considered to be buried in an infinite earth. In practice, this can arise in two situations:
1. Cables arc buried at large depths below the ground,
\
- 05 -
POLLACZEK
WEDEPOHL
AMETANI
SEMLYEN
0_,j •• , , , , „ „ ....t r-^ >..nr
1 0" J 10" 1 10' io2 10
Frequency [Hz]
Figure 4.6(a),(b)
Earth Return Self Impedance
as a Function of Frequency
10' 105 10s 107
- 66 -
ui
25
15-
5-
o
-C <o - 5 .
CO
in
CD
or
-15
WEDEPOHL
AMETANI
SEMLYEN /
/
— 25 "1—1 i 1111111—1 1 11111 n 1 1 11 IIIII 1 1 1111111—1 1 1 . .1.11 1 1 . null—1 1 1 m i i | 1 1 1 i i u i | 1 1 1 m i r
10" 2 10"' 1 10' 10 2 10 J 10 4 10 5 10 6 10 7
25
15-
5-
LU
CD
o
c - 5 ra
o
T3
C
— -15
WEDEPOHL
AMETANI
SEMLYEN
>
— 2 5 ~f 1 1 T mrn r-i TTTTTTI 1 i 11 ini[ 1 i i itui] r - r r i - T T T T i r—r-rrrmj r i it ini] r i i rim\ r - r r m r t }
10~ 2 10"' 1. 10' 10 2 10 J 10 4 10 S 10 6 10 7
Frequency [Hz]
Figure 4- 7
Errors in Earth Return Self Impedance
- 6 7 -
2. C a b l e s are b u r i e d a t n o r m a l d e p t h s ( l - 2 m ) b u t a re u s e d a t h i g h f r e q u e n c i e s ( 1 0 0 k H z a n d
a b o v e ) .
In s u c h s i t u a t i o n s , t h e d e p t h o f p e n e t r a t i o n i n t h e e a r t h is g i v e n b y :
d = 5 0 3 . 3 \ / p e « u / / (4 .19)
( w h e r e d is in m , / is i n fi—m a n d / is i n H z )
a n d b e c o m e s s m a l l e r t h a n the d e p t h o f b u r i a l .
T h e s e c o n d p o s s i b i l i t y d o e s n o t a r ise n o r m a l l y i n p o w e r s y s t e m s t u d i e s . F o r a t y p i c a l
u n d e r g r o u n d t r a n s m i s s i o n s y s t e m , w i t h a n e a r t h r e s i s t i v i t y o f 10 J ? — m , a n d a b u r i a l d e p t h o f
l m , t h e f r e q u e n c y a t w h i c h the p e n e t r a t i o n o f t h e r e t u r n c u r r e n t in t h e e a r t h b e c o m e s less
t h a n l m is 3 M H z o r h i g h e r . In p o w e r s y s t e m s , o n e r a r e l y e n c o u n t e r s s u c h f r e q u e n c i e s . If s u c h
c a s e s d o a r i s e , h o w e v e r , the in f in i te e a r t h r e t u r n i m p e d a n c e f o r m u l a e g i v e n b y e q u a t i o n (4.2)
a n d (4.7) c o u l d be u s e d t o find the e a r t h r e t u r n i m p e d a n c e s .
It is i n t e r e s t i n g t o k n o w w h e t h e r e q u a t i o n (4 .10) f o r t h e s e m i - i n f i n i t e c a s e is s t i l l v a l i d if
the b u r i a l d e p t h is l a r g e . T h i s c a n be c h e c k e d as f o l l o w s :
If the e a r t h r e s i s t a n c e is a s s u m e d t o be 10 17— m, t h e n t h e d e p t h o f p e n e t r a t i o n g i v e n b y
e q u a t i o n (4.19) wi l l be less t h a n 5.5 m , f o r f r e q u e n c i e s 0.1 M H z a n d h i g h e r . H e n c e , i f a
c a b l e is b u r i e d at a d e p t h o f 5 . 5 m , t h e n t h e v a l u e s o b t a i n e d f o r e a r t h r e t u r n se l f a n d
m u t u a l im p e d a n c e s , u s i n g t h e e q u a t i o n s (4 .2) o r (4.7), s h o u l d be t h e s a m e as t h o s e
o b t a i n e d u s i n g e q u a t i o n (4.10) f o r f r e q u e n c i e s a b o v e 0 . 1 M H z . F i g u r e 4.8 s h o w s t h e d i f f e r -
e n c e in the v a l u e o f r e s i s t a n c e o b t a i n e d b y P o l l a c z e k ' s f o r m u l a a n d e q u a t i o n (4.2) f o r t h e
e a r t h r e t u r n se l f i m p e d a n c e in t h e f r e q u e n c y r a n g e 1 0 k H z t o 1 M H z . T h e d i f f e r e n c e
d e c r e a s e s f r o m 1 9 % t o less t h a n 1 % w h i l e t h e d e p t h o f p e n e t r a t i o n d e c r e a s e s f r o m 1 5 . 9 m
t o 1 .59 in . H e n c e , it a p p e a r s t h a t P o l l a c z e k ' s f o r m u l a is c o r r e c t e v e n a t l a r g e d e p t h s o f
b u r i a l e v e n t h o u g h it is b e t t e r t o use t h e e q u a t i o n s (4.2) a n d (4.7) f o r t h e c a s e o f i n f i n i t e
e a r t h [9,22].
S u b r o u t i n e T U B E has a n o p t i o n f o r finding t h e in f in i te e a r t h r e t u r n se l f i m p e d a n c e , b u t it
c a n n o t be u s e d for f i n d i n g the m u t u a l i m p e d a n c e . T h e r o u t i n e T U B E C d e v e l o p e d b y the
a u t h o r has o p t i o n s f o r finding b o t h se l f a n d m u t u a l i m p e d a n c e s , a n d c a n t a k e d i s p l a c e m e n t
c u r r e n t s i n t o a c c o u n t as we l l .
4.7 M u t u a l I m p e d a n c e B e t w e e n a C a b l e B u r i e d i n t h e E a r t h a n d a n O v e r h e a d L i n e
o r V i c e V e r s a
A n o t h e r i m p e d a n c e o f i n t e r e s t t o p o w e r e n g i n e e r s as we l l as t o c o m m u n i c a t i o n e n g i n e e r s
is t h e m u t u a l i m p e d a n c e b e t w e e n a n u n d e r g r o u n d c a b l e a n d a n o v e r h e a d l ine o r v i c e v e r s a .
T h e e l e c t r i c field s t r e n g t h s in a i r d u e t o a c u r r e n t c a r r y i n g c o n d u c t o r b u r i e d in the e a r t h
- 68 -
c u u c
CD
CU u c
CO
to
CO
cc
2 0
1 2 -
"* 4 -
-4
- 1 2
- 2 0 +
104 10s
Frquency [Hz]
- i — i — • I I I
106
Figure 4.8
Differences in Resistance Values of Semi-Infinite
and In finite Earth Return Formulae
or the field Zs_+ in earth due to a current-carrying conductor in the air is given by Equations
(D.32(b)) and (D.32(d)), respectively, in Appendix D. In both cases the mutual impedance is
given by:
0 e x p j - / i | c*| -dV<t>2+ m 2j
exp(j>| x | )d<f>
| c6| + V(t>2+m2
•where
A = height of the conductor in air,
d = depth of burial of the buried conductor,
| i | = the horizontal distance between the conductors,
m = intrinsic propagation constant of the earth.
This integral can be evaluated in terms of infinite series in somewhat the same way as
was done for E + + in [4,27] and for E__ in [22].
- 69 -
4.8 Conclusion
To summarize, the self and mutual impedances of conductors with earth return were
derived for two situations, namely for ' •
1. Cables buried in infinite earth, and for
2. Cables buried in semi-infinite earth.
The impedances were obtained from the axial electric field strengths in the earth due to return
currents in the ground. These electric field strengths were derived from Maxwell's equations,
for filamentary type conductors of negligible radius. Since we were interested in cables of finite
radius, the solutions for filamentary type conductors were extended to cables of finite radius.
The solutions for the earth return impedance with semi-infinite earth is in infinite
integral form. Wedepohl [22] transformed this infinite integral equation into an equation con-
sisting of Bessei functions. It was found that the values obtained from the numerical integra-
tion of the infinite integral and from Wedepohl's transformation were very close. Ametani's
approach for finding earth return impedances which is implemented in Cables Constants rou-
tine in the BPA's EMTP and other approximations suitable for hand calculations were com-
pared for typical cable data. Ametani's approach gave erroneous results at high frequencies
due to an erroneous assumption. Wedepohl's approximation was found to give reasonably
accurate answers and is well suited for hand calculations.
At the end of the chapter, the evaluation of mutual impedance between a buried conduc-
tor and overhead conductor, and vice versa, is briefly discussed.
- 70 -
5. Laminated Tubular Conductors
In Chapter 3, formulae for internal impedances of homogeneous tubular conductors were
derived. These formulae are used in this chapter to obtain the impedances of cables whose
core and sheath are made up of laminated conductors of different materials. A practical appli-
cation of this type of conductor was recently proposed by Harrington [32]. He suggested that
the transient sheath voltage rise in a gas-insulated substation can be reduced by coating the
conductor and sheath surfaces with high-permeability materials, thereby increasing the
impedance of the surfaces for surge propagation, which in turn will damp out high frequency
transients.
5.1 Internal Impedances of a Laminated Tu b u l a r Conductor
The internal impedances needed for laminated conductors are the same as those needed
for homogeneous conductors, namely:
1. The internal impedance z0(J of the laminated tubular conductor which gives the voltage
drop on the inner surface when unit current returns through a conductor inside the tube.
2. The internal impedance zbb of the laminated tubular conductor which gives the voltage
drop on the outer surface when unit current returns through a conductor outside the
tube.
5 . 1 . 1 Internal Impedance with External Return
Let us first number the layers consecutively with the inner most layer being number 1 as
shown in Figure 5.1. For the analysis, we start with the mth outer most layer shown in Figure
5.2.
Let
= internal impedance of the mth layer with current returning inside,
= internal impedance of the mth layer with current returning outside,
Z^ = mutual impedance between the two surfaces,
zbmh — internal impedance of all m layers when the current return is external
For the very first layer, we note that Zb[^ = z$\ If we use concentric loop currents as before in
Chapter 3, then the loop current 7m_, of the first m —1 layers combined, returns on the inner
surface of the mth layer, while loop current Im flows on the outer surface. Using Schelkunoff's
theorem 2 from Appendix B, the electric field strength along the inner surface of the mth layer
becomes
- 71 -
Axis
Layer (m-l)
Layer m
Figure 5.1 Numbering of Conductor Layers to Find the
Internal Impedances of a Laminated Tubular Conductor
r m
Figure 5.2 Representation of the mth Layer
dV
dx
— (ZTb lm %aa 'm-l) (5.1)
But the inner surface of the mth layer is the outer surface of the first m - l layers combined for
which the electric field strength is given by
. ~ zbi 'm-l
dx
Therefore we can find a relationship between I„ and /„_, from equations (5.1) and (5.2),
lm + Zli '
(5.2)
(5.3)
- 72 -
Now let us consider the electric Held strength on the outer surface of the mth layer. On
one hand it is — z^Im, and on the other hand it is —(ZbmtIm — Z^/ m _i) using Schclkunoff's
theorem 2. Thus we have the following identity:
m m m ^ m ~ *
Zbb = %bb ~ %ab ~~j . ' ' (5.4)
m
Substituting for 7m_i//m from equation (5.3), we obtain
• m _ 7m J^i! '/<:«;»
Zbb ~ *bb m , m - x ( o - 5 )
•^aa + f»6
which gives the internal impedance of all m layers of the laminated tubular conductor, with
current return on the outside. Starting with the first layer where z$ = Zby, we add the
remaininglayers one by one until we obtain the impedance of the complete laminated conduc-
tor made up of m layers.
(Zlb?
Z'at + Ab
Ab = ZU - „ , , • = 2, • • • m (5.6)
5 .1 .2 I n t e r n a l I m p e d a n c e w i t h I n t e r n a l R e t u r n
Similarly we can find the internal impedance of a laminated tubular conductor with
current returning inside. Let Z™, Zbmh and Z™b related to the same internal impedances defined
in the previous section. Let z*a be the internal impedance of all m layers when the current
return is internal. Also, we note that for the very last layer, i.e. layer m in Figure 5.1,
ZTa = zTn- Using Schelkunoff's theorem 2, we find the electric field strength along the outer
surface of the 1st layer as
= ~(Zb\h ~ Z,\lo) (5-7)
But the outer surface of the 1st layer is the inner surface of the rn —1 outer layers combined,
for which the1 electric field strength can be written as
= (5-8)
Therefore, we can find a relationship between I0 and Ix from equations (5.7) and (5.8),
/, za\
h Zt\ + z-
(5.9)
Now, consider the electric field strength on the inner surface of the first layer. On one hand it
is —{ — za\lo)t a n d o n t n e other hand it is — (Z^/i — Z}J0) using Schellkunoffs theorem 2.
Therefore we have the following identity,
- 73 -
= ZL ~ Z^-j- (5.10) 'o
Substituting for / j / / 0 from equation (5.9) we obtain
i _ . _ (^ )2
zaa ~ Zaa _] 2 ,5.11)
^bb
 +
 zat
which gives the internal impedance of all m layers of the laminated tubular conductor, with
current return on the inside. Starting with the last layer, i.e. layer m, where z™ = Z™, v.v add
the remaining layers one by one until the impedance of the complete conductor made up of m
layers is obtained,
IZ' )2
= -Zla ~ _, '* • » = m - l , m - 2 > - l . (5.12)
^lb + zaa
5.2 A p p l i c a t i o n to Gas-Insulated Substations
The equations for the internal impedance of laminated conductors will now be used to
obtain the surge propagation characteristics in a gas-insulated substation with conductor
coatings.
Gas-insulated substations are subjected to transient sheath voltage rises whenever switch-
ings or fault surges occur. These surges propagate along the outer surface of the inner conduc-
tor and the inner surface of the sheath, as if the two surfaces were cylindrical wave guides, as
well as along the outer surface of the sheath and the ground. The impedances of these surfaces
play an important role in attenuating the surges, and thereby the transient sheath voltage rise.
Since these surface impedances depend on the resistivity and the magnetic permeability of the
material, it has been proposed by Harrington [32], to coat these surfaces with material of high
resistivity and high permeability for surge suppression purposes. The coating should be such
that its thickness is less than its current penetration depth at power frequency (60Hz or 50Hz),
so that the resistance is not changed during steady-state operation. In addition to the base
case without coatings, three different coating configurations are examined. The four cases con-
sidered are as follows:
Core and sheath not coated.
i. Only the inner surface of the sheath coated.
ii. Only the outer surface of the inner core coated.
v. Both the outer surface of the inner core as well as the inner surface of the sheath coated.
For each of these cases, the formulae for the impedances for surge propagation arc
derived.
5.2.1 C A S E i : C ore and Sheath not Coated
Axis
Core
S h c a l h v/ssssss//////////////////////J^ J
Earth \ % , J
Figure 5.3 - Core and Sheath not Coated
This is the simplest of all the cases where the impedance for surge propagation in loop 1
is given by
Z = Z:rc + Z,ns + Ziht (5.13)
where Zcre ( core - with external return) can be obtaind from equation (3.3) if the core conduc-
tor is solid, or from equation (3.1b) if it is tubular. Z M S can be obtained from equation (2.11),
and Zih, (sheath - with internal return) from equation (3;.la).
5.2.2 C A S E i i : Only Sheath Coated
In this case the surface for the surge propagation consists of the outer surface of the core
conductor and the inner surface, of the laminated conductor made up of coating paint layer and
sheath. Hence, the impedance for surge propagation between core and sheath is given by
Z = Zcre + Z,ns + zll (5.14)
where Zcre and Z,ni are the same as explained for case i. zll is the internal impedance of the
laminated conductor with internal return. This is obtained from equation (5.12} where layer 1
is the sheath and layer 2 is the coating material (superscipt "sp" denotes the paint layer on
sheath and superscript "sh" denotes the sheath). Hence
- 75 -
Axis
Core
Paint
Sheath
Earth
Figure 5.4 Inner Surface of the Sheath only Coated.
sp\2
y*V - T V _
Zll + z, sk (5.15)
The total impedance Z can then be written as
Z — Z:rc + Zins + Zip,
(Zspm )2
zspc Zik,
(5.16)
where Zsp, (sheath coated with paint layer - with internal return) and ZsK, (sheath - with inter-
nal return) can be obtained from equation (3.1a). Zipm (mutual between sheath conductor and
paint layer) is found from equation (3.1c), and Zspe (sheath coated with paint layer - with exter-
nal return) from equation (3.1b). Equation (5.16) can also be derived from the loop equations
of the loops 1,2 (figure 5.4),
dx
oT's
~di~
= -(zj, + ZM
= ~(ZnIi:+ Z2I2) (5.17a,b)
where
V, = potential difference between the core and paint
= potential difference between the paint layer and sheath
Zms "** Zsp,
— Z2i Zspm
v2
Zi
zm
Z2 — Zipt + z$k,
Since the paint layer and the sheath are at the same potential we have V2 = 0. Hence from
equation (5.17b),
- 7 6 -
I2 = ( - Z m / Z 2 ) / 1
S u b s t i t u t i n g t h e v a l u e o f I2 i n t o e q u a t i o n (5 .16a) g i v e s
dV,
(5 .18)
(5 .19)
Therefore the impedance for surge propagation between core and sheath is given by
z = z, - —
or
7 - 7 _L 7 J - 7 _ ( ^ s y m
w h i c h is i d e n t i c a l w i t h e q u a t i o n 5 .16 .
5.2.3 C A S E i i i : O n l y C o r e C o a t e d
Axis
Sheath
Earth |
/ / / / / / / / / / / / / / / / / / / / / / / / / / / / / /
1,
Figure 5.5 Core Alone Coated
T h e s u r f a c e f o r s u r g e p r o p a g a t i o n i n t h i s c a s e c o n s i s t s o f t h e s u r f a c e o f t h e l a m i n a t e d
c o n d u c t o r ( m a d e u p o f c o r e a n d t h e c o a t i n g ) a n d t h e i n n e r s u r f a c e o f t h e s h e a t h . T h e
i m p e d a n c e f o r s u r g e p r o p a g a t i o n b e t w e e n c o r e a n d s h e a t h is t h e r e f o r e g i v e n b y
Z = z$ + Znt + Z a , (5 .20)
w h e r e Z , A , a n d Zint a r e t h e s a m e i m p e d a n c e s e x p l a i n e d e a r l i e r . z$ is t h e i n t e r n a l i m p e d a n c e o f
t h e l a m i n a t e d c o n d u c t o r w i t h e x t e r n a l r e t u r n . T h i s c a n be o b t a i n e d f r o m e q u a t i o n (5.6), w h e r e
l a y e r 1 is t h e c o r e a n d l a y e r 2 is t h e p a i n t o n c o r e ,
Substituting ztf into equation (5.20) gives
(Z )2
Z = Zcre - 7 + Z,ns + Ztk, (5.22)
where Zcre is the same as explained earlier. Z^ (core coated with paint layer - with external
return) can be obtained from equation (3.1b). Zcpm (mutual between paint layer and core con-
ductor) from equation (3.1c), and ZCfi (core coated with paint layer - with internal return) from
equation (3.1 a)
5 . 2 .4 C A S E i v : B o t h C o r e a n d S h e a t h C o a t e d
A x i s
Paint
Sheath
Earth
Figure 5.6 Core aa well as Inner Surface
of the Sheath Coated
In this case, the outside of the core and the inside of the sheath arc coated. The surfaces
for surgepropagation consist of.the surface of the laminated conductor 1 (made up of the core
and coating paint layer on the core conductor) and the inner surface of the laminated conduc-
tor 2 (made up of the sheath and the coating paint layer on the sheath conductor). The
impedance for surge propagation between core and sheath is given by
Z = z% + Zml + z?.
Using the values of z$ and z\\ from equations (5.15) and (5.21) Z can be written as
z zcpc + z,RS + Zipt (5.24)
where all the impedance values have been explained earlier.
- 78 -
R e s u l t s
Two coating materials arc considered, i.e., stainless steel and supermalloy. These routing
materials would be applied iu the form of paints. The bus duct of the gus-"insuiatccl substation
is assumed to have the dimensions given in Figure 5.7.
Axis
.
Sheath w/////r7/777777777777777777>
C
\/77//7777777777777777//777777/,
Earth j
-ORCR
IRCR
-IRSH
ORSH
Figure 5,7 Dimensions of the Bus Duct in a Gas-htsulatcd Substation
Inner radius of the core, IRCR = 10.0mm
Outer radius of the core, ORCR = 65.0mm
Inner radius of the sheath, IRSH = 350mm
Outer radius of .the sheath, ORSH = 380mm
The values of relative permeability and resistivity of the coating materials (stainless steel and
supermalloy) and of the core and sheath material (aluminium) are given in Table 5.1.
5 . 2 . 5 S t a i n l e s s S t e e l C o a t i n g
The skin depth for a particular material is given by
6 = V2p /M/ i (5.25)
- 7 9 -
Table 6.1
Resistivity and Relative Permeability of Coating Materials
T Y P E MATERIAL
RELATIVE
PERMEABILITY RESISTIVITY
Core and Sheath Aluminum 1.0 2.62E-08
Paint
(a)
(b)
Stainless Steel
Supermalloy
1500.0
100 000.00
4.70E-07
0.00E-07
Using the values of relative permeability and resistivity for "stainless steel, the skin depth at
various frequencies was calculated and tabulated in Table 5.2.
Table 5.2
Skin Depth of Stainless Steel
FREQUENCY
(Hz)
SKIN DEPTH
(mm)
10.0 2.81723
60.0 1.15013
100.0 ; 0.89089
1 000.0 0.28172
10 000.0 0.08909
Since the thickness of the coating should be very much smaller than the skin depth cf the
material at normal operating frequency, coating thickness of 0.1mm and 0.5mm were assumed
to be practical values. Figures 5.8(a) and (b) show the variation in resistance and inductance
for a coating thickness of 0.1mm and Figures 5.9(a) and (b) for a coating thickness of 0.5mm.
— 6 U "
100
10
E
c
in
a) rr 0.1
0.01
0.001
C A S E 1
CASC 2
CASE_3
C A S E 4
1CT 10" 10' 103 103 10'
Frequency [Hz]
10s 10' 10'
x
O.B-
0.6
c o
o o.*
~o
c
0-2.
0-+
10"
\
\ \
w CAST 1 CASE.. 2
C_ASE_3
CASE ^
• 10- 10' 10J 105 10'
Frequency [Hz]
•10s 10* 10'
Figure 5.8(a),(b) Variation of Resistance and Inductance
•with Frequency for the Four Cases;
Stainless Steel Coaling, Thickness 0.1mm.
- 82 -
5.2.6 Supermalloy Coa t i n g
The high resistivity and high permeability of supermalloy make its skin depth very small
even at low frequencies, as shown in Table 5.3.
T a b l e 5.3
Skin Depth of Supermalloy
FREQUENCY
(Hz)
SKIN DEPTH
(mm)
1.0 1.23281
10.0 0.38985
60.0 0.15915
100.0 0.12328 *
1 000.0 0.03898
10 000.0 0.01233
Since the coating thickness should be smaller than the skin depth at normal operating fre-
quency, it would be necessary to keep the coating thickness to less than 0.1mm. Figures
5.10(a) and (b) show the variation of resistance and inductance with frequency for a coating
thickness of 0.01 mm and Figures 5.11(a) and (b) for a coating thickness of 0.05mm respec-
tively.
5.2.7 Comparison between Stainless Steel and Supermalloy Coatings
For the case of stainless steel, we note from the figures 5.10(a) that there is no noticeable
difference in the resistance up to a frequency of 100Hz for all four cases if the coating thickness
is 0.1mm. Beyond that it increases sharply for cases 2, 3 and 4 as compared to the base case.
When the coating thickness is increased-to 0.5mm, the differences are pronounced at frequen-
cies as low as 1Hz, as shown in Figure 5.11(a). This indicates that the coating thickness should
not be increased beyond 0.1mm, since it would change the resistance at steady state operating
frequency (50Hz or 60Hz) too much, and thereby increase the losses as well as the operating
temperature.
Due to the high permeability of stainless steel, the inductance is very high for cases 2, 3
and 4 as compared to case 1, as shown in Figures 5.10(b) and 5.11(b). However, the increase in
inductance should not cause any problems in bus ducts which are very short compared to the
length of transmission lines.
- 83 -
\
£ ^ \ \ C A s e 2
\
c o
y 2 •o c
\ 5 X \
CASE 1
<2 \
i - 3~ V LAIL3.
CASE i
10"2 10" 1 10' 10J 105 10." 105 10' 10
Frequency [Hz]
Figure 5.10 (a) and (b) Variation of Resistance and Inductance
with Frequency for the Four Cases;
Supermalloy Coating, Thickness 0.01mm.
- 84 -
1000CH
1000-
100-
E
u c D
tn
ca
10-
0.1.
0.01.
0.001J
CASE 1
CASE 2
1CT1 10"'
2 0 -
10' 102 103
Frequency [Hz]
10' 105 10s 1 0 '
\
15-
E
<u 10-
u c o
"o 3 -
"D
C
X \
\
CASE 1
CASE 2
CASE_3
CASE *
0 +
10" 10" 10' .10* 10J 10"
Frequency [Hz]
10* 10e 10'
Figure 5.1l(a),(b) Variation of Resistance and Inductance
with Frequency for the Four Cases;
Supermalloy Coating, Thickness 0.05mm.
- 85 -
In the case of supermalloy, due to its higher resistivity and very lur^e permeability the
coating thickness should not be increased beyond 0.01mm for the same reasons explained ear-
lier for stainless steel.
The practicality of stainless steel or supermalloy coatings for surge suppression has been
questioned by Boggs and Fujimoto [32]. Such coatings may, be cost effective. Using highly
resistive materials such as steel for the entire sheath has been considered as well. This would
be feasible with single-point ground, which would prevent currents from circulating through the
sheath, thereby avoiding sheath losses. However, single-point grounding has adverse implica-
tions for transient ground rise, however. If switching surges are produced, transient overvol-
tages would appear at many points within the gas-insulated substation.
5.3 Conclusions
The internal impedances of tubular laminated conductors have been derived. These equa-
tions are used to find the internal impedances of bus ducts in gas-insulated substations whose
core and/or sheath are coated with high-resistivity paints for the suppression of surges.
- 86 -
6. TEST CASES
T h e i n t e r n a l i m p e d a n c e f o r m u l a e f o r t u b u l a r c o n d u c t o r s a n d t h e e a r t h r e t u r n i m p e d a n c e
f o r m u l a e w e r e d i s c u s s e d i n d e t a i l i n C h a p t e r s 3 a n d 4, r e s p e c t i v e l y . T h e s e i m p e d a n c e s m a k e
u p t h e e l e m e n t s o f s u b m a t r i c e s [ Z „ ] a n d [Zi}\. In t h i s c h a p t e r t h e v a l u e s o f t h e s e s u b m a t r i c e s
a r e o b t a i n e d f o r a s p e c i f i c u n d e r g r o u n d c a b l e s y s t e m , u s i n g t h e e x a c t f o r m u l a e as we l l as
a p p r o x i m a t i o n s .
T h e a p p r o x i m a t e f o r m u l a e p r o p o s e d b y W e d e p o h l [22] a g r e e v e r y c l o s e l y w i t h t h e e x a c t
f o r m u l a e a n d t a k e v e r y l i t t le c p u t i m e . T h e y a l s o p r o v i d e s i m p l e e x p r e s s i o n s f o r h a n d c a l c u l a -
t i o n p r u p o s e s . T h e r e f o r e o n l y t h e a p pr o x i m a t e f o r m u l a e p r o p o s e d b y W e d e p o h l [22] a re c o n -
s i d e r e d in th is c h a p t e r . T h e r e s u l t s a re a lso c o m p a r e d w i t h v a l u e s o b t a i n e d f r o m t h e C a b l e
C o n s t a n t s r o u t i n e in t h e E M T P , w h i c h w a s d e v e l o p e d b y A m e t a n i [27].
6.1 S i n g l e C o r e C a b l e
T h e i m p e d a n c e s o f a s ing le c o r e c a b l e a re g i v e n b y a 2X2 m a t r i x o f t h e f o r m
m =
w h e r e al l e l e m e n t s were d e f i n e d e a r l i e r in C h a p t e r 3 . W i t h t h e d a t a o f t h e t e s t c a s e d e s c r i b e d
in A p p e n d i x A , t h e v a l u e s o f t h e s e e l e m e n t s w e r e o b t a i n e d f r o m t h e e x a c t f o r m u l a e , f r o m
W e d e p o h l ' s a p p r o x i m a t i o n f o r m u l a e a n d f r o m A m e t a n i ' s C a b l e C o n s t a n t r o u t i n e , as t a b u l a t e d
in T a b l e 6 .1 . F i g u r e s 6.1 d e p i c t s t h e e r r o r s in A m e t a n i ' s a n d W e d e p o h l ' s a p p r o x i m a t e f o r m u -
lae f o r the i m p e d a n c e Z.c. F i g u r e s 6.2 a n d 6 .3 , r e s p e c t i v e l y , s h o w t h e e r r o r s f o r the i m p e d a n c e s
Zs. a n d Zss T h e e r r o r s in A m e t a n i ' s a n d W e d e p o h l ' s f o r m u l a e a re n o t s i g n i f i c a n t at low f re -
q u e n c i e s , b u t f o r h i g h e r f r e q u e n c i e s t h e y c a n n o t be n e g l e c t e d . W e a l s o n o t i c e t h a t the e r r o r s in
Zcc, ZCi a n d ZS! a l l h a v e s i m i l a r v a l u e s . T h e y are e s s e n t i a l l y c r e a t e d b y the e r r o r s in the e a r t h
r e t u r n f o r m u l a e u s e d b y A m e t a n i a n d W e d e p o h l , as s h o w n in F i g u r e 4 .7 . A s m e n t i o n e d e a r l i e r ,
W e d e p o h l ' s a p p r o x i m a t e e a r t h r e t u r n f o r m u l a is v a l i d o n l y i f t h e c o n d i t i o n \ mZ \ <0.25 is s a t i s -
fied. T h i s is o n l y t r u e at low f r e q u e n c i e s . A t h i g h f r e q u e n c i e s , t h e i n t r i n s i c p r o p a g a t i o n c o n -
s t a n t m , b e c o m e s l a r g e r , a n d th is c a u s e s t h e e r r o r s in the r e s u l t s . T h e e r r o r s a lso i n c r e a s e i f
t h e s e p a r a t i o n b e t w e e n t h e c a b l e s b e c o m e s l a r g e r .
T h e r e a s o n s f o r the e r r o r s in A m e t a n i ' s e a r t h r e t u r n i m p e d a n c e f o r m u l a e at h i g h f r e q u e n -
c ies h a s a l r e a d y been d i s c u s s e d in C h a p t e r 4 .
z. (6.1)
- 87 -
T a b l e 8.1
Impedances of a Single Core Underground Cable.
Zee (fi/km)
E X ; AME1 ' ' A N I W E D E : P O H L
F R E Q
(Hz)
R X R X R X
1
10
100
1000
10000
100000
. 0 1 0 8 7 3
. 0 2 0 0 8 4
. 1 1 9 3 0 3
1 .05509
1 0 . 4 8 0 3
1 0 8 . 2 4 0
. 0 1 6 0 8 2
. 1 4 6 2 9 9
1 . 3 0 4 5 6
1 1 . 4 7 5 9
9 9 . 6 8 4 3
8 3 9 . 8 4 8
. 0 1 0 8 7 3
. 0 2 0 0 6 9
. 1 1 8 8 0 5
1 .03996
1 0 . 0 3 4 3
9 6 . 4 9 7 3
. 0 1 6 0 8 3
. 1 4 6 3 1 5
I . 30504
I I . 4916
1 0 0 . 1 7 5
8 5 4 . 7 6 1
. 0 1 0 8 6 8
.020081
. 120114
1 .05626
1 0 . 4 9 8 3
1 0 9 . 5 9 3
. 0 1 6 0 9 3
. 1 4 6 4 1 6
I . 30506
I I . 4759
9 9 . 6 8 2 2
8 3 9 . 6 1 4
Zcs (£2/ km)
1
10
100
i o o o
10000
100000
. 0 0 0 9 8 7
. 0 0 9 8 7 8
. 0 9 8 9 5 4
. 9 9 5 7 1 7
10 .2001
1 0 6 . 4 3 0
. 0 1 5 0 9 7
.136501
1 .22016
1 0 . 7 4 9 4
9 2 . 8 2 9 5
7 7 5 . 5 2 4
. 0 0 0 9 8 7
. 0 0 9 8 6 2
. 0 9 8 4 6 5
. 9 8 0 5 9 0
9 . 7 5 4 1 4
9 4 . 6 8 7 6
. 0 1 5 0 9 8
. 1 3 6 5 1 6
1 .22066
10 .7651
9 3 . 3 2 0 1
7 3 0 . 4 3 8
. 0 0 0 9 8 7
. 0 0 9 8 7 8
. 0 9 8 9 5 6
. 9 9 5 9 1 9
1 0 . 2 1 7 0
1 0 7 . 7 8 2
. 0 1 5 0 9 7
.136501
1 .22016
1 0 . 7 4 9 4
9 2 . 8 2 7 2
7 7 5 . 2 9 1
i
Zss Wl im)
1
10
100
1000
10000
100000
.300151
.309041
. 3 9 8 1 1 2
1 .29438
10 .4531
106 .361
. 0 1 5 0 8 3
. 1 3 6 3 5 4
1 .21869
1 0 . 7 3 4 7
9 2 . 6 9 6 9
7 7 5 . 5 1 8
. 3 0 0 1 5 0
. 3 0 9 0 2 5
. 3 9 7 6 1 2
1 . 2 7 9 2 5
10 .0071
9 4 . 6 1 8 0
. 0 1 5 0 8 3
. 1 3 6 3 6 9
1 .21919
1 0 . 7 5 0 4
9 3 . 1 8 7 5
7 9 0 . 4 3 2
.300151
.309041
. 3 9 8 1 1 5
1 .29458
1 0 . 4 7 0 0
1 0 7 . 7 1 3
. 0 1 5 0 8 3
. 1 3 6 3 5 4
1 . 2 1 8 6 9
1 0 . 7 3 4 7
9 2 . 6 9 4 6
7 7 5 . 2 8 5
- 88 -
50
30-
1 0 -
u c
« -10
cn
io
cu rr
- 3 0
/
7
AMETANI
WEDEPOHL
— 5 0 \ i i i Mini i i i nun —n T T T T T T T J — i T I i t i i T f nr T T H T T T ; T-TTTTTTT] r i i mit| " i T T m n | " i i r i t i n
10~ 2 1 0 " 1 10' 10 2 10 3 10 4 10 5 10 6 10 7
20
12
4-
01
o
c to
u
ca cu CC
-4
-12
\
AMETANI
WEDEPOHL
-20 1 III Mini i i i mi l l i i i IIIIII i i i m m i i i i i u i i — i i 11mil i i 11iui| i i 11mil i i 11mi
10" 2 10"' 1 10 1 10 2 10 5 10 4 10 s 10 6 10 7
Frquency [Hz]
Figure 6.1 - Errors in Ametani's and Wedepohl's Approximations in Zcc
- 89 -
50
30-
0)
u c
tn
cu
tc
10-
-10-
- 3 0 -
/
/
AMETANI
WEDEPOHL
— 50 1 T ITTIfH ' I '1 M l l T i r I 'T I 1 i m ] ' ~ T ' T T T T m r T"T T^TIITf I ' T l T n i l } ' 1 I 1 11'ltT) 1 "TTTTnTJ I I T'H'ffl
10"2 10"' 1 10' 102 103 104 10s 106 107
20
12
cu o c
CO
*-> o ra
CD
CC
- 4 -
-12-
\
AMETANI
WEDEPOHL
— 20 | i i 1 1 — i i i IIIIII I i i M i n i 1 i i m i l l 1 i . I I I I I I — i i i M i n i 1 i I M i n i — i i i u t i i | i l l M i n i
10"2 10"' 1 10' 102 10J 104 105 106 107
Frquency [Hz]
Figure 6.2 - Errors in Ametani 'a and Wedepohl's Approximations in Za
- 90 -
LU
5 0
30-
10
co
u
« - 1 0
+—<
m
cc
- 3 0 -
/
/
AMETANI
WEDEPOHL
—50 | I I I I I I I I I i i i I I I I I I — i i i I I I U I i i 11uii| i i 1 1 m i l I i 11uii|—> i i I I I I I I I I I I I I I I I — i i i i n n 1
TO" 2 1 0 " ' 1 1 0 ' 1 0 2 1 0 3 10" 1 0 5 1 0 6 1 0 7
2 0
CD
u
c
to
o
co
CD
at - 1 2
AMETANI
WEDEPOHL
—20 I I I I n i M | i i i i i i i i ,
1 0 " 2 1 0 " ' 1
rrm] 1 i i i i n i j i i I I I I I I ; I I I I I I M I I I I I I I I I ) I I I I I I I I I I i i m i q
1 0 ' 1 0 2 1 0 3 10" 1 0 S 1 0 6 1 0 7
Frquency [Hz]
Figure 6.3 - Errors in Ametani's and Wedepohl's Approximations in Z,
- 91 -
6.2 Three-Phase Cable
In the case of a three-phase cable system, the series impedance matrix is given by
1*1-
\Zn\ |Z 1 2] \ZK)
\2A \z*\
(0.2)
where [Z„] is the self impedance submatrix of cable i as given by equation (0.1). The mutual
impedances between cable i and cable j are represented by submatrix |Z t ;] of the form:
Z - .f . Z r r •
Zj.ry Zs.s.
(0.3)
As shown in Chapter 2, all four.elements of submatrix are equal to each other. The values
from the exact formula (4.10) and from Ametani's and Wedepohl's approximate formulae are
tabulated in Table 6.2 for the three-phase cable system described in Appendix A.
T a b l e 6.2
Mutual Impedance between Two Cables with
Burial Depth of 0.7om and Separation of 0.80m.
Z i j (fi/kin)
E X ; ^ C T AME*] rANI WEDI 3POHL
FREQ RES REA RES REA RES REA
1
10
100
1000
10000
100000
.000987
.009877
.098943
.994644
10.1015
105.154
.012562
.111152
.966670
8.21457
67.5095
525.238
.000987
.009862
.098452
.979517
9.65569
93.4318
.012563
. 111167
.967169
8.23027
68.0000
540.150
.000987
.009878
.098946
.994856
10.1193
106.592.012562
.111151
.966668
8.21452
67.5070
525.000
- 92 -
5 0
3 0
O ) 0
UJ
cu o
li -to-
cn
cn
tn
- 3 0 H
- 5 0 —i—n: TTTT. i—r^rrrrrrr-
10~2 10"'
5 0
3 0 -
O 1 0 -
UJ
cu o c
0>
CC
- 1 0
- 3 0
/
/
AMETANI
WEDEPOHL
ni 1 i i I I I I I I 1 11 MM; 1 \ i i mi, 1—i t mil, 1—t 11 nn'
1 10' 10 2 10 3 10 4 10 S 10 6 io 7
\
AMETANI
WEDEPOHL
5 0 -f 1 i i mii| 1 i i inn, 1 i i mii| 1 i i iiiiii 1 i ' mii; 1 i mm, 1 i i i nn; 1 , 1 1 ""1 ' 1 11""
1 0 - 2 10" 1 10' 10 2 10 S 10 4 10 S 10 6 10 7
Frequency [Hz]
Figure 6.4 - Errors in Ametani's and Wedepohl's Approximations
in the Mutual Impedance between Two Cables.
- 93 -
The errors in Ametani's and Wedepohl's approximate formulae are plotted in Figure 6.4.
The reasons for the errors are essentially the same as those discussed in Section 6.1.
6.3 Shunt Admittance Matr ix
The elements of the shunt admittance matrix obtained from Ametani's Cable Constant
routine in the EMTP shows that the relative permittivity t is assumed to be real and con-
stant. As explained earlier in Chapter 2, the relative permittivity is complex as well as
frequency-dependent, but this data is usually difficult to obtain. A real, constant permittivity
should give reasonable answers in many cases.
- 94 -
7. CONCLUSION
Various formulae proposed in the literature for the series impedance and shunt admit-
tance matrices of underground cable systems have been compared in this thesis. The elements
of the series impedance matrix are evaluated from formulae for the internal impedance of tubu-
lar conductors and from formulae for the earth return impedance. Exact equations for the
internal impedance of tubular conductors were first derived by Schelkunoff [6j. They are given
in terms of modified Bessel functions, and are therefore not suitable for hand calculations.
Since then closed-form approximations suitable for hand calculations have been proposed by
many authors, including Schelkunoff. A comparison of these approximate formulae shows that
the formulae proposed by Wedepohl [22] give answers which are usually accurate enough for
engineering purposes. With computers being almost universally available nowadays, approxi-
mate formulae are no longer that important, however, and programming the exact formulae
may therefore be the best approach.
The displacement current term is usually neglected in the formulae for the internal
impedances of conductors. It is shown that it can indeed be neglected for frequencies up to
10MHz. The shielding effect of grounded sheaths is explained as well, and it is shown that it is
implicitly accounted for in the mutual impedances.
The permittivity of the insulating material is needed for the elements of the shunt admit-
tance matrix. Its value is frequency dependent as well as complex. In some cases, (e.g., cross-
linked polyethylene), the permittivity can be assumed to be constant and real up to very high
frequencies, while in other cases (e.g., oil-impregnated paper) the changes with frequency are
quite significant. Two insulating materials, namely cross-linked polyethylene and oil-
impregnated paper, are discussed in detail because they are the materials most often used in
power cables. A general formula for the complex permittivity of insulation materials is given
by Bartnikas [15], based on the relaxation time of the dielectric material. Ametani's Cable
Constants routine in the E M T P [27] assumes that the permittivity is real and constant which
may not always be accurate enough.
The earth return impedance formula derived by Pollaczek [l] for the case of a semi-
infinite earth is valid only for filamentary type conductors of negligible radius. This formula
can be used for a conductor of finite radius a, if the condition | mo | <0.1 holds. This condition
is satisfied up to a frequency of 1 MHz even for a worst case low earth resistivity of 10 fl— m.
Hence Pollaczek's formula is recommended as the accurate formula. Values obtained from
various approximate formulae and from Ametani's Cable Constants routine in the E M T P were
compared against Pollaczek's formula. The results agree closely at low and medium frequen-
cies but significant differences arise at high frequencies.
- 95 -
Equations for the internal impedances of a laminated tubular conductor have been derived
from the equations for homogeneous tubular conductors. They are used to study the increase
in the surface impedances of bus ducts in gas-insulated substations if the conductors are coated
with high-resistivity magnetic material. This coating technique has been proposed by Harring-
ton [32] for reducing the transient sheath voltage rise during switching operations, although
others have criticized it as impractical, [discussion 32]
- 96 -
A P P E N D I X A
Test Examples for Buried Cables
Earth
d,
G A x'- x»
Figure A.l - Three-Phaae Cable Setup for the Study
Each cable is of a single core type with dimensions as given below
conducting sheath
central
conductor
insulation
Figure A.2 - Basic Construction of each tingle core cable
di,d2,dt
X12
X ja
= 0.75m, depth of burial of each cable
= 0.30m, horizontal distance between cables 1 and 2
= 0.30m, horizontal distance between cables 2 and 3
*2
Peon
P- r core? r shea.tb»
/ ' f ex r tb ' / ' r i l r
0.0234m, radius of the core
0.0385m, inner radius of the sheath
0.0413m, outer radius of the sheath
0.0484m, outside radius of the cable
100 fl—m, resistivity of the earth
1.7X10"8J?-m resistivity of the core material
2.1xi0"7/?-m resistivity of the sheath material
= 1.0, relative permeability of the core, sheath, earth, and air respectively.
- 98 -
A P P E N D I X B
Internal Impedances of a Tubular Conductor
Based on tbc work of Schelkunoff [6], the derivation of the internal impdance formulae for
tubular conductors is summarized here.
B.l Circularly Symmetric Magnetic Fields
In polar coordinates, Maxwell's equations assume the following form:
dllz
rd<*>
3//r
dz
dz
dHz
= (\lp + »"toe)E,,
= (l/> + i<ai)Et,
3Ez
rd(j>
3E,
dz
dEt
dE,
— — iliifiH,
= —ioifill^
ifdlrHJ 3H,\ 1 (9[rE4) ^ dEt\
— 1 — — ' = + i«e)E r. T T f = ~
r ( dr d<p ) r { dr 3<t> )
(B-1)
where H and E are electric and magnetic field strengths, respectively. Here we are interested
in the circular magnetic field around conductors, with its lines of force forming a system of
coaxial circles. Such circular magnetic fields are associated with currents flowing in isolated
wires, as for example in a single vertical antenna, or between the conductors of a coaxial cable,
as shown in Figure B.l.
Figure B.l - The relative directions of the field components
in a coaxial transmission line.
- 99 -
From equation (B.l) we see that when the quantities are independent of the angle <f>, one of the
independent subsets composed of the 1st and 3rd equation on the left of equation (B.l),
together with the 2nd equation on the right, define the circular magnetic field strengths as fol-
lows:
dlrllA
. - (1/p + i<at)rE, (B.2a) or
a,
dE2 dE
-(l/p + itoe)Er (B.2b)
iattH4. (B.2c) dr dz
It has been shown by Schelkunoff that H^,Er and Ez have components which vary exponentially
along the longitudinal axis of the cable, i.e., along the z axis in Figure B.l. If we express the
exponential variation of the quantities E,,EZ and as E,eCr*, Eze~Tz and H^,e~r', then the
quantities E,,E2 and H# are functions of r only. Substituting these values into equation (B.2)
we obtain
Er = f • H4 (B.3a)
dE,
iuuHt = —— + TE, (B.3b)
dr^—A. = (Up + iu>f)rE, (B.3c)
dr
where the quantity T is called the longitudinal propagation constant. Now solving for H# from
Equation (B.3), we obtain
where m2 = I ' co 2/ze|. This quantity m is called the intrinsic propagation constant of
I P
the conductor material. For solid conductors, the term u>2ut which accounts for the displace-
ment current is negligibly small compared to the conduction current. Hence we can neglect it
up to quite high frequencies. The intrinsic propagation constants of metals are relatively large
quantities even at low frequencies as shown in Table B.l for copper.
- 100 -
Table B.l
Propagation Constant of Commerical Copper
p = 1.7 X 10" 8tt-m
iH,) y/a){i/p = | m |
0 0.0
1 21.40
10 87.67
100 214.00
10,000 2140.00
1,000,000 21400.00
100,000,000 214000.00
On the other hand, the longitudinal propagation constant T is relatively very small, even at
high frequencies. For example, if air is the dielectric between the conductors T will be of the
order of (l/3)ia>10~10. Hence, even at high frequencies T 2 is negligibly small by comparison with
m2. Therefore, we can write equation (B.4) as
d2H* i dH,
dr' dr sT
 = mXH*
The solution for Ht of equation (B.5) is in the form of Bessel functions given by:
Alx{mr) + BK^mr)
(B.5)
(B.6)
Since we are interested in longitudinal voltage drops, we must find the longitudinal elec-
tric field stength first. This can be obtained from equation (B.3) and (B.6) along with the fol-
lowing rules of differentiation for modified Bessel functions of any order n,
dx
_d_
dx
(x*Kn)= -x*Kn.x
(B.7a)
(B.7b)
The solution for the longitudinal electric field strength then becomes
- 101 -
E, = pm\AI0(mr) - BK0{mr)\ (B.8)
In a tubular conductor whose inner and outer radii are a and b, respectively, coaxial
return path for the current may be either outside or inside the tube or partly inside and partly
outside. We designate Zt as the internal impendance of the tubular conductor with internal
return and Zb as the internal impedance with external return. If the return path is partly
internal and partly external, we have in effect a two-phase transmission line with a distributed
transfer impeduace Zab between the two loops of internal and external return.
In order to determine these impedances, let us assume that a total current (/, + /.) is
flowing in the tubular conductor, with part /„ returning inside and part Ib returning outside.
Figure B.2 - Loop Currents in a Tubular Conductor
Since the total current enclosed by the inner surface of the conductor is — Ia and that enclosed
by the outer surface is Ib (70 + Ib — /„), the magnetic field strengths at these two surfaces take
the values ( — Ia/2na) and (Ib/2nb) respectively. Hence from equation (B.6) we have
A/,(7»io)+ M,(ma) = -lJ2na (B.9a)
A li(mb) + BKx(mb) = Ib/2r.b (B.9b)
From these two equations the values of A and B can be evaluated as
2-naD 2nbD
= _ /»/»("») ( B 1 0 b )
2naD 2xbD
where
- 102 -
D = r1(mb)k1(ma) - I^majk^mb) (B.II)
Substituting these values in (B.7) and using the identity /„ (z)/C"i(z) + K0(x)Ix(x) = 1/x,,
we obtain the longitudinal electric field strength at any point on the conductor. However, we
are interested in its' values at the surfaces as they constitute the surfaces of propagation.
Hence, equating r successively to a and 6 we obtain
E,(a) = ZJa + ZabIb (B.12a)
E,(b) = ZcbIa + ZbIb (B.12b)
where
2naD
7 - Pm
Z> ~ 2xbD
7 = P
[irimajK^mb) + /v"0(mo)/,(m6)
^/ 0(m6)K'i(r7ja) + AT0(m6)/1(ma) j
2nabD
Schelkunoff stated these results in the following two theorems.
(B.13)
Theorem 1
If the return path is wholly external (Ia = 0) or wholly internal (/;, = 0), the longitudinal
electric field strength on that surface of a tubular conductor which is nearest to the return
path equals to the corresponding surface impedance per unit length multiplied by the total
current flowing in the conductor and the field strength on the other surface equals to the
transfer impedance per unit length multiplied by the total current.
Theorem 2
If the return path is partly external and partly internal, the separate components of the
field strength due to the two parts of the total current are calculated by the above theorem
and added to obtain the total field strength.
- 103 -
A P P E N D I X C
Calculation of Earth Return Impedances
in an Infinite Homogeneous Earth
If the return current distribution in the ground is circularly symmetrical, then we refer to
such a case as infinite earth. This happens in practice when the cables are either buried at
large depth or when the frequency is very high. In both cases, the penetration depth d given
by 503 • I t ) m, becomes smaller than the depth of burial. Then only the earth medium
must be considered, which simplifies the solution. If the cables are buried close to the earth's
surface on the other hand, which is usually the case, then the distribution of current in the
ground is no longer symmetrical (at least at low frequencies), and the magnetic field both in air
and earth must then be considered which makes the solution more complicated.
Consider a cable lying along the Z-axis of the cartesian coordinate reference frames as
shown in Figure C . l . Let the positive direction be along the Z-axis, and let the conductor
carry a current I flowing in the positive direction returning through the ground. Let the radius
over the outer insualtion be a. From Ampere's Law (neglecting the displacement current term)
the magnetic field strength H at a radius r & o is given by
2-nrH = I + J 2nrJdr
i.e.
T
H = —+-fjrdr (C.l)
2nr rJ v
where J is the current density in the ground.
Suppose that the earth is subdivided into concentric cylindrical shells of radius r and
thickness dr in which the current density / and magnetic field strength / /are constant. Then
the magnetic flux per unit length of such a shell is given by
d<f> = BdA = ulldr (C.2)
Substituting for H from equation (C.l) yields
dtp = udr -!-+±Jjrdr
2xr r •*
(C.3)
Now let us write Kirchhoff's voltage law around the rectangle ABCD of unit length and width
dr. The net resistive voltage drop is — ',|~^:~J^r a n c * t n e induced voltage is jmd<l> or jtaiilldr.
- 104 -
Figure C.1 - Representation of a Buried Conductor
in an In finite Earth.
Since the sum of these two voltages must be zero, we obtain
dJ
— p dr + jtauH dr = 0
dr
Substituting for//from equation (C.1), we have
pdJ
dr
•dr + jtAfidr — + -fjrdr
2itr
= 0
(C.4)
(C.5)
Multiplying this equation by ~- and differentiating with respect to r we have
par
d2J + dJ_ _ jvuJ
dr2 rdr p
= 0 (C.6)
If we substitute m* for J f a > / i, then equation (C.4) can be written as
P
- 105 -
£ «•»««*. (C7)
and equation (C:6) can be written as
d2J . dJ
m
lJ = 0 (C.8)
dr' r dr
Equation (C.8) is immedately recognizied as a Bessel equation whose solution is of the form
/ - AI0{mr) + BK0{mr) (C.9)
We note that I0(x) approaches infinity as z approaches infinite. However, we cannot permit a
solution of J to increase indefinitely as r approaches infinity and we must conclude that ,4=0
PI-
Hence, equation (C.9) becomes
/ = BK0(mr) (C.10)
Using equation (C.7) we find a solution for the magnetic field strength H as
m2H = -BKAmr)m ( C l l )
Now applying the boundary condition that H = I/2ira in the ground immediately adjacent to
the cable, we obtain the value for the constant B from equation ( C l l ) as
B = ~ 2nal<!(ma) ( C ' 1 2 )
Using the equation E = pJ, the solution for the electric field strength at any point in the
soil is found to bepml K0{mr) .
E~~2*a K^ma) ( C 1 3 )
The earth return self impedance as well as the mutual impedance between two buried cables
can be deduced from this equation (see Chapter 4).
- 106 -
A P P E N D I X D
Calculation of Earth Return Impedances
in a Semi-Infinite Homogeneous Earth
The limited conductivity of the ground path for the return currents as well as conductor
skin effects result in the frequency dependence of the line parameters. The parameters of a
transmission line over a ground of perfect conductivity are given by textbook formulae, but the
earth return effects and skin effects need special treatment. While a complete solution of the
actual problem is impossible, on account of the uneven surface under the line and the lack of
conductive homogeneity in the earth, a solution of the problem, where the actual earth is
replaced by a plane homogeneous semi-infinite solid, gives reasonably accurate answers. The
same applied to the underground case, too.
The first step in finding the earth return impedances is to derive the respective longitudi-
nal electric field strengths. Let us first consider au overhead line and derive the electric field
strengths in air and in earth.
A y p
. (cc.h)
X
Earth
Q* (x.y)
Figure D.l - Current-Carrying Filament in the Air
Let medium 1, denoted by subscript 1, correspond to air and medium 2, denoted by subscript
2, correspond to earth. Let point P{a,h) correspond to the current-carrying filament lying
- 107 -
along the Z-axis of the Cartesian coordinate system. Let E+ + (x,y;a,h) be the electric field
strength in air at a point Q(x,y) and E- + (z,y';a,h) be the electric field strength in the earth at
a point Q'(x,y'). Note that the y axis is positive in the air and that the y' axis is positive in the
earth, as shown in Figure D.l.
From Maxwell's theory, the general equation for electromeganetic wave propagation is
given by
V 2E - V(V£) = - tovjtf (D.l)
where p,fi and e correspond to the respective medium to which this equation is applied. Using
assumption 4 (Chapter 2), we can say that VE — 0 in both air and earth. Hence, equation
(D.l) can be written as
V 2E - CO [It (D.2)
Now let us define the fields which we would like to derive as follows
E++ = E+ + z = Electric field strength in the air due to the current-carrying filament in the air
E-+ — E- + z = Electric field strength in the earth due to the current-carrying filament in the.
air
If we assume that a sinusoidal current I of angular frequency' o> is passing through a filament
concentrated at the point (a,h) in the x—y plane as illustrated in Figure D.l, then the current
density is zero everywhere in the air except at the point (a,h) where it is infinite. Such an
idealized situation can be represented by the Dirac delta function 5(x-^a) defined as
in such a way that
/ 5(x-a)dx = 1 ! (D.4)
— CB
which implies that if f(x) is continuous at x = 0 and bounded elsewhere [12]
J f(x)5(x-a)dx = f(a) (D.5)
Hence in the air, the current density can be expressed in the form
- 108 -
I6(x-a)S(y-h) (D.6)
Now keeping this result in mind and noting that we are interested only in the electric field
9EZ ' -strength along the Z-axis and = 0 (using assumption 2 from Chapter 2) equation (D.2)
can be written for the case of air as
d2E+ + d2E.+ 2
3z a By' m
2E++ + plmfIS(x — a)6(y — h) (D.7)
where
Pi
For the earth, equation (D.2) can be written as
a2£_ + a2E_+
dx2
• here
m2 =
= m|E_. (D.8)
I P2
2 2 — CO p i2
The solutions for E++ and E_+ should be obtained in such a way that they satisfy the follow-
ing boundary conditions:
1. Continuity of E at the surface.
Lim £++ = Lim E_+ — Lim £ _ + = /?0(say)
V - * 0 y — 0 jr'-+o
Vertical component of B is continuous at the surface
dx dx
Horizontal component of H is continuous at the surface
dE++ a£_+ aE_+
(D.10)
Pidy P2&y p-z^y'
(D.il)
The solutions for E+ + and E_ + can be found by using integral transform techniques. Taking
the Fourier complex transformation of equations (D.7), (D.8), (D.9) and (D.ll) with respect to
x, with 6 as the parameter, we obtain the following equations:
- 109 -
d 2 E + +
-62E^ + = m f E + + + /j,m 2/exp(-^a)%-A) (D.12)
<f 2 £..
-62E_ + + j ^ - mf E.+ - (D.13)
£ + + | y-0 — E-+ | Y ' - 0 — £ Q
1 dE+* j i d £ _ +
(D:14)
• 1 OD _ + I
Hi dy fi2 dy'
Now taking the Fourier sine transformation of equation (D.12) with respect to y with 0 as the
parameter, we have:
-62E^+ — 02 E+ + + 0EO = m 2 E + + + p^rn? Iexp{-j6a)sin{0h) (D.16)
i.e.,
(02 + C f ) E + + = 0EO - Plm2lexp(-jea)sin(0h) (D.17)
where Cf = 02 + m 2
Similarly, taking the Fourier sine transformation of equation (D.13) with respect to y'
with 0' as parameter, we have
- 0 2 E _ + + fl'2E.+ + /J*E 0 = m 2 £ _ + (D.18)
Hence
+ Cf)£_ + = £'E0 (D.19)
where C'| = t?2 + m 2 : .
Now, taking the inverse Fourier sine transformation of equation (D.17) with respect, to 0
we have
= E0exp( —C,y)
-•^ L/exp(-^a)|exp(-C 1 | / i-j/|)-exp(-C,|/ l+y | ) j (D.20)
Similarly, taking the inverse Fourier sine transformation of eqution (D.19) with respect to fl' we
have
F_+ = E0exp(-C2y) (D.20)
By taking the derivative of Z? +* with respect to y and the derivative of E_+ with respect to y.
- no -
and substituting in equation (D.l 5), we obtain the value of E0 as follows:
— P\fn f /exp( — j6a)exp{—Cxh)
ui
(C, + :—<7a)
u2
(D.22)
Substituting E0 in equation (D.20) and taking the inverse complex transformation with respect
to 0, we obtain the value of E + + as follows:
.2/ - [expf-C,| h-y | )-exp(-C 2| h +y |)]
2 C ,
exp{-C1\h+y\)
C. + — C2
exp(j6\ i - a | )d0 (D.23)
Similarly, substituting E0 in equation (D.21) and taking the inverse transformation with respect
to 6, we obtain the value of E. + as follows
Pimfl "r exp{— C^y — C1h}exp(j6\ x — a\)d6
E-+ = ~ J
2n
Ci + — C 2
U2
(D.25)
Now that we have derived the equations for the electric field strengths in the air and in the
earth due to an overhead conductor, we will turn our attetion to the case of an underground
conductor.
Electric Field Strength in the Air and in the Earth
due to Current Carrying Filament Buried in the Earth.
Let
= E--Z~ Electric field strength in the earth due to the current-carrying filament buried
in the earth.
E+. = is + _/= Electric field strength in the air due to the current-carrying filament buried in
the earth.
Similar to equations (D.7) and (D.8), Maxwell's equations for electromagnetic wave propagation
in air and earth respectively, for this case are given by,
d 2 £ + _ d2E+
dx5 By 2 = m , E , . y ^ O ,
(D.26)
- I l l -
H y
? (x.y)
x
_ i
• (x,y') .
p.- W)
Earth
Figure D.2 - Current Carrying Filament Buried in the Earth.
32E__ 82E__ , , .
+ — = m | £ _ _ + p2m2fS(x — a)5(y — h ) ax1 ay (D.27)
Similar to the procedure used in the derivation of fields and we solve for and
such that they satisfy the boundary conditions given by equation (D.9) through (D.l 1).
Hence we have
E+. =
p2m2I " e x p { — Cly — C2h)
2TT
-»- — C 2
?2
•xp{j6\x-d\ )d0 (D.28)
£•_ _ .= -
p2m2I
2n
[ e x p ( - C 2 | h'-y'\ )-exp(-C 2| h'+y'\ ]
2C,
exp(-C 2 | / i ' - r V | )
C, + —C2
»2
exp(jO \ x-a'\ )d8 (D.29)
If we assume that the relative permeability of air and earth are the same, i.e., uTl = u,2 then
- 112 -
ril = fi2 and we can show that the equations derived for E+ + ,E_ + ,E^_ and E+_ are the same
as those derived by Pollaczek [lj.
Now using the standard results
i \ c exp{—aV^-+m2}exp . . . , • ' _ • .
K0(mr)= J y x 9 \ y(jis)d3 (D.30) 2Vr+m2
where r = and whereK0 is the modified Bessel function of the 2nd kind and of the
zeroth order, we can write E+ + and E__ as follows:
E „ =
pm,2/ (
+ / ; = ( j t f | x - o » | )rfg \A2 + rnf + \ / V +
where /?, ~ V {T - af+(h - y?, Zx = V ( z - a ) 2 + (h+yf
pm2I (
— — j A ' o ( m 2 ^ 2 ) — KG(m2Z2)
r exp{-|j/+/i V^+m22}exP( + / . (j*l z - a |)««
— \A2 + m? + \A2 + ™ 2
(D.31(a,b))
where /?2 .=• V ( z - o ] ' + (A'=7P, Z 2 = V(z-a') 2 + (A'+^j2
Further using assumption 4 in Chapter 2, we can neglect the displacment current up to a
fairly high frequency, and also noting the fact that the resistivity of air, i.e., p, is very large, we
can conclude that the term mf ~0. This produces the final equations:
7(011 aI (
E++ = —UniZM
+ / ^ - ^ ^ " ^ ^ e x n l ^ l z - a l ^
— \ e\ + y/e2 + m2
E_+ = - joidol - exp{-A I 0\ -y'Ve2 + rn2} J w exp(;6l| z-a] )d8 2n |*| + \/e2+m2
- 113 -
2TT
1 (
-\l<0(m2R2)-K{
,{m2Z2)
e x p l - b ' + A ' l V<?2+m|}
\e\ + V^ +^ I
exp(j'tl| i - a ' | </0
jco/ip/ ; exp{-y | 6\-h\/e2 + m22}
E + _ = / e x p ^ | x - a | ) d *
2* — |*|. + V^+m|
(D.32(a.b,o,d))
- 114 -
[6
[7
[8
[9
REFERENCES
V. F. PoIIaczek, Ubrr das Fcld ciner un endlich langon Wechsel = Stromdurch flossenen
Einfachleitung, E.N.T., Band 3, Heft 9, 1926, pp. 339-360.
V. F. PoIIaczek, Uber die Induktionswirkungen ciner Wech selstromeinfachleitung, E.N.T.,
Band 4. Heft 1, 1927, pp. 18-30.
J. R. Carson, The Rigorous and Approximate Theories of Electrical Transmission along
Wires, Bell System Tech., Journal, January 1928, pp.11.
J. R. Carson, Wave Propagation in Overhead Wires with Ground Return, Bell System
Technical Journal, Vol. 5, 1926, pp. 539-554.
Carson, J. R., Ground Return Impedance - Underground Dire with Earth Return. Bell Sys-
tem Technical Journal, Vol. 8, 1929, pp. 94-98.
S. A. Schelkunoff, 77ie Electromagnetic Theory of Coaxial Transmission Line and
Cylindrical Shells Bell System Technical Journal, Vol. 13, 1934, pp. 522-579.
E. W. Kimbark, Electrical Transmission of Power and Signal, John Wiley Publication,
1949.
J. R. Carson and J. J. Gilbert, Transmission Characteristics of the Submarine Cable, Bell
System Technical Journal, July 1922, pp. 88-115.
D. J. Wilcox, Transient Analysis of Underground Cable System, Ph.D. Thesis, Manchester
Insititute of Science and Technology, 1974.
[10] N. Mullineux and J. Rl Reed, Images of Line charges and Currents, Proc. IEE, Vol. Ill,
No. 7, July 1964, pp. 1343-1346.
[ll] N. Mullineux. J. R. Reed and S. A. Soppitt, Present Mathematics Sylabuses and the
Analytical Solution of Field Problems - I and II, Electrical Engineering Education, Vol. 8,
1970, pp. 221-233, and pp. 289-298.
[12] J. P. Bickford, N. Mullineux and J. R. Reed, Computation of Power System Tratisients,
IEE Monograph Series 18, 1980.
[13] E. A. Clarke, Circuit Analysis of A.C. Power Systems, G. E. Advanced Engineering Pro-
gram Series, 1949.
[14] E. D. Sunde, Earth Conduction Effects in Transmission Systems, Dover Publication,
1968.
- 115 -
[15] R. Bartnikas and R. M. Eichchorn, Engineering Dielectrics - Vol. II A, ASTM publication,
STP 783, 1983.
[16] G . S. Stone and S. A. Boggs, Propagation of Potential Discharge Pulses in Shielded Power
Cable, IEE Conference on Electrical Insulation and Dielectric Phenomena, October 1982,
pp. 275-280.
[17] O. Breien and I Johansen, Attenuation of Travelling Waves in Single-Phase High Voltage,
Cables, Proc. IEE, Vol. 118, No. 6, June 1971, pp. 787.
[18] Hylten - Cavallius and S. Annestrand, Distortion of Travelling Waves in Power Cables and
on Power Lines, CIGRE, paper 325, 1962.
[19] H. W. Dommel, Line Constants of Overhead Lines and Underground Cables, EE 553
Notes, U.B.C.
[20] H. W. Dommel and J. H. Sawada, The Calculation of Induced Voltages and Currents on
Pipelines adjacent to A. C. Power Lines, Report submitted to B.C. Hydro, August 1976.
[21] H. Bocker and D. Olding, Induced Voltages in Pipeline close to High-Voltage Lines, (in
German) Elektrizitatsurintschaft, Vol. 65, 1966, pp. 157-170.
[22] L. M. Wedepohl and D. J. Wilcox, Transient Analysis of Underground Power Transmis-
sion Systems, Proc. IEE, Vol. 120, No. 2, Feb. 1973, pp. 253-260.
[23] L. Bianchi and G. Luoni, Induced Currents and Losses in Single-Core Submasive Cables,
IEEE Trans., PAS-95, Jan. 1976, pp. 49-57.
[24] H. W. Dommel, Overhead Line Parameters from Handbook Formulas and Computer Pro-
grams, IEEE Trans., PAS-104, Feb. 1985, pp. 366-372.
[25] Mathematical (or Special) Functions, Users Manual Computing Centre, U.B.C, April
1983.
[26] Integration (quadrature) Routines, Users Manual, Computing Centre, U.B.C, January
1984.
[27] A. Ametani, Performance of a Theoretical Investigation and Experimental Studies
Related to the Analysis of Electro-Magnetic Transients in Multiphase Power System
Cables, Report No. 1, submitted to B.P.A., Oregon, July 1976.
[28] D. Shirmohammadi and A. S. Morched, Improved Evaluation of Carson Correction Terms
for Line Impedance Calculations, Trans. Canadian Electrical Association (Engineering &
Operating Division), Vol. 24, 1985..
[29] Luis Marti, Improved Evaluation of Carson's Correction Terms for UBC's version of the
Line Constants Program, Department of Electrical Engineering, U.B.C, December 1984.
- 116 -
[30] I. I. Dommel, Program Documentation for Subroutine TUBE, May 1978.
[31] M. Nakergawa, A. Ametani and K. Iwamoto, Further Studies on Wave Propagation in
Overhead Lines with Earth Return: Impendance of Stratified Earth, Proc. IEEE, Vol.
120, No. 12, Dec. 1973, pp. 1521-1528.
[32] R. J. Harrington and M. M. El-Faham, Proposed Methods to Reduce Transient Sheath Vol-
tage Rise in Gas Insulated Substations, IEEE Trans. PAS-lOi, May 1985, pp. 1199-1206.
[33] R. A. Chipman, Theory and Problems of Transmission Lines, Shaum's Outline Series,
Shaum Publishing Company, New York.
[34] M. Abramowitz, I. A. Stegun, Handbook of Mathematical Functions, Dover Publications,
New York.
