CHAPTER 23 973

iodide must have an E configuration, because that C=C
unit has the E configuration in the product:

+
(E)
(E)
I
I


One of these organohalides must be converted into a
Gilman reagent and then treated with the other
organohalide. This leads to two possible synthetic
routes, both of which are viable:

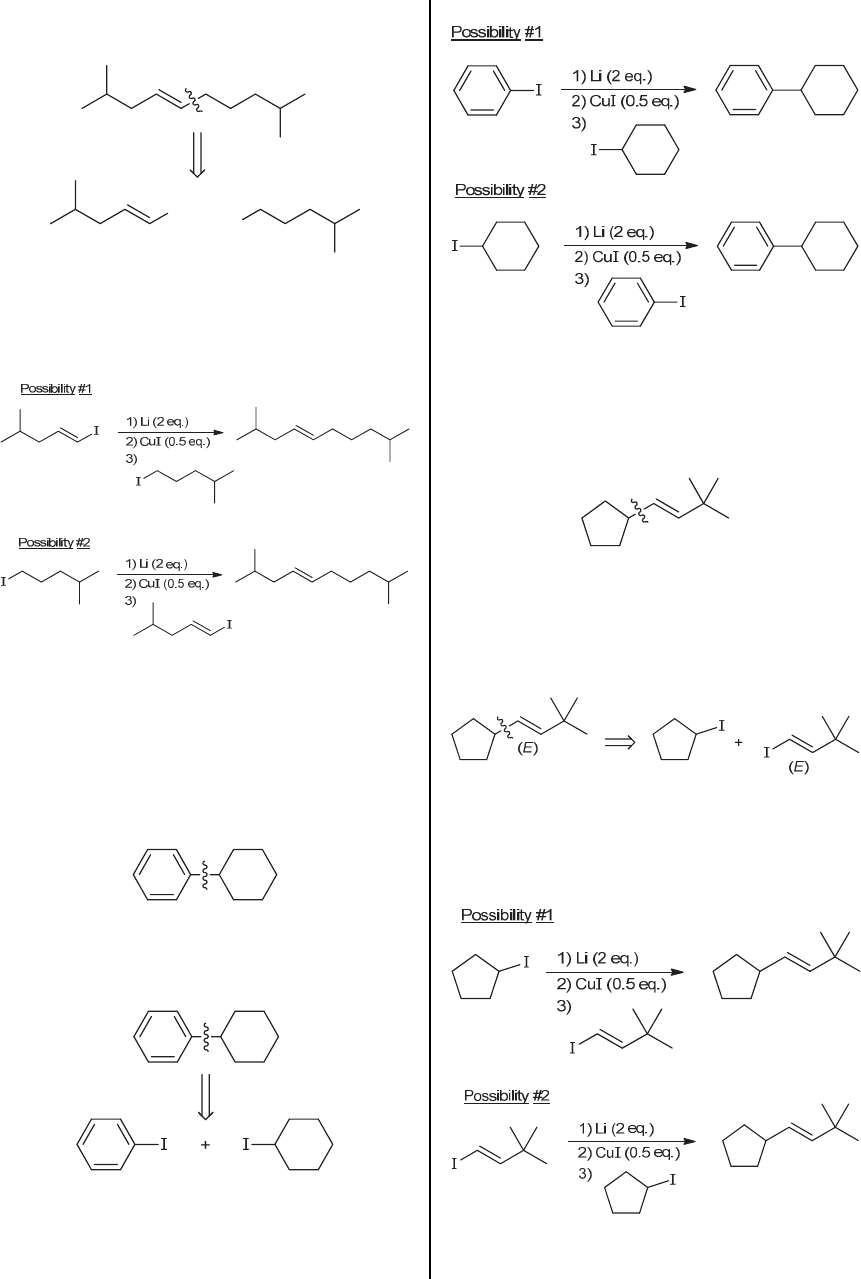

(b) First determine which bond (in the product) will be
made via a coupling process. The problem statement
dictates that each organohalide must have no more than 6
carbon atoms. Since the product has twelve carbon
atoms, that leaves us with only one choice, indicated
below with a wavy line:



Next, draw the two organohalides that are necessary for
the coupling process. In this case, we need cyclohexyl
iodide and iodobenzene, as shown:



One of these organohalides must be converted into a
Gilman reagent and then treated with the other
organohalide. This leads to two possible synthetic
routes, both of which are viable:




(c) First determine which bond (in the product) will be
made via a coupling process. The problem statement
dictates that each organohalide must have no more than 6
carbon atoms, so we select the following bond (six
carbon atoms on one side and five on the other):



Next, draw the two organohalides that are necessary for
the coupling process. In this case, we need cyclopentyl
iodide and a vinyl iodide. Note that the vinyl iodide
must have an E configuration, because that C=C unit has
the E configuration in the product:


One of these organohalides must be converted into a
Gilman reagent and then treated with the other
organohalide. This leads to two possible synthetic
routes, both of which are viable:



23.9.
(a) First determine which bond (in the product) will be
made via a coupling process. The problem statement
