CHAPTER 15 553



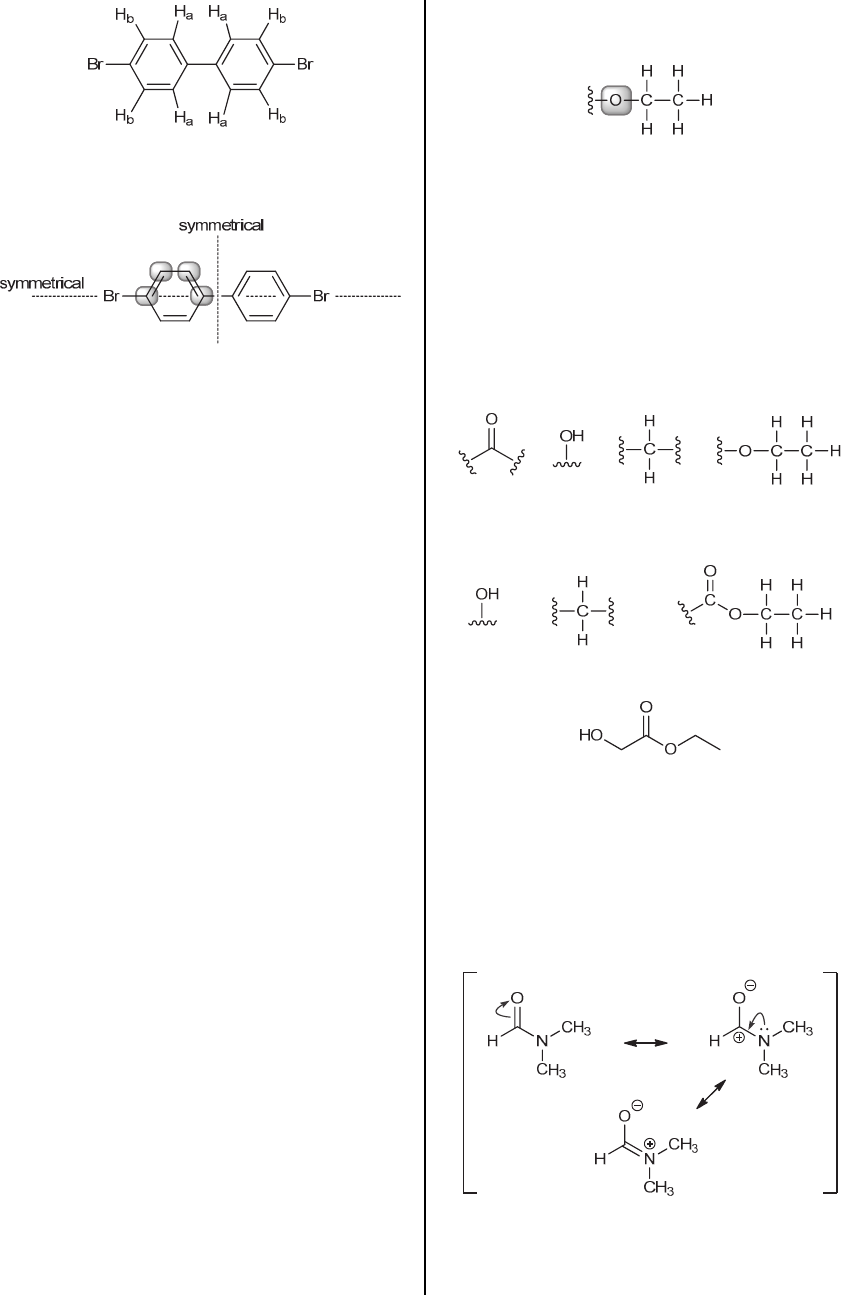

This structure is consistent with the carbon NMR
spectrum, in which there are only four signals, all of
which are aromatic:


15.70.
(a) The height of the (M+1)+• peak indicates that the
compound has four carbon atoms (1.1% for each carbon
atom). Since the parent ion appears at m/z = 104, we
know that nearly half of the molecular weight is due to
carbon atoms (12 x 4 = 48). The rest of the molecular
weight (104 – 48 = 56) must be attributed to oxygen
atoms and hydrogen atoms. There is a limit to how
many hydrogen atoms there can be, since there are only
four carbon atoms. Even if the compound is fully
saturated, it could not have more than 10 protons (2n+2,
where n is the number of carbon atoms). Oxygen has an
atomic weight of approximately 16. Therefore, the
compound must contain at least three oxygen atoms
(otherwise we could not account for the rest of the
compound using hydrogen atoms alone). But the
compound cannot contain more than three oxygen atoms,
because four oxygen atoms have a combined atomic
weight of 64, which already blows our budget, even
before we place any hydrogen atoms (remember that our
budget for O and H atoms is a total mass of 56). So, we
conclude that the compound must have exactly three
oxygen atoms. The remaining weight is accounted for
with hydrogen atoms, giving the following molecular
formula: C4H8O3.

(b) The molecular formula (C4H8O3) indicates that the
compound has one degree of unsaturation, so the
structure must either have a ring or a double bond.
In the IR spectrum, the broad signal between 3200 and
3600 cm-1 is characteristic of an O-H bond, and the
signal at 1742 cm-1 is likely a C=O group of an ester.
In the proton NMR spectrum, there are four signals. By
comparing the heights of the S-curves, we can see that
the relative integration values are 2:2:1:3. With a total of
eight protons (as seen in the molecular formula), these
relative integration values correspond precisely to the
number of protons giving rise to each peak. The signal
just above 1 ppm corresponds to three protons, and is
therefore a methyl group. Since this signal is a triplet, it
must be next to a methylene (CH2) group. The signal for
that methylene group appears as a quartet, just as
expected (since it is next to the methyl group) above 4
ppm. The location of this signal indicates that the
methylene group is likely next to an oxygen atom (since
it is shifted downfield). So far, we have the following
fragment:


Now let’s explore the remaining two signals in the
proton NMR spectrum. The signal at approximately 3.6
ppm (with an integration of 1) vanishes in D2O,
indicating that it is the proton of the OH group
(confirming our analysis of the IR spectrum). The
singlet just above 4 ppm has an integration of 2, and
therefore corresponds with an isolated methylene group
(no neighbors). This methylene group is shifted
significantly downfield, and our structure will have to
take this into account.
In summary, we have the following fragments, which
must be assembled.



Since the C=O bond is likely part of an ester (based on
the IR spectrum), we can redraw the following three
fragments:


These fragments can only be assembled in one way:



This structure is consistent with the carbon NMR
spectrum, in which there is one signal for the C=O unit,
two signals between 50 and 100 ppm (both of which
must be methylene groups, based on the DEPT
spectrum), and one signal between 0 and 50 ppm
(representing the methyl group).

15.71. N,N-dimethylformamide (DMF) has three
resonance structures:



Consider the third resonance structure, in which the C-N
bond is a double bond. This indicates that this bond is
expected to have some double bond character. As such,
there is an energy barrier associated with rotation about
