CHAPTER 16 593

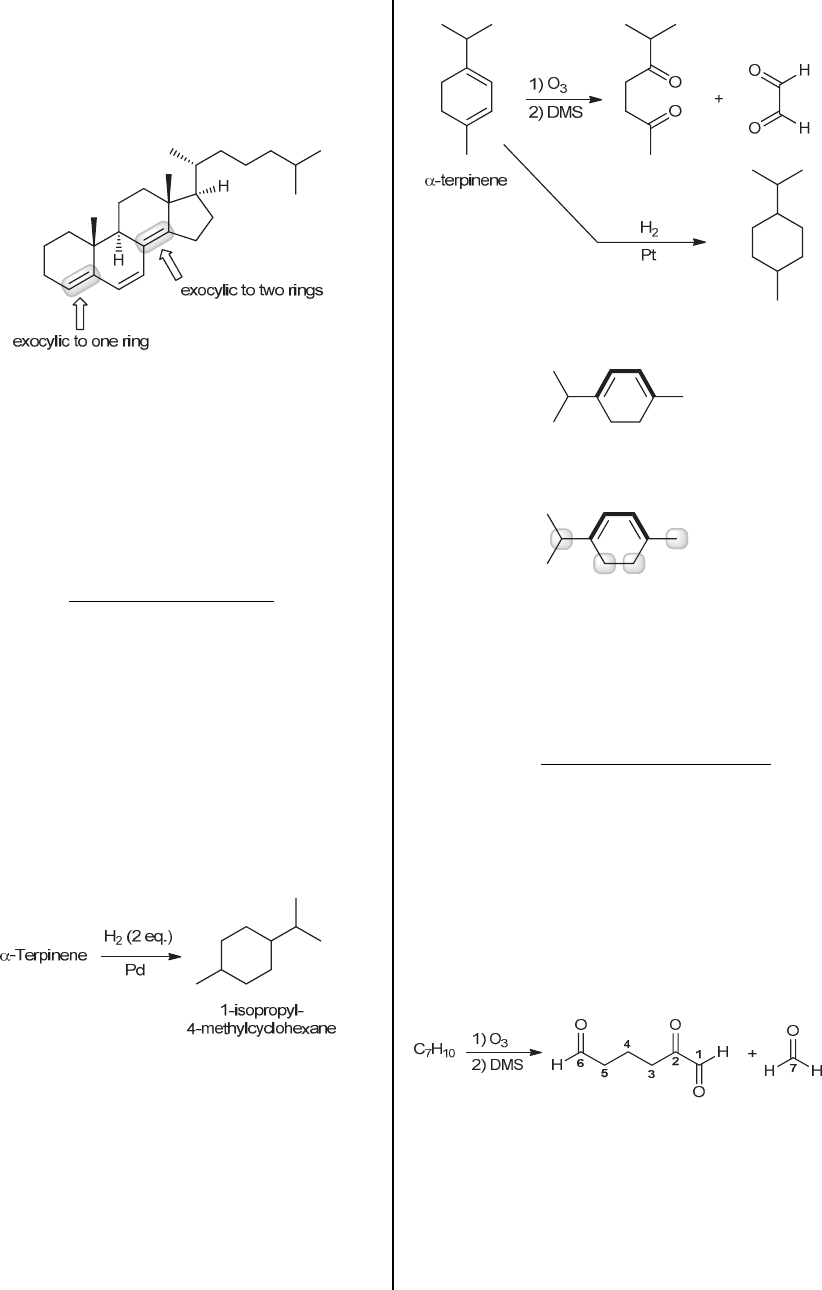

Next, look for exocyclic double bonds. In this case, two
double bonds (highlighted below) are exocyclic. One of
the double bonds is exocyclic to two rings giving a total
of three exocyclic relationships that each add +5 for a
total of +15.



Finally, look for a homoannular diene. There appears to
be no ring that has two double bonds contained wholly
within it, so no adjustment is required for this compound.
In summary, the following calculation predicts a max of
approximately 287 nm:

 Base = 217
 Additional double bond (1) = +30
 Auxochromic alkyl groups (5) = +25
 Exocyclic double bonds (3) = +15
 Homoannular diene (0) = 0
 Total = 287 nm

This prediction is in fairly good agreement with the
experimentally observed value of 283 nm.


16.60.
(a) α-Terpinene reacts with two equivalents of molecular
hydrogen, so it must have two  bonds. These  bonds
must be associated with two C=C double bonds (rather
than being associated with a C≡C triple bond), because
the carbon skeleton (which does not change during
hydrogenation) cannot support a triple bond:



A triple bond could not have been in the ring, because a
six-membered ring cannot support the linear geometry
required by the sp hybridized carbon atoms of a triple
bond. The other C-C bonds (outside the ring) can also
not support a triple bond (without violating the octet rule
by giving a carbon atom with five bonds). Therefore, α-
terpinene must have two double bonds.

(b) The ozonolysis products indicate how the molecule
must have been constructed, because ozonolysis breaks
C=C bonds into C=O bonds:



(c) This conjugated system is a homoannular diene:



In addition, there are four auxochromic alkyl groups,
highlighted here:



The calculation for max is shown here:


Base = 217
Additional double bonds = 0
Auxochromic alkyl groups = +20
Exocyclic double bonds = 0
Homoannular diene = +39
Total = 276 nm

16.61. The molecular formula (C7H10) indicates three
degrees of unsaturation (see Section 14.16). The
problem statement indicates that compound A will react
with two equivalents of molecular hydrogen (H2).
Therefore, we can conclude that compound A has two 
bonds, which accounts for two of the three degrees of
unsaturation. The remaining degree of unsaturation must
be a ring. Ozonolysis yields two products, which
together account for all seven carbon atoms:


Focus on the product with three carbonyl groups. Two
of them must have been connected to each other in
compound A (as a C=C bond), and the third carbonyl
group must have been connected to the carbon atom of
formaldehyde (CH2O). This gives two possibilities:
Either C1 was connected to C6 (and C2 was connected to
C7):
