ENERGY OPTIMIZATION OF TAPERED BUFFERS
FOR CMOS ON-CHIP SWITCHING POWER CONVERTERS

G.Villar, E. Alarcón, J. Madrenas, F. Guinjoan, A. Poveda

Department of Electronic Engineering
Universitat Politècnica Catalunya
08034 Barcelona, Spain.
e-mail: gvillar@eel.upc.edu

ABSTRACT
This work presents a model to determine the power
consumption of tapered buffers, validating its results with
transistor-level simulations. Focusing on their application as
gate drivers for high-frequency on-chip switching power
converters, the need for a fall-rise time evaluation at the
output of the tapered buffer will be discussed. Consequently,
output fall-rise time is modeled and validated by means of
simulations. Given the linear relation between the fall-rise
time and the switching losses of the power MOSFET, it is
proposed an optimized design procedure to concurrently
minimize the switching losses of the tapered buffer together
with the power MOSFET switching losses. The work concludes
with a design example for a 15000µm-width PMOS transistor,
presenting an optimum tapering factor of 21, for a specific
0.35µm standard CMOS technology.
1. INTRODUCTION
The current trend towards an increase of computing capability
in portable devices such as mobile phones, PDAs and personal
music players contrasts with the continuous reduction of their
volume and weight, as well as the demand for a longer
operating life. Similarly, in a lower level of abstraction, there
is a rather direct relation between the computing capability of
these devices and their power consumption, while the energy
management systems (battery and power supply circuits) are
key for efficiency and become a significant portion of the
overall volume and weight.
Therefore, efficient energy management circuits with reduced
volume and weight are required. The most efficient energy
conversion from a DC source (such as a battery) is achieved by
means of switching power converters, but their main drawback
is that they are bulky. Thus, the development of fully
integrated switching power converters is of key interest. On
the other hand, an expected high frequency operation is
derived from the reduction of their reactive components, which
is detrimental to high efficiency due to increased switching
losses that might preclude their practical application.
In figure 1 the basic scheme of a switching buck converter is
presented. The main conduction losses are due to parasitic
series resistances of the power transistors, the inductor and the
capacitor. The switching losses basically appear in the power
transistors (MOSFET in the case of standard CMOS
technologies), in the inductor (due to the magnetic hysteresis
cycle of the ferromagnetic core, if any), and notably in the
power gate drivers that activate the power transistor gates. Due
to high frequency operation, switching losses can not be
neglected. Since switching losses in the inductor depend on the
material that builds up the ferromagnetic core, which is not
available in a standard CMOS process, the presented work
does not take them into account and is focused towards the
minimization of switching losses in power transistors and their
associated drivers, by means of their concurrent design.
 L
C
iL
vout
+
-
iout
D
R
IV
ER

D
R
IV
ER

d(t)
BA
TT
ER
Y
switching
losses
conduction + switching
losses
joined
design

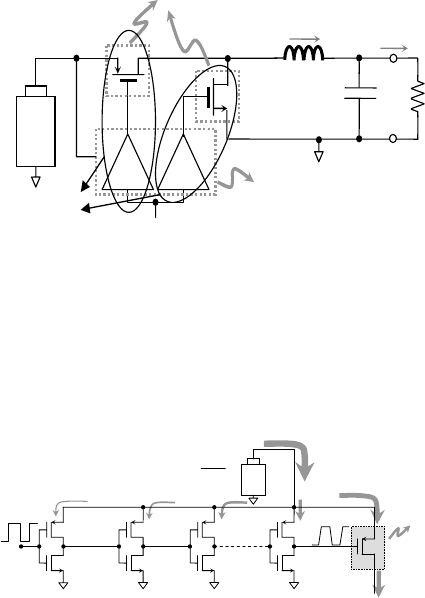

Fig.1.- Gate driver and power transistor switching losses
 in a buck converter
In standard CMOS processes, the power of the switching
signal is commonly amplified by a chain of digital inverters
having their transistors an increasing channel width. This is
known as tapered buffer structure (figure 2), being the tapering
factor (f) the value that scales the transistors channel width in
two consecutive inverters.
Eout
Ein
in
out
E
EefficiencyOverall =_
1 f f n-1 f n
vin Power
MOSFET
f 2

Fig. 2.- Overall energy consumption in a tapered buffer and
 the corresponding power MOSFET
Tapered buffers have been historically developed and analyzed
in the literature mainly in the field of drivers for digital IC
pads. In 1975 Lin and Linholm [1] proposed a delay model
based on the propagation delay between two minimum
inverters and Jaeger [2] found the optimum tapering factor that
minimized the total propagation delay. Afterwards, Nemes [3]
added the concept of parasitic delay of an inverter without
load. Subsequently, Li et al. [4] used the split-capacitor model
to determine the total propagation delay of a tapered buffer. In
1991, Sutherland [5] introduced the delay estimation by means
of the logical effort concept.
Although all these works deeply analyzed the propagation
delay of tapered buffers, energy consumption is of paramount
interest in high frequency switching power converters
application. Fewer works have studied the power consumption
of these circuits. Choi and Lee [6] proposed a capacitive
44530-7803-8834-8/05/$20.00 ©2005 IEEE.
approach based on the split-capacitor model. Cherkauer and
Friedman [7] added to the capacitive approach the short-circuit
current estimation based on the Sakurai short-channel α-power
model of transistor operation [8].
More recently, contributions about tapered buffer design
focused on their application to switching power converters
have been reported (Stratakos [9], Kursun [10]) proposing
tapering factor values that aim to reduce the corresponding
switching losses.
This work proposes an energy model, analogous to the Nemes
delay model [3], to determine the energy consumption of a
tapered buffer (section 2). In addition to this, in section 3 a
fall-rise time model of a tapered buffer is proposed, showing
that it is related to the switching losses of the power MOSFET.
A design procedure for the tapered buffer that concurrently
minimizes both driver losses and switching losses of power
MOSFET is discussed in section 4. Finally, a design example
for a given power MOSFET in a 0.35µm CMOS standard
technology is exposed in section 5.
2. PROPOSED SWITCHING ENERGY
LOSS MODEL
The proposed energy model is based on the amount of charge
required to change the state of a digital inverter. Charge is
observed rather than current because for switching losses
evaluation it is more convenient to model the energy (that
depends on voltage and charge) spent in each switching cycle
than to model the power, since the power changes with
switching frequency.
Both intrinsic charge and unitary effort charge concepts
(figure 3) are used to determine the total charge spent in a
switching cycle by a single stage of the inverter chain:
Switching charge = f i-1Qi +f i Qe1 (1)
1. Intrinsic charge (Qi): due to charge from Vss to Vdd in a
unitary inverter during a state transition.
2. Unitary effort charge (Qe1): due to the additional charge
from Vdd during the state transition, when a unitary
inverter is loaded with an identical inverter.
1
vin
tfri
Qi
1 1
vin
tfri+tfre1
Qi+ Qe1

Fig. 3.- Measurement tests of intrinsic and unitary effort charge,
 and fall-rise time
In expression (1), f represents the tapering factor, and i is the
exponent corresponding to the i-th stage, being the first one
i=1.
The total charge supplied from the voltage source to the whole
n-inverters chain is:
( )
f
ffQQfQ
f
Q
QQQQ
n
ei
n
i
i
e
i
nT −
−
+=





+=+++= ∑
= 1
1.... 1
1
121
(2)
And consequently the energy consumption is given by:
( )
1
1
1 −
−
+=
f
ffQQVE
n
eiDDdriver
 (3)
The most common definition of the tapering factor [3] is found
as the ratio between the equivalent input capacitance of the
first stage, and the equivalent input capacitance of the target
load (the power MOSFET gate in the application under study).
n
in
out
C
C
f =
 (4)
Because of the planar capacitor associated with the transistor
gate in standard CMOS technology, the output-to-input
capacitors ratioof the inverters chain can be expressed in
terms of the dimensions, and in turn in terms of their
corresponding channel widths, which is more useful in the
design step:
n
np
power
n
npox
powerox
WW
W
LWWC
LWC
f
)()( +
=
+
=
 (5)
being Wpower the channel width of the power MOSFET, and Wp
and Wn the channel width of the P-MOS and N-MOS of the
input inverter, respectively.
In order to validate the model, the results from equation (3) are
compared with transistor-level simulation results for a
particular 0.35 µm CMOS technology. In figure 4, the
evolution of energy consumption for several inverter chains
with different number of stages is shown. In all cases, the
output load is a 15000 µm – width PMOS transistor
(corresponding to a conduction resistance of 0.4Ω), and the
supply voltage is 3.6V (which is the nominal value of a Li-Ion
battery).
Simulation
results
Model
results

Fig. 4.- Switching energy loss of tapered buffers as a function of
 the number of stages (model and transistor-level simulation)
Note that in case the load input capacitance can not be easily
modeled (e.g. nonlinear capacitor), a more general definition
of the tapering factor can be used. In that case, the n-root of
the ratio between the charge spent to change the state of the
load device, and the unitary effort charge is computed:
n
e
out
Q
Qf
1
=
 (6)
3. PROPOSED FALL-RISE TIME
MODEL
Since current CMOS technology is able to operate at switching
frequencies (GHz) well above of those required by switching
power converters (even in case of high frequency designs to be
integrated, in the order of tens of MHz), the delay across the
whole tapered buffer becomes of low relative significance.
Consequently, taking into account the monotonic evolution of
4454
power consumption as the number of inverters in the chain
increase, it might seem that the optimum design consists in a
one-inverter tapered buffer.
Nevertheless there is an additional factor to take into account
in the design step. The switching losses of a power CMOS
transistor depend on the time spent to change its state (the
slower the transition occurs, the higher the switching losses
are), which directly depends on the tapered buffer design.
Thus, instead of delay time (td), the output fall-rise time (tfr)
should be considered when designing a power-aware tapered
buffer, assuming that both fall time and rise time are similar.
The fall-rise time of the last stage of a tapered buffer can be
approximated by means of the following expression:
1frefrifr fttt += (7)
where tfri is the fall-rise time of a single minimum sized
inverter without load, and tfre1 is the unitary effort fall-rise time
(additional transition time when a minimum inverter is
connected to another one), as seen in previous figure 3.
In figure 5 the proposed model results (7) and the transistor-
level simulation results are depicted, exhibiting a rather tight
matching (especially for larger number of stages).
Simulation
results
Model
results

Fig. 5.- Fall-rise time as a function of the number of stages
As shown in the previous picture, the tfr increases as the
number of inverters of the chain is reduced (and the
corresponding tapering factor increases). This trend becomes
clearer in the transient simulations of figure 8, where falling
edge of the output is presented for several inverters chains
(with the corresponding different tapering factors), keeping the
power MOSFET size constant.
4. ENERGY-AWARE OPTIMIZED
DESIGN OF A TAPERED BUFFER
DRIVING A POWER MOSFET
The presence of two opposed trends in the dependence of
power consumption and fall-rise time on the number of
inverters in the tapered buffer chain, suggests the existence of
an optimized design of the tapered buffer as regards energy
consumption (this is, when aiming to minimize the overall
switching losses encompassing tapered buffer and power
transistor).
To find this optimized design a relationship between fall-rise
time and switching losses in the power transistor is required.
From the 0.35 µm CMOS transistor-level simulation measures
a rather linear function that relates the fall-rise time and the
switching losses can be obtained (figure 6).
( ) min1min ·· tefrefritetefrteSWPowerMOS EfttKEtKE ++=+=−
 (8)
It should be noted that the Etemin and Kte terms are expected to
depend on the transistor size, the technological process and
switching conditions, and are obtained from simulation results.
Simulation
results
Model
results

Fig. 6.- Power MOSFET switching losses
as a function of the fall-rise time
Resorting to the modeling provided by equations (8) and (3),
an expression for the overall power consumption can be
obtained:
( ) ( )
f
ffQQVEfttKEEE
n
eiDDtefrefritedriverSWPowerMOST −
−
++++=+= − 1
1· 1min1
(9)
The simulation results showing the overall energy
consumption as well as the results derived from the model (9)
are shown in figure 7. It is observed the minimum generated
by the two opposed trends in power consumption, namely from
switching losses of the tapered buffer and from the power
MOSFET.
Simulation
results
Model
results
Qi = 12.25 fC
Qe1 = 9.7 fC
tfre1 = 40.2 ps
tfri = 47.6 ps
Kte = 64.83 mW
Etemin = 148.1 pJ

Fig. 7.- Total switching energy loss as a function of
 the number of stages of the tapered buffer
The last step is to substitute the tapering factor by its
expression in terms of number of inverters n (as given in (4)).
The number of inverters is preferred as a design variable
because it is constrained to natural values, whereas f varies
continuously. Finally, the optimized design of the tapering
buffer that not only minimizes its own losses, but minimizes
the power transistor switching losses hence achieving the
global goal is obtained as:







 +−
+
=
1
11 ))(1(
1log
)log(
frete
eiddfrete
opt
tK
QQaVtK
an

(10)
where a is the Cout/Cin ratio (or Wpower/(Wp+Wn)). The result of
expression (10) needs to be rounded to the nearest natural
value. Note that a complete design procedure would choose the
channel width for the power MOSFET that equalize
conduction and switching losses.
4455
5. DESIGN EXAMPLE
An optimized design of a tapered buffer acting as gate drive
for a power MOSFET in AMS 0.35µm CMOS standard
process is presented in the following. The output power device
is a PMOS transistor of 15000 µm /0.35 µm size, conducting a
100mA current in its on state.
Table 1 and table 2 present the values of all the required
parameters for the selected technology.
Wpower 15000µm Qi 12.25fC
Wp 1.2µm Qe1 9.72fC
Wn 0.4µm Kte 64.83mW
VDD 3.6V tfre1 40.2ps
Table 1.- Design parameters Table 2.-Model parameters
(obtained by simulation)
According to expression (10) and (5):
3172.3 ≅=optn (11)
08.21=optf (12)
Note that this factor is notably higher than those presented in
previous approach of tapered buffers operating as gate drivers
(Stratakos [9], Kursun [10]). The resulting transistor sizes of
all the inverters implementing the tapered buffer driving the
power MOSFET are summarized in table 3 (only the channel
width is shown, since the channel length is the same for all the
transistors and equal to 0.35µm).
Stage 1 2 3
PMOS 1.2 µm 25.3 µm 533.55 µm
NMOS 0.4 µm 8.45 µm 177.85 µm
Table 3.- Transistor’s channel width of the optimized tapered buffer
2-inverter E = 826 pJ
3-inverter E = 591 pJ
4-inverter E = 601 pJ
90%
10%

Fig. 8.- Transistor-level transient simulation results.
Instant dissipated power (tapered buffer + power MOSFET)
 and fall and rise edges of the output signal
Figure 8 depicts the fall and rise edges of the switching signal
at the power transistor’s gate, for the designed 3-stage tapered
buffer, and for the cases of 2-stage (f=96.8) and 4-stage
(f=9.8). The overall instantaneous power (power MOSFET +
tapered buffer) provided by the 3.6Vvoltage source, is
included.
From the previous results, it is observed that the best results as
far as energy consumption is concerned are obtained by means
of the 3-inverters tapered buffer, as predicted by (11).
Additional design considerations should take into account that
an increasing number of inverters increases the peak value of
instant power, thus compromising reliability, which makes the
3-stage design even better (in front of the 4-stage design).
6. CONCLUSIONS
A methodology to optimize the switching energy losses of
power MOSFETs and their associated tapered buffers,
targeting on-chip switching power converters application, has
been proposed. The presented approach is derived from the
modeling of the energy consumption of the tapered buffer by
itself, and the repercussion of its output fall-rise time upon the
switching losses of the power MOSFET. Both contributions to
total switching losses present opposed trends as a function of
the number of stages in the tapered buffers. Thus, a minimum
is found from transistor level simulations results which
coincides with that one arisen from the proposed model and
design procedure. A design example has been carried out to
validate the approach. The target load was a 15000µm-width
PMOS transistor, in a proof-of-concept 0.35µm CMOS
technology, and a tapering factor of 21 (for a 3-inverter chain)
has been found as the best trade-off between tapered buffer
switching losses and power transistor switching losses.
Acknowledgements. This work has partially funded by
projects TIC-2001-2183 and TIC-2001-2157-C02-01 from the
Spanish MCYT. Gerard Villar holds a CICYT Research
fellowship.
REFERENCES
[1] Hung Chang Lin, Loren W. Linholm, “An Optimized Output Stage
for MOS Integrated Circuits”, IEEE Journal Of Solid-State Circuits,
Vol. SC-10, No.2, pp. 106-109, April 1975
[2] Richard C. Jaeger, “Comments on “An Optimized Output Stage for
MOS Integrated Circuits””, IEEE Journal Of Solid-State Circuits, pp.
185-186, June 1975
[3] Mihaly Nemes, “Driving Large Capacitances in MOS LSI
Systems”, IEEE Journal Of Solid-State Circuits, Vol. SC-19, No.1, pp.
159-161, February 1984
[4] N.C. Li, Gene L. Haviland, A.A. Tuszynski, “CMOS Tapered
Buffer”, IEEE Journal Of Solid-State Circuits, Vol. 25, No.4, pp. 1005-
1008, August 1990
[5] Ivan E. Sutherland, Robert F. Sproull, “Logical Effort: Designing
for Speed on the Back of an Envelope”, Proceedings of the 1991
University of California/Santa Cruz conference on Advanced research
in VLSI, 1991.
[6] Joo-Sun Choi, Kwyro Lee, “Design of CMOS Tapered Buffer for
Minimum Power-Delay Product”, IEEE Journal Of Solid-State
Circuits, Vol. 29, No.9, pp. 1142-1145, September 1994
[7] Brian s. Cherkauer, Eby G. Friedman, “A Unified Design
Methodology for CMOS Tapered Buffers”, IEEE Transactions On
Very-Large Scale Integration (VLSI) Systems, Vol. 3, No. 1, pp. 99-
111, March 1995
[8] Takayasu Sakurai, A. Richard Newton, “Alpha-Power Law
MOSFET Model and its Applications to CMOS Inverter Delay and
Other Formulas”, IEEE Journal Of Solid-State Circuits, Vol. 25, No.2,
pp. 584-594, April 1990
[9] Anthony J. Stratakos, Seth R. Sanders, Robert W. Brodersen, “A
low-voltage CMOS DC-DC converter for a portable battery-operated
system”, IEEE Power Electronics Specialists Conference, Vol. 1, pp.
619 – 626, June 1994
[10] Volkan Kursun et al., “Low-Voltage-Swing Monolithic dc-dc
Conversion”, IEEE Transactions On Circuits And Systems, Vol. 51,
No. 5, pp. 241-247, May 2004


4456
