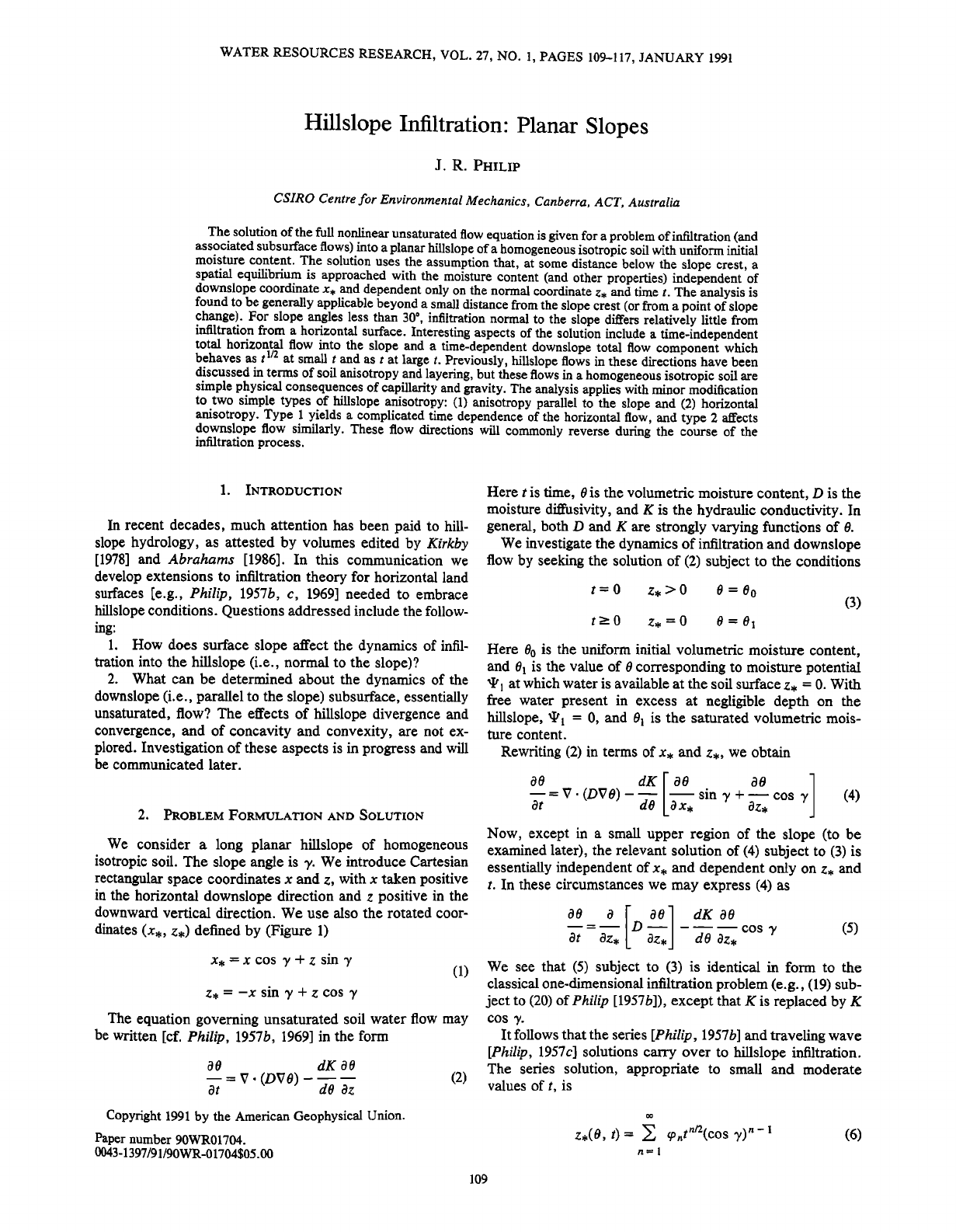

WATER RESOURCES RESEARCH, VOL. 27, NO. 1, PAGES 109-117, JANUARY 1991
Hillslope Infiltration' Planar Slopes
J. R. ProLIP
CSIRO Centre for Environmental Mechanics, Canberra, ACT, Australia
The solution of the full nonlinear unsaturated flow equation is given for a problem of infiltration (and
associated subsurface flows) into a planar hillslope of a homogeneous isotropic soil with uniform initial
moisture content. The solution uses the assumption that, at some distance below the slope crest, a
spatial equilibrium is approached with the moisture content (and other properties) independent of
downslope coordinate x, and dependent only on the normal coordinate z, and time t. The analysis is
found to be generally applicable beyond a small distance from the slope crest (or from a point of slope
change). For slope angles less than 30 ø , infiltration normal to the slope differs relatively little from
infiltration from a horizontal surface. Interesting aspects of the solution include a time-independent
total horizontal flow into the slope and a time-dependent downslope total flow component which
behaves as t 2/2 at small t and as t at large t. Previously, hillslope flows in these directions have been
discussed in terms of soil anisotropy and layering, but these flows in a homogeneous isotropic soil are
simple physical consequences of capillarity and gravity. The analysis applies with minor modification
to two simple types of hillslope anisotropy: (1) anisotropy parallel to the slope and (2) horizontal
anisotropy. Type 1 yields a complicated time dependence of the horizontal flow, and type 2 affects
downslope flow similarly. These flow directions will commonly reverse during the course of the
infiltration process.
1. INTRODUCTION
In recent decades, much attention has been paid to hill-
slope hydrology, as attested by volumes edited by Kirkby
[1978] and Abrahams [1986]. In this communication we
develop extensions to infiltration theory for horizontal land
surfaces [e.g., Philip, 1957b, c, 1969] needed to embrace
hillslope conditions. Questions addressed include the follow-
ing:
1. How does surface slope affect the dynamics of infil-
tration into the hillslope (i.e., normal to the slope)?
2. What can be determined about the dynamics of the
downslope (i.e., parallel to the slope) subsurface, essentially
unsaturated, flow? The effects of hillslope divergence and
convergence, and of concavity and convexity, are not ex-
plored. Investigation of these aspects is in progress and will
be communicated later.
2. PROBLEM FORMULATION AND SOLUTION
We consider a long planar hillslope of homogeneous
isotropic soil. The slope angle is T. We introduce Cartesian
rectangular space coordinates x and z, with x taken positive
in the horizontal downslope direction and z positive in the
downward vertical direction. We use also the rotated coor-
dinates (x,, z,) defined by (Figure 1)
x,=xcosy+zsiny (1)
z, = -x sin T + z cos T
The equation governing unsaturated soil water flow may
be written [cf. Philip, 1957b, 1969] in the form
oo dK oO
--= V. (DV0) (2)
Ot dO Oz
Copyright 1991 by the American Geophysical Union.
Paper number 90WR01704.
0043-1397/91/90 WR-01704505.00
Here t is time, 0 is the volumetric moisture content, D is the
moisture diffusivity, and K is the hydraulic conductivity. In
general, both D and K are strongly varying functions of 0.
We investigate the dynamics of infiltration and downslope
flow by seeking the solution of (2) subject to the conditions
t=0 z,>0 0=0o
(3)
t>-0 z, =0 0 = 0•
Here 00 is the uniform initial volumetric moisture content,
and 0• is the value of 0 corresponding to moisture potential
ß • at which water is available at the soil surface z, - 0. With
free water present in excess at negligible depth on the
hillslope, • = 0, and 0• is the saturated volumetric mois-
ture content.
Rewriting (2) in terms of x, and z,, we obtain
--=V-(DV0) sin + ... cos •, (4) at - •' T OZ.
Now, except in a small upper region of the slope (to be
examined later), the relevant solution of (4) subject to (3) is
essentially independent of x. and dependent only on z. and
t. In these circumstances we may express (4) as
--= D cos •/ (5)
Ot Oz. dO Oz.
We see that (5) subject to (3) is identical in form to the
classical one-dimensional infiltration problem (e.g., (19) sub-
ject to (20) of Philip [1957b]), except that K is replaced by K
cos T-
It follows that the series [Philip, 1957b] and traveling wave
[Philip, !957c] solutions carry over to hillslope infiltration.
The series solution, appropriate to small and moderate
values of t, is
z,(O,t) TM Z CPntn/2( cOS ,y)n-I
rt= l
(6)
109
110 PHILIP: HILLSLOPE INFILTRATION--PLANAR SLOPES
z ..... •"" :•' "' '•"' '"•' ' ;'•....'•';• .-•..
Fig. 1. Schematic figure illustrating Cartesian space coordinates
(x, z) and rotated coordinates (x., z.). Fig. 2. Schematic figure illustrating various flow velocity com-
ponents: u, horizontal inslope; v, vertical; Ud, downslope;
normal to slope.
The "coefficients" •o•(0), •o•.(0), etc., are precisely the func-
tions of 0 which enter the infiltration solution for a horizontal
soil surface [cf. Philip, 1957a, b, 1969].
Similarly, the large t traveling wave solution is
z.(O, t)= ut cos 'y + st(0) sec ¾ (7)
Here
Kl - K0
u = ---- (8)
0•- 00
is the penetration velocity of the traveling wave, and st(0) the
equation of the wave profile, for infiltration from a horizontal
surface [cf. Philip, 1957c, 1969]. K•, K0, denote K(O•) and
K(0o), respectively. We recall that
g(0) = - 00)
O, D dO ' (K! - K0)(0 - 00) - (K - K0)(0• - 00) (9)
where the upper limit Oa (near, but not at 01) may be fixed by
matching solutions (6) and (7) at relatively large t close to the
limits of useful convergence of (6) [Philip, 1957c].
It is useful to restate the solutions in terms of the vertical
space coordinate z, noting that it follows from the second of
(1) that
z = x tan 3,' + z, sec 3/
so we may express (6) and (7) in the alternative forms
z(0, t) = x tan 3' + •'• qo ntn/2(cos 'y) n - 2
n---1
(lO)
z(O, t) = x tan 3' + ut + •r(0) sec 2 y
Note that with 0 = 0(z,, t),
(11)
00 00 00 00
sin 7 .... cos 7 =-
oz. o x oz. oz
D = D sec 2
Oz. •zz 7
Equation (5) is thus equivalent to
(12)
m=_ D sec 2 7
Ot Oz dO Oz
(13)
3. STANDARD AND ROTATED COMPONENTS
OF UNSATURATED FLOW
There are two separate and distinct means of resolving
unsaturated flow associated with hillslope infiltration into
two orthogonal components. See Figure 2.
3.1. Vertical and Horizontal Components
First, we may simply use conventional resolution of the
flow velocity into horizontal and vertical components u and
v, respectively. It is convenient here to take u positive
directed into the hillslope. Then, in general,
u = D 00/0 x > 0 (14)
since, in general, O0/Ox > 0. That is, the horizontal flow
velocity is directed into the hillslope. Also, the vertical
component
v = K- D O0/Oz (15)
with v0, the value of v at the surface z = x sin 7, given by
vo = K• - (D O0/OZ)z = xsin •, (16)
Evidently, v0 is the vertical infiltration rate and is a volume
flux per unit horizontal plan area. Defined thus, v0 is the
infiltration rate of standard hydrologic practice.
3.2. Normal and Downslope Components
Students of hillslope hydrology, on the other hand, have
an interest in the components of unsaturated flow parallel to,
and normal to the slope, Ud and Vn. The use of n here should
not be confused with the suffix n in series, for example, in (6)
and (10). We take Ud positive in the downslope direction.
Then
Ud = --u cos 'y + v sin y (17)
Vn = u sin y + v cos 3' (18)
Using the first and second of (12), and combining (14), (15),
(16), (17), and (18) then gives
PHILIP: HILLSLOPE INFILTRATIONmPLANAR SLOPES 111
0o
u = -D • sin ?
Oz,
(19)
O0
v = K-D • cos ?
•,
[ vo=K1 - D
Z, ----O
(20)
cos ? (21)ua = K sin ? (22)
00
Vn = K cos 3'- D • (23)
Oz,
We see that Vno, the value of v n at the surface z, = 0, is given
by
Vno=Klcos3'- D (24)
Z,--0
The quantity V no is the infiltration rate normal to the slope
and is a volume flux per unit slope area.
4. CUMULATIVE INFILTRATION AND INFILTRATION
RATE FUNCTIONS
4.1. Cumulative Infiltration and
Infiltration Rate Normal to Slope
With the infiltration solution expressed in the form of
distance as a function of 0 and t, as by Philip [1957b, c, 1969]
and in (6) and (7) of this paper, the cumulative infiltration and
infiltration rate functions may be readily derived from the
material balance. It follows here from (6) that the cumulative
infiltration normal to the slope,
in(t) = •', •ntn/2(cos 3')n-• + Kot cos 3'
n--1
(25)
with
•n = qo n dO (26)
0
Differentiation with respect to t gives the infiltration rate
normal to the slope
n nt(n/2) - l(cos T) n- 1 + K0 cos ? Vn0(t) =
=1
(27)
The terms in K0 take account of the background flow at
infinity in the case where Ko is not negligibly small [cf.
Philip, 1957b, 1969].
We then have the truncated two-parameter expressions
[cf. Philip, 1954, 1957d, 1987], useful for small and moderate
values of t,
in(t) = St 1/2 + At cos 7 (28)
1
Vno(t) = •St -v2 + A cos 3' (29)
where the parameters S and A assume the values appropriate
to infiltration from a horizontal surface. That is, as usual, S
is the sorptivity [Philip, 1957d] defined by
S = • (30)
A = •2 + K0 (31)
These various relations are supplemented by the traveling
wave results, appropriate to large t, that
lira in(t) = K•t cos 3' + Z sec 3/ (32)
t--• o•
lim Vno(t)= Ki cos 3' (33)
The constant Z is the appropriate integral of • with respect to
0.
4.2. Vertical Cumulative Infiltration
and Infiltration Rate
It follows from (21) and (24) that
vo(t) = Vno(t) cos T + K1 sin 2 ?
(34)
i(t) = in(t) cos ? + Kit sin 2 y
Then application of (34) to (25), (27), (28), (29), (32), and (33)
gives the various relations for i(t) and v0(t):
i(t) = • CI>ntn/2(cos 3')n -b (K1 sin 2 3' + K0 ½OS 2 y)t
n=l
(35)
vo(t) = ? •cI>nt(n/2)-l(cos3')n+Klsin2y+Kocos2y =1
(36)
i(t) = St 1/2 cos 7 + (A cos 2 3' + Kl sin 2 y)t (37)
1
vo(t) = •St -•/2 cos 3' + A cos 2 3' + K1 sin 2 3/ (38)
lim i(t) = K•t + Z (39)
lim v0(t) = K• (40)
5. INTEGRATED HORIZONTAL AND DOWNSLOPE FLOWS
5.1. Integrated Horizontal Flow
The total horizontal flow per unit cross-slope length U has
interesting properties. We have that
U = udz = D•dz
sin 3' sin 3' 0 X
•o 00 •00x =- D dz, tan y = DdO tan 3'
Oz, o
(41)
The third equality depends on the relations (Oz,/OX)o =
-sin 3', (Oz,/OZ)o = cos ?.
There are some notable aspects of this result. First, since
112 PHILIP: HILLSLOPE INFILTRATIONmPLANAR SLOPES
f oø• D dO
is finite, U is finite even though the range of integration in z
is formally infinite. Second, we may rewrite (41) as
U = [O(01) - 6}(00)] tan )' (42)
where O is the well-known Kirchhoff potential. Equation
(41) thus reveals a new aspect of the physical significance of
©. Third, and most remarkably, U is independent of t. That
is, the rate of total horizontal discharge into the hillslope is
constant throughout the infiltration process.
This result is, at first glance, surprising, but it has a simple
mathematical-physical explanation. As the horizontal flow
velocity at fixed O, D 00/0 x, varies with t, the interval in z
over which it is integrated to yield the contribution to U
varies also with t and is proportional to Oz/00. Now O0/Ox is
proportional to O0/Oz., but Oz/00 is proportional to its recip-
rocal. The integral thus remains constant. Hence the contri-
bution to U from each interval in 0 is independent of t, so U
itself is independent of t.
The constant Y may be fixed by matching series solution (45)
at sufficiently large t.
We observe that the inequality
K-Ko O- 0o
Ki - Ko 01 - 0o (48)
which follows from the concavity of K(0) [cf. Philip, 1957c,
1969, 1987], yields a useful inequality for Ua. Putting (48)in
(43) gives
ua(t) -oo V no(O) t--•oo in(O)
Even for a slope angle as large as 30 ø, these ratios vary
only between 1 at small t and 0.866 at large t. The slope
produces a maximum 9ariation of about 13% and much
smaller variations for small and moderate t values. See Table
1. The slope effect is clearly minor.
6.1.2. Moisture profiles. The slope effect on the mois-
ture profiles is correspondingly small, but we remark on one
aspect. At small t the moisture profiles for y = 0 and )' > 0
are essentially identical. As t increases, moisture gradients
at the wetting front become marginally less steep for )' > 0
than for y = 0. In the limit of the traveling wave this effect
attains its extreme. The whole wave shape then becomes
less steep by the factor cos )' (= 0.866 for y = 30ø).
PHILIP: HILLSLOPE INFILTRATION--PLANAR SLOPES 113
TABLE 1. Effect of Slope Angle •/on Infiltration Rate vn0 and Cumulative Infiltration in, Computed for Yolo Light Clay
,
10 8 Vno, m s -I 10 3 i n, m
Percent Percent
t, s 103 •. ß = 0ø y = 30 ø Difference 7 = 0 ø • = 30 ø Difference
5,000 4.8 93.48 92.85 0.67 9.10 9.07 0.33
15,000 14.4 56.11 55.42 1.23 16.08 15.98 0.62
50,000 48 33.18 32.44 2.23 30.53 30.18 1.14
150,000 144 21.70 • 20.86 3.87 56.40 55.25 2.04
500,000 480 15.13 14.08 6.94 117.18 112.74 3.94
•o oo 12.30 10.65 13.40 13.40
6.2. Inslope Horizontal Flow
6.2.1. Horizontal flow velocity. It is of interest to ex-
amine the dependence of the horizontal flow velocity u on
both depth and time. Figure 3 shows the verticalprofiles of
u for the Yolo light clay at t = 4 x 10 4 s and 5 x 10 5 s, with
7 = 30ø- As t increases, u values tend to decrease but extend
to greater depths. The total flow rate U (proportional to the
shaded areas in Figure 3) is constant, independent of t.
6.2.2. Total horizontal flow rate. For the Yolo light
clay, (41) gives
U = 3.404 x 10 -8 tan 7 m 2 s -1 (52)
and its sorptivity
S = 1.254 x 10-4 m s - 1/2 (53)
108U (m s -1)
0.2
0.4
0.6
0.8
1.0
1.2
1.4
0 5 10 15
5x105S
0.48
t = 4x104 s
T = 0.0384
Fig. 3. Vertical profiles of horizontal flow velocity u, computed
for infiltration into Yolo lilght clay with slope angle y = 30 ø at t =
4 x 104 s and 5 x 10 ø s, that is, at r = 0.0384 and 0.48.
Dimensionless time r is defined in (58). The figure shows both the
vertical space coordinate z - x tan y and also the dimensionless
coordinate v, defined in (61). The shaded areas represent the
horizontal flow rate U. They are equal since U is constant, indepen-
dent of t.
[Philip, 1957b]. It follows that (52) is equivalent to
0.577 S 2
U .... tan y (54)
(0• - 00)
As White and Sully [1987] pointed out,
o• bS 2 DdO = • (55)
Ol-0o
o
where the numerical constant b lies in the range 0.5 --- b - 6.2!9 x 10 5
Figure 5 shows the Ua(t) function evaluated thus from (45)
and (47).
6.4. Generalizing the Results
It has been convenient to develop illustrative numerical
results for Yolo light clay with 7 = 30 ø. Obviously, the
magnitude of slope effects varies with 7, and the appropriate
1.2
1.0
0.8
0.4
0.2
2
i I ß
•cy s t (s)
i
o.4 0.6 0.8
lO
Fig. 5. Dynamics of the integrated downslope flow rate Ua,
calculated for Yolo light clay with slope angle 7 - 30ø- The figure
shows both Ua(t) and the dependence on r of the dimensionless
quantity Ua(01 - Oo)/(S 2 sin 7 cos 3').
equations in the foregoing express this in a direct and
transparent manner. Furthermore, we stress that, although
the numerical results are specific to Yo!o light clay, they
indicate to a good approximation the mode of behavior of
other soils. We may interpret the results more generally by
expressing them in dimensionless form, so that they yield
estimates relevant to any soil for which we know quantities
such as (K• - K0), (0• - 00), and S, as well as 7.
We thus make use of the characteristic infiltration time
tgrav, introduced by Philip [1969] and defined by
tgrav -- (57)
K1 - K0
Then the dimensionless time
•' = titgray (58)
Note that for the Yo!o light clay tgra v -- 1.04 x 106 s.
The analogous characteristic infiltration length
K1 - K0 S 2
lgrav = tgrav = (59)
Ol - 0o (K• - Ko)(O1 - Oo)
In the different context of linearized multidimensional infil.
tration, Philip [ 1986] used a characteristic infiltration length
Xgrav, set equal to 2a -• , the sorptive length [Philip, !983].
White and Sully [1987] have shown that in the present
symbolism
2a -• = 2 b Igrav (60)
Thus 2a -• and lgrav are of very similar magnitude, since 2b
tends to lie in the range 1 to 1.2 [White and Sully, 1987]. We
adopt the dimensionless space coordinates
z- x tan 7 z,
v = v. = (61)
/gray /gray
For the Yolo light clay, Igra v -- 0.497 m.
Values of r as well as of t are given in Table 1 and on
Figures 3-7; Figure 3 shows v as well as (z - x tan 7), and
Figure 4 shows v. as well as z.. These facilitate application
of the results to other soils.
In studying Ua(t) it is useful to work with the dimension-
less form
Ua( O • - 0 o) Ua( O • - 0 o)
(Kl - K0)2 sin y cos y tgra v S 2 sin 7 cos y
(62)
Note that it follows from (47) that
d [ Ua(01-0o) ] lim -- . = 1
•_•oodr S 2sinycos y
(63)
Figure 5, giving Ua(t), also shows the dimensionless Iorrn
Ua(Ol - 0o)/[S 2 sin y cos y] as a function of r.
Finally, we note that when U is expressed in the dimen-
sionless form U(O• - 00) (cot y)/S 2, it reduces simply to the
numerical constant b. This has the value 0.557 for the Yo10
light clay and tends to lie in the range 0.5 to 0.6 for soils of
interest in the present context.
PHILIP: HILLSLOPE INFILTRATION--PLANAR SLOPES 115
0.8
0.6
0.4
0.2
-0.2
-0.4
-0.6
-0.8
3O
2O
-1(
-21
-3O
2
4
0 2 4 6 8
1(• 5 t (s)
0 0.2 0.4 0.6 0.8
T
lO
Fig. 6. Type 1 anisotropy: Dynamics of integrated horizontal
flow rate U, computed for infiltration into soil with K(0) and D(0) as
for Yolo light clay in the normal direction but with/•K(0) and #D(0)
parallel to the slope, with slope angle 3/= 30 ø. The curves show
results for anisotropy/• = 0.5, 1, 2, and 4. The figure shows both
U(t) and the dependence on r of the dimensionless quantity U(01 -
00) (cot 7)/S 2. Compare section 6.3.
7. PHYSICAL DISCUSSION
1.0
0.5
2O
-0.5
-1.0
-1.5
0 2 4 6 8 !0
1(•5t (S) l
0 0.2 0.4 0.6 0.8 1.0
Fig. 7. Type 2 anisotropy: Dynamics of integrated downslope
flow rate Ua, computed for infiltration into soil with K(0) and D(0) as
for the Yolo light clay in the vertical direction but taK(O) and/.09(0)
in the horizontal, with slope angle 7 = 30 ø. The curves show results
for anisotropy/• = 0.5, 1, 2, and 4. The figure shows both Ua(t) and
the dependence on r of the dimensionless quantity Ud(01 - 0o)/(S 2
sin 7 cos y).
7.1. Applicability of the Analysis
Central to our relatively simple analysis of hillslope infil-
tration is the assumption that, beyond some point x. = X.
far enough down the slope from the crest x. = 0, spatial
equilibrium is attained with both the infiltration normal to the
slope, and the downslope subsurface flow, independent of x.
and with 0 = 0(z., t).
The material balance for 0 -• x, -• x.] requires that the
total net rate of inflow of water into the wetted region, less
the time rate of increase of the total water in the region,
equal the integrated downslope flow Ud(x.•). That is,
X, 1 Ud(X*l) : [VnO(X.) - Ko cos 7] dx,
d foX, 1 - • fo• Odz,dx, (64)
For spatial equilibrium, Ud(x, 1) = constant = Ua, indepen-
dent of x,]. This requires that U,i be a relatively small
constant difference between the two near-equal quantities
represented by the integrals in (64), each of which increases
in magnitude approximately as x, •. Accordingly, the equi-
librium requires that
fo X* UdKo)(in(t) - Kot cos y)
X. >> sin 7 (66)
(01 -- O0)(VnO(t) -- Ko cos y)
But, from (28) and (29),
i•(t) - Kot cos y
lim ...... t•o vno(t) - Ko cos • 2t (67)
and, from (32) and (33),
in(t) - Ko t cos y
lim ,
t•o Vno(t) - Ko cos ?
= t (68)
It follows that the right side of (65) varies from 2(K• - Ko)t
(sin 7)/(0] - 00) at small t to (K• - Ko)t (sin y)/(0• - 00) at
large t. It is thus conservative to use the inequality
X, >> 2(K1 - Ko)t (sin y)/(01 -- 00) (69)
116 PHILIP: HILLSLOPE INFILTRATION--PLANAR SLOPES
We adopt, as the practical criterion for applicability of the
analysis,
X. > 40(K1 - Ko)t (sin 3/)/(0• - 00) (70)
For our numerical example this gives
X, > 9.54 x 10 -6t m (71)
with t in seconds. We see that only the top 0.95 m of the
slope is excluded for t = 105 s and only 9.54 m for t = 106 s.
We note the general result that for t = tgra,,, (70) becomes
just
X, >- 40/gray sin 3/ (72)
These criteria indicate that our analysis is generally appli-
cable beyond a small distance from a slope crest (or below a
point of slope change). This small distance is roughly pro-
portional to t and may typically reach about 10 m at an
advanced stage of the infiltration event. Note that/gray tends
to lie in the range 0.1 to 2 m [cf. White and Sully, 1987].
7.2. Resolving the Flow into Components
We have treated at some length the distinction between,
on the one hand, horizontal and vertical flow velocity
components u and v and components parallel and normal to
the slope, ud and Vn. Stressing this distinction and evaluating
the various components is not a vacuous pedantic exercise.
Indeed, the value of certain hillslope hydrology studies has
been decreased by confusion on this matter. For example,
Harr [1977] discussed hillslope seepage in terms of the
vertical flow velocity (our v) and downslope flow velocity
(our u d). He calculated the resultant flow through a false
analogy with the parallelogram of forces. His work, which
centered on the magnitude and direction of the resultant
flow, is thus vitiated. Various subsequent writers on hills-
lope infiltration cite this study uncritically.
7.3. Physical Features of Hillslope Infiltration
Some simple general statements can be made about the
physical basis of the differences between hillslope infiltration
and infiltration from a horizontal surface. These involve
reference to the physical basis of infiltration dynami. cs,
namely, the interaction between capillary and gravitational
effects [Philip, 1969].
For infiltration normal to the slope, capillary effects are
essentially the same as for a horizontal surface, since X70 is
normal to the slope, but the component of gravity normal to
the slope is reduced by the factor cos y, and gravitational
effects are reduced accordingly. On the other hand, for
vertical infiltration from a sloping surface it is the capillary
effects which are reduced by the factor cos % while gravi-
tational effects remain essentially as for the horizontal sur-
face. These differences find expression in the different forms
of equations such as (28) and (29) for normal infiltration and
(37) and (38) for vertical infiltration and in the difference of
each of these from equations for the horizontal surface
(given by putting y = 0).
7.4. Inslope Horizontal Flow
A superficially remarkable result of the analysis is the
uncovering of the horizontal flow component into the hill-
TABLE 3. Limiting Power Dependence on t of Various
Hillslope Infiltration Quantities
Power of t in Power of t in
Quantity Small t Limit Large t Limit
vno - 1/2 0
in 1/2 1
U 0 0
Ud 1/2 1
slope. Further interesting aspects are that the integrated flow
rate U is constant, independent of t, and is proportional to
ølD dO (compare (41)). These results are, however, ele- J'00
mentary consequences of the fact that, on the hillslope,
capillary effects have a component directed horizontally into
the slope.
So far as I can ascertain, previous hillslope studies [e.g.,
Zaslavsky and Rogowski, 1969; Zaslavsky and Sinai, 1981;
McCord and Stephens, 1987] have discussed horizontal flow
components in terms of anisotropy or soil layering. A point
of interest here is that our analysis is for a homogeneous
isotropic soil. We need invoke neither anisotropy nor layer-
ing to produce in-slope horizontal flow. In section 8 we
address briefly modifications to the present result conse-
quent on anisotropy.
7.5. Downslope Flow
We have seen that, for a homogeneous isotropic soil, there
is a time-dependent downslope flow Ue proportional to t m
in the small t limit and to t in the large t limit. This flow is the
elementary physical consequence of the fact that there is a
downslope component of gravity.
Downslope flow has been described previously [e.g.,
Zaslavsky and Rogowski, 1969; Zaslavsky and Sinai, 1981;
McCord and Stephens, 1987] in the context of anisotropy or
soil layering; but here also neither is needed. Gravity suf-
fices. We see in section 8, however, that anisotropy may
complicate the dynamics of U•(t) considerably.
7.6. Overall Dynamics
The foregoing analysis yields, inter alia, the limiting power
dependence on t of various flows associated with hillslope
infiltration, for both small and large t. This offers a useful
overall picture of the dynamics of the various processes and
is presented in Table 3.
8. EFFECTS OF ANISOTROPY
With minor modifications, the foregoing analysis applies
also to two types of anisotropic hillslope. For both types the
anisotropy/x is assumed to be constant, independent of the
moisture potential. In type 1, anisotropy parallel to the
hillslope, we take K(O) as the component of the conductivity
tensor normal to the hillslope and/xK(0) as the component
parallel to the slope. In type 2, horizontal anisotropy, we
adopt K(0) as the vertical component of the conductivity and
ttK(O) as the horizontal component. For each type the
anisotropy of D is the same as for K.
PHILIP: HILLSLOPE INFILTRATION---PLANAR SLOPES 117
8.1. Type 1: Anisotropy Parallel to the Slope
In this case, (22) is replaced by
ua =/xK sin ? (73)
but (23) is unchanged. It follows at once that
ua(/x) =/xua(1) Ua(tx) =/xUa(1) (74)
where ua(/x), Ua(/x) signify values for anisotropy/x. Criterion
(70) for applicability of the analysis becomes
X, >- 40/x(Kl - Ko)t (sin 7)/(01 - 00) (75)
The effect of anisotropy on downslope flow is simply to
magnify it by the factor/x. Equations (5) and (13) remain
unchanged as the partial differential flow equations in terms
of z, and z, respectively, and solutions such as (6) and (7)
still apply. The results for Vno and in are unaltered.
On the other hand, type 1 anisotropy changes the charac-
ter of the dynamics of horizontal flow. Combining (17), (18),
(23), and (73), we find
O0
u =-D sin ,/- (/x - 1)K sin y cos ¾ (76)
Oz,
Whereas for/x = 1, u > 0, we find that for/z > 1, u changes
sign as both t and z vary. Details are easily inferred from
(76), but we concentrate here on the dynamics of U(t). We
note that to make our definition of U consistent with that of
Ua (in subtracting out background seepage associated with
initial hillslope moisture content) we require here that
U = [u + (/z - 1)K0 sin y cos y] dz (77)
sin •,
Then (76) gives
U(/x) = U(1) - (/x - 1)Ua(1) (78)
where U(/x)denotes U for anisotropy tz. Whereas U was
constant and independent of t for /x = 1, it becomes
time-dependent for/x • 1. Figure 6 compares the dynamics
of U(t) for/x = 0.5, 1, 2, and 4.
8.2. Type 2' Horizontal Anisotropy
In this case (19) is replaced by
00
u = - It/) sin y (79)
but (20) is unchanged. Then
u(/x) =/au(1) U(/x) =/xU(1) (80)
where u(/x) denotes u for anisotropy •. The effect of type 2
anisotropy on horizontal flow is simply to magnify it by the
factor •. U remains a constant, independent of t.
On the other hand, putting (78) and (20) into (17) gives
00
u• = Ksin ,/+ (/a - 1)D • sin ,/cos ,/ (81)
Oz.
Whereas for Ix = 1, ue is inherently positive, for/a > I it may
change sign as both t and z vary. Details may be found from
(81), but it suffices here to examine the dynamics of Ua(t). It
follows from (81) that
Ua(/x) Ua(1) (tt 1) U(1) cos 2 = - - y (82)
Figure 7 compares the dynamics of Ua(t) for/a = 0.5, 1, 2, 4.
Finally we note that type 2 anisotropy changes the partial
differential flow equations (5) and (13) to
•=• D (•sin 2y+ cos 2•)
at Oz, dO Oz,
cos 'y
(83)
- D (/.• tan 2 y + 1) dO Oz (84) ot oz
Our established methods of solving equations of this form
apply.
Acknowledgments. I am grateful to my colleague I. White for
helpful discussions. I also thank the Australian Water Research
Advisory Council for the Eminent Researcher Fellowship which
supported this work.
REFERENCES
Abrahams, A.D. (Ed.), Hillslope Processes, Allen and Unwin,
Boston, 1986.
Harr, R. D., Water flux in soil and subsoil on a steep forested slope,
J. Hydrol., 33, 37-58, 1977.
Kirkby, M. J. (Ed.), Hillslope Hydrology, John Wiley, New York,
1978.
McCord, J. T., and D. B. Stephens, Lateral moisture flows beneath
a sandy hillslope without an apparent impeding layer, Hydrol.
Processes, 1,225-238, 1987.
Moore, R. E., Water conduction from shallow water tables, Hilgar-
dia, 12,383-426, 1939.
Philip, J. R., Some recent advances in hydrologic physics, J. Inst.
Eng. Aust., 26, 255-259, 1954.
Philip, J. R., Numerical solution of equations of the diffusion type
with diffusivity concentration-dependent, II, Aust. J. Phys., 10,
29-42, 1957a.
Philip, J. R., The theory of infiltration, 1, The infiltration equation
and its solution, Soil Sci., 83, 345-357, 1957b.
Philip, J. R., The theory of infiltration, 2, The profile at infinity, Soil
Sci., 83, 435-448, 1957c.
Philip, J. R., The theory of infiltration, 4, Sorptivity and algebraic
infiItration equations, Soil Sci., 84, 257-264, 1957d.
Philip, J. R., Theory of infiltration, Adv. Hydrosci., 5, 215-296,
1969.
Philip, J. R., Infiltration in one, two, and three dimensions, in
Advances in Infiltration, Proceedings of the National Conference
on Advances in Infiltration, Chicago, U.S.A., pp. 1-13, American
Society of Agricultural Engineers, St. Joseph, Mich., 1983.
Philip, J. R., Linearized unsteady multidimensional infiltration,
Water Resour. Res., 22, 1717-1727, 1986.
Philip, J. R., The infiltration joining problem, Water Resour. Res.,
23, 2239-2245, 1987.
White, I., and M. J. Sully, Macroscopic and microscopic capillary
length and time scales from field infiltration, Water Resour. Res.,
23, 1514-1522, 1987.
Zaslavsky, D., and A. S. Rogowski, Hydrological and morphologi-
cal implications of anisotropy and infiltration in soil profile devel-
opment, Soil Sci. Soc. Am. Proc., 33, 594-599, 1969.
Zaslavsky, D., and G. Sinai, Surface hydrology, 1, Explanation of
phenomena, J. Hydraul. Div. Am. Soc. Civ. Eng., 107, 1-16,
1981.
J. R. Philip, Centre for Environmental Mechanics, CSIRO, GPO
Box 821, Canberra, ACT 2601, Australia.
(Received January 29, 1990;
revised June 5, 1990'
accepted June 20, 1990.)
