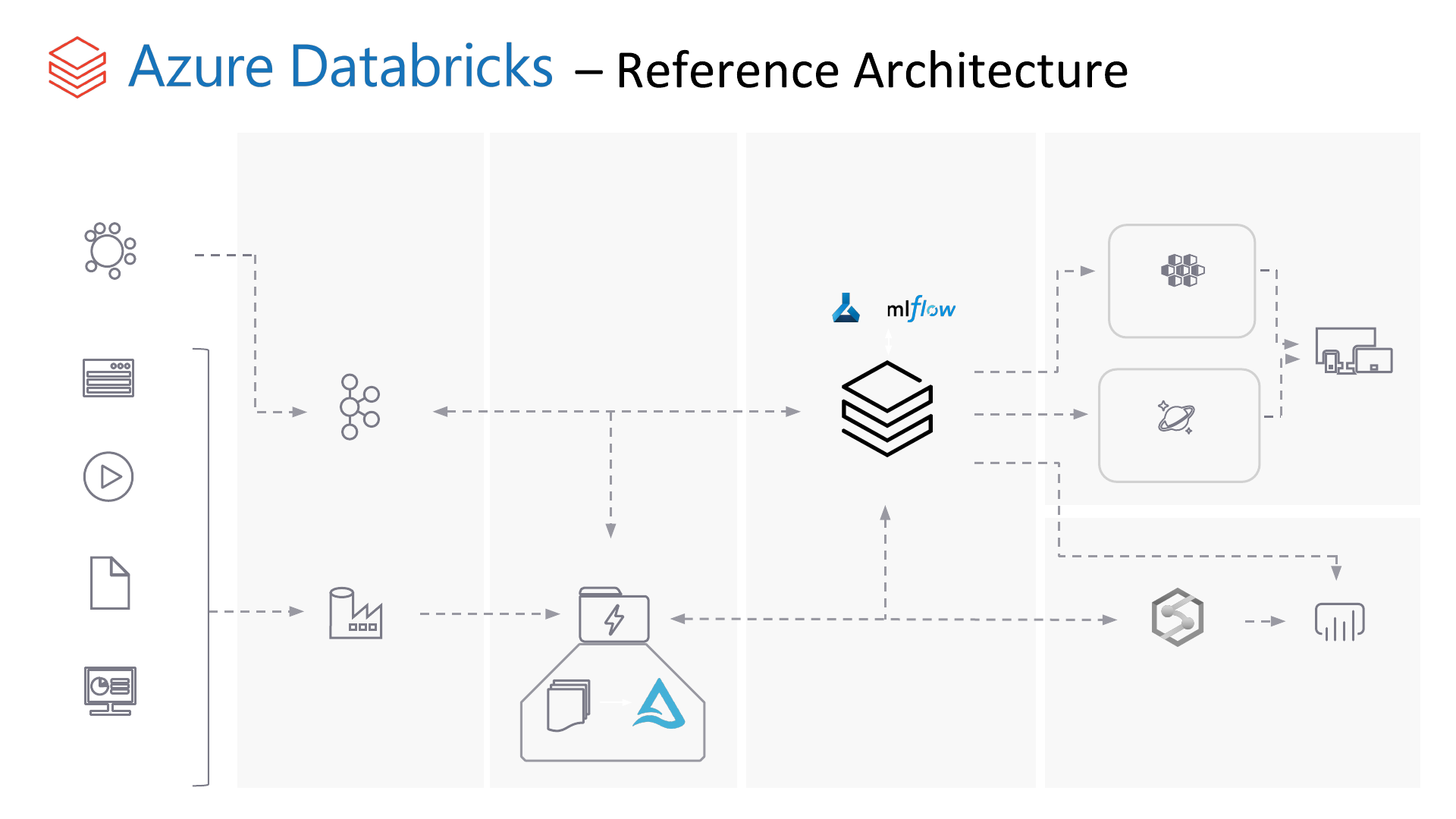

Azure Databricks Reference Architecture

Prévia do material em texto

ServeIngest Store Prep and Train
Azure Data Lake Storage
Logs (unstructured)
Azure Data Factory
Azure Databricks
Media (unstructured)
Files (unstructured)
Business/custom apps
(structured)
Power BI
Sensors and IoT
(unstructured)
Azure Event Hub
Azure IoT Hub
Kafka
+
Apps
Azure Kubernetes
Service
Model Serving
Cosmos DB,
SQL DB
Operational Databases
Ad-hoc
Analysis
Delta FormatRaw Format
Azure Synapse
Data Warehouse
Polybase
Step 2
Use Azure Databricks to
1. Combine streaming and
batch
2. Save data as Delta
format
Delta Format
(Bronze Table)
Cosmos DB Apps
Step 3
Use Azure Databricks to
1. Join, enrich, clean, transform data
2. Develop, train, and score ML
models with Azure ML + MLFlow
Azure Data Lake Storage
Delta Format
(Silver Table)
+
Delta Format
(Gold Table)
Step 4
Load data into serving layers like
1. SQL Data Warehouse for
enterprise BI scenarios.
2. Cosmos DB for real-time Apps
Logs (unstructured)
Azure Data Factory
Media (unstructured)
Files (unstructured)
Business/custom apps
(structured)
Sensors and IoT
(unstructured)
Azure Event Hub
Azure IoT Hub
Kafka
Raw
Format
Step 1
Load raw data to Azure Data
Lake Storage
Power BIAzure Synapse
Data Warehouse
