Design via State Space
SOLUTION TO CASE STUDY CHALLENGE
Antenna Control: Design of Controller and Observer

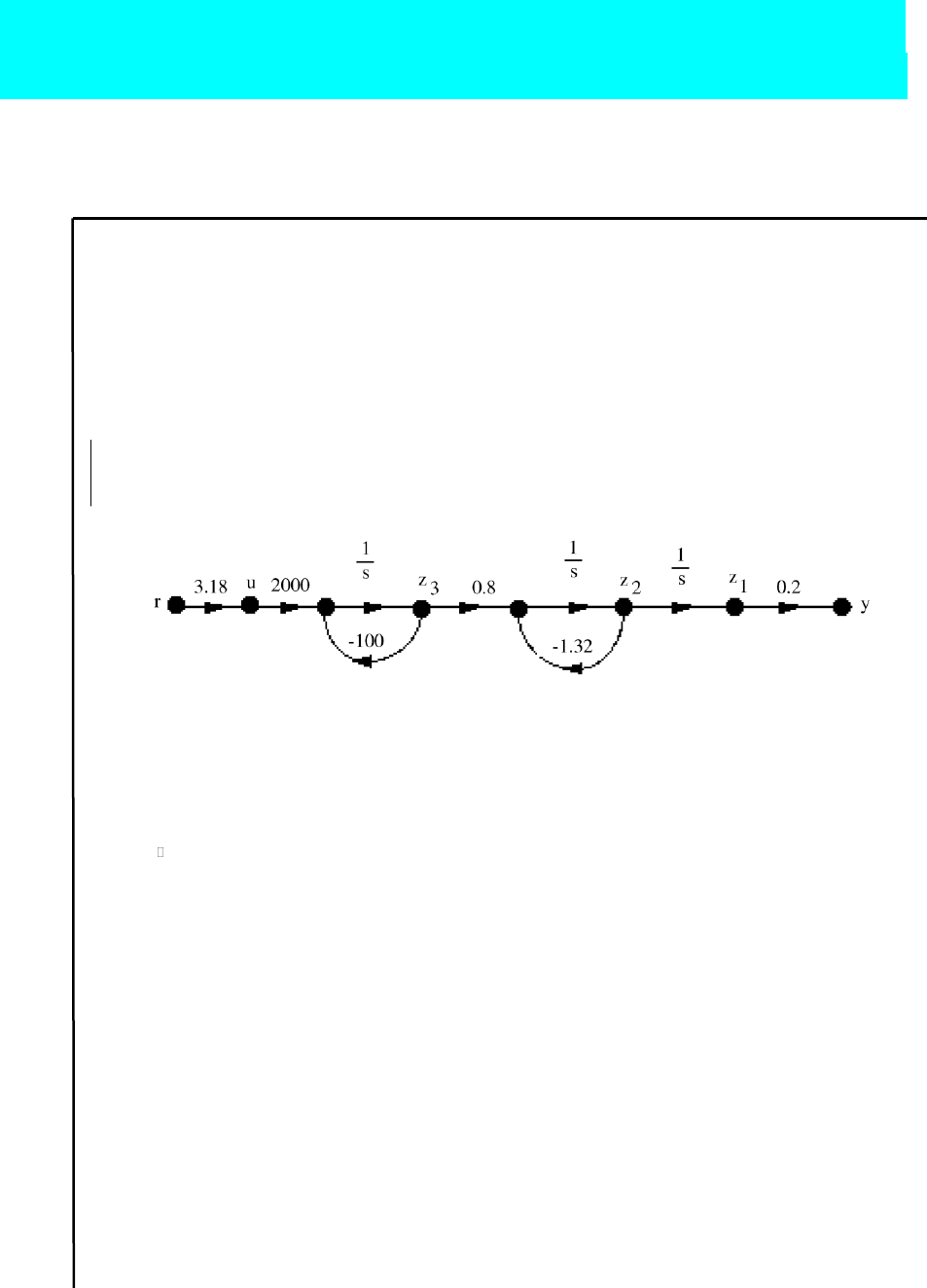

a. We first draw the signal-flow diagram of the plant using the physical variables of the system
as state variables.
Writing the state equations for the physical variables shown in the signal-flow diagram, we
obtain
0 1 0 0
0 -1.32 0.8 0 u ; y [0.2 0 0]
0 0 -100 2000
z z z
The characteristic polynomial for this system is s3 + 101.32s2 + 132s + 0. Hence, the A and B
matrices of the phase-variable form are
0 1 0 0
0 0 1 0
0 -132 -101.32 1
Ax Bx
Writing the controllability matrices and their determinants for both systems yields
12-2 Chapter 12: Design via State Space
Controllability Matrix of z Controllability Matrix of x
0 0 1600 0 0 1
0 1600 -162112 0 1 -101.32
2000 -200000 20000000 1 -101.32 10133.7424
-5.12 E 09 -1
CMz CMx
Det(CMz) Det(CMx)
where the system is controllable. Using Eq. (12.39), we find the transformation matrix and its inverse
to be
Transformation Matrix z Px
1600 0 0 0.000625 0 0
0 1600 0 0 0.000625 0
0 2640 2000 0 -0.000825 0.0005
P PINV
The characteristic polynomial of the phase-variable system with state feedback is
s3 + (k3 + 101.32)s
2 + (k2 + 132)s + (k1 + 0)
For 15% overshoot, Ts = 2 seconds, and a third pole 10 times further from the imaginary axis than
the dominant poles, the characteristic polynomial is
(s + 20)(s2 + 4s + 14.969) = s3 + 24s2 + 94.969s + 299.38
Equating coefficients, the controller for the phase-variable system is
Controller for x
299.38 -37.031 -77.32
Kx
Using Eq. (12.42), the controller for the original system is
Controller for z
0.1871125 0.04064463 -0.03866
Kz
b. Using Kz, gain from m = - 0.1871125 (including gear train, pot, and operational amplifier); gain
from tachometer = - 0.04064463; and gain from power amplifier output = 0.03866.
Solution to Case Study Challenge 12-3
c. Using the original system from part (a) and its characteristic polynomial, we find the observer
canonical form which has the following A and C matrices:
-101.32 1 0
-132 0 1
0 0 0
1 0 0
Ax
Cx
Writing the observability matrices and their determinants for both systems yields
Observability Matrix of z Observability Matrix of x
0.2 0 0 1 0 0
0 0.2 0 -101.32 1 0
0 -0.264 0.16 10133.7424 -101.32 1
0.0064 1
OMz OMx
Det(OMz) Det(OMx)
where the system is observable. Using Eq. (12.89), we find the transformation matrix and its inverse to be
Transformation Matrix z Px
5 0 0 0.20 0.00 0.00
-506.6 5 0 20.26 0.20 0.00
62500 -625 6.25 26.40 20.00 0.16
P PINV
The characteristic polynomial of the dual phase-variable system with state feedback is
s3 + (l1 + 101.32)s
2 + (l2 + 132)s + (l3 + 0)
12-4 Chapter 12: Design via State Space
For 10% overshoot, n = 10 14.969 = 38.69 rad/s, and a third pole 10 times further from the
imaginary axis than the dominant observer poles, the characteristic polynomial is
(s + 228.72)(s2 + 45.743s + 1496.916) = s3 + 274.46s2 + 11959s + 3.4237x105
Equating coefficients, the observer for the observer canonical system is
Observer for x
173.14
11827
342370
Lx
Using Eq. (12.92), the observer for the original system is
Observer for z
865.7
-28577.724
5569187.5
Lz
d.
e.
Program:
'Controller'
Solution to Case Study Challenge 12-5
A=[0 1 0;0 -1.32 0.8;0 0 -100];
B=[0;0;2000];
C=[0.2 0 0];
D=0;
pos=input('Type desired %OS ');
Ts=input('Type desired settling time ');
z=(-log(pos/100))/(sqrt(pi^2+log(pos/100)^2));
wn=4/(z*Ts); %Calculate required natural
%frequency.
[num,den]=ord2(wn,z); %Produce a second-order system that
%meets the transient response
%requirements.
r=roots(den); %Use denominator to specify dominant
%poles.
poles=[r(1) r(2) 10*real(r(1))];
%Specify pole placement for all
%poles.
K=acker(A,B,poles)
'Observer'
pos=input('Type desired %OS ');
z=(-log(pos/100))/(sqrt(pi^2+log(pos/100)^2));
wn=10*wn %Calculate required natural
%frequency.
[num,den]=ord2(wn,z); %Produce a second-order system that
%meets the transient response
%requirements.
r=roots(den); %Use denominator to specify dominant
%poles.
poles=[r(1) r(2) 10*real(r(1))];%Specify pole placement for all
%poles.
l=acker(A',C',poles)'
Computer response:
ans =
Controller
Type desired %OS 15
Type desired settling time 2
K =
0.1871 0.0406 -0.0387
ans =
Observer
Type desired %OS 10
wn =
38.6899
l =
12-6 Chapter 12: Design via State Space
1.0e+006 *
0.0009
-0.0286
5.5691
ANSWERS TO REVIEW QUESTIONS
1. Both dominant and non-dominant poles can be specified with state-space design techniques.
2. Feedback all state variables to the plant's input through a variable gain for each. Decide upon a closed-
loop characteristic equation that has a pole configuration to yield a desired response. Write the
characteristic equation of the actual system. Match coefficients and solve for the values of the variable
gains.
3. Phase-variable form
4. The control signal developed by the controller must be able to affect every state variable.
5. If the signal-flow diagram is in the parallel form, which leads to a diagonal system matrix, controllability
can be determined by inspection by seeing that all state variables are fed by the control signal.
6. The system is controllable if the determinant of the controllability matrix is non-zero.
7. An observer is a system that estimates the state variables using information from the output of the actual
plant.
8. If the plant's state-variables are not accessible, or too expensive to monitor
9. An observer is a copy of the plant. The difference between the plant's output and the observer's output is
fed back to each of the derivatives of the observer's state variables through separate variable gains.
10. Dual phase-variable
11. The characteristic equation of the observer is derived and compared to a desired characteristic equation
whose roots are poles that represent the desired transient response. The variable gains of each feedback path
are evaluated to make the coefficients of the observer's characteristic equation equal the coefficients of the
desired characteristic equation.
12. Typically, the transient response of the observer is designed to be much faster than that of the controller.
Since the observer emulates the plant, we want the observer to estimate the plant's states rapidly.
13. Det[A-BK], where A is the system matrix, B is the input coupling matrix, and K is the controller.
14. Det[A-LC], where A is the system matrix, C is the output coupling matrix, and L is the observer.
15. The output signal of the system must be controlled by every state variable.
16. If the signal-flow diagram is in the parallel form, which leads to a diagonal system matrix, observability
can be determined by inspection by seeing that all state variables feed the output.
17. The system is observable if the determinant of the observability matrix is non-zero.
Solutions to Design Problems 12-7
